Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Air Conditioning (A/C) Compressor Inlet Line - 3.0L EcoBoost
Removal
NOTICE:
During the removal of components, cap, tape or otherwise
appropriately protect all openings to prevent the ingress of dirt or
other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
-
Recover the refrigerant. Refer to the appropriate Recovery procedure in Group 412.
-

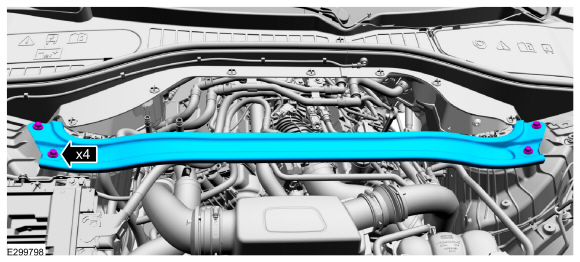

Remove the bolts and the suspension support bar.
Torque:
22 lb.ft (30 Nm)
-
Remove the PCM.
Refer to: Powertrain Control Module (PCM) (303-14A Electronic Engine Controls - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
-
Disconnect the harness retainers. Remove the bolts and the PCM mounting bracket.
Torque:
55 lb.in (6.2 Nm)
-

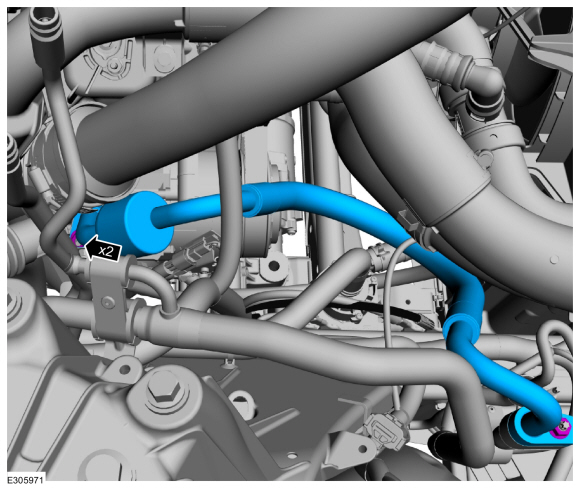

Remove the retainers and the A/C compressor inlet line.
-
Make sure to cover any open ports to prevent debris from entering the system.
Torque:
159 lb.in (18 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTICE:
Only use the specified material to lubricate the seals.
Install and lubricate new O-ring seals. Refer to the appropriate Specifications in Group 412.
-
Lubricate the refrigerant system with the correct amount
of clean PAG oil. Refer to the appropriate Refrigerant Oil Adding
procedure in Group 412.
