Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - F Clutch
Overview
Item
|
Description
|
1
|
SSF
|
2
|
F clutch control valve
|
3
|
F clutch latch valve
|
4
|
F clutch apply circuit
|
5
|
F clutch piston
|
6
|
F clutch assembly
|
7
|
Ring gear No. 4
|
8
|
Planetary carrier No. 1
|
Ring
gear No. 4 is mechanically connected to planetary carrier No. 1 and
connected to the F clutch. When the F clutch applies, the ring gear No. 4
may be connected to ring gear No. 2 through the C clutch. Ring gear No.
4 may also connect to planetary carrier No. 3 through the D clutch.

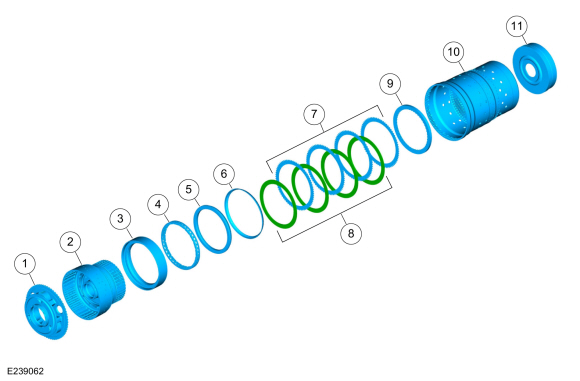

F Clutch Exploded View
Item
|
Description
|
1
|
Planetary carrier No. 1
|
2
|
CDF clutch cylinder
|
3
|
F clutch piston
|
4
|
F clutch piston return spring
|
5
|
F clutch balance dam
|
6
|
F clutch apply ring
|
7
|
F clutch friction plates
|
8
|
F clutch steel plates
|
9
|
F clutch pressure plate
|
10
|
Cylinder (clutch and planetary container)
|
11
|
Ring gear No. 4
|

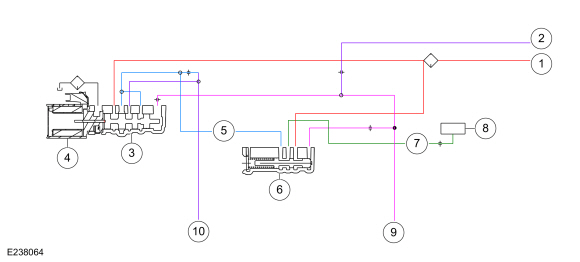

F Clutch Hydraulic Circuits
Item
|
Description
|
1
|
Line pressure
|
2
|
Pump output
|
3
|
F clutch control valve
|
4
|
SSF
|
5
|
Control pressure to latch valve
|
6
|
F clutch latch valve
|
7
|
Apply pressure to mechanical F clutch
|
8
|
Mechanical F clutch
|
9
|
Elevated exhaust pressure
|
10
|
Clutch exhaust
|
F Clutch Hydraulic Operation
Line pressure is supplied to the F clutch control valve and the F clutch latch valve. As SSF
turns on, it moves the control valve allowing regulated line pressure
to flow to the F clutch latch valve and then to the mechanical F clutch.
When the regulated line pressure in the F clutch control circuit
reaches approximately 689 kPa (100 psi), the mechanical F clutch is
fully applied. The pressure in the F clutch control circuit moves the F
clutch latch valve to the left which allows line pressure to hold the
mechanical F clutch applied.

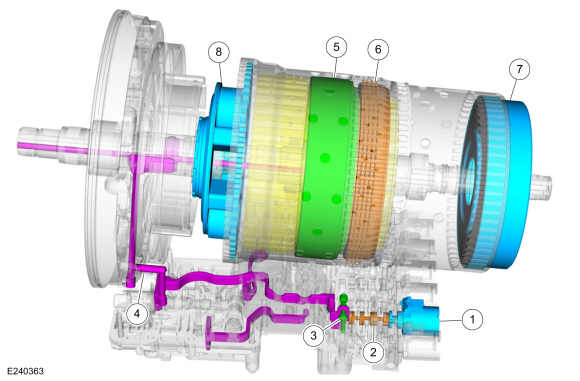

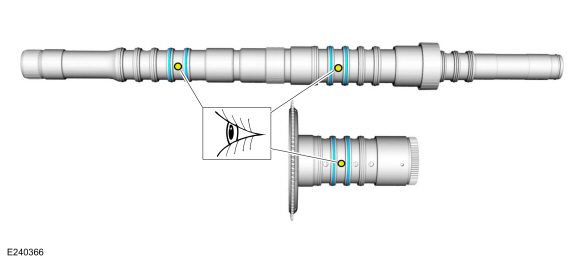

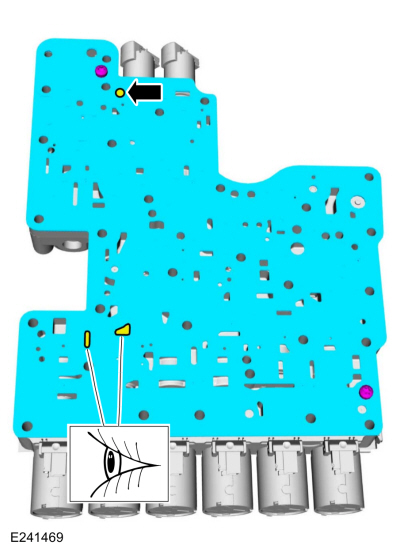

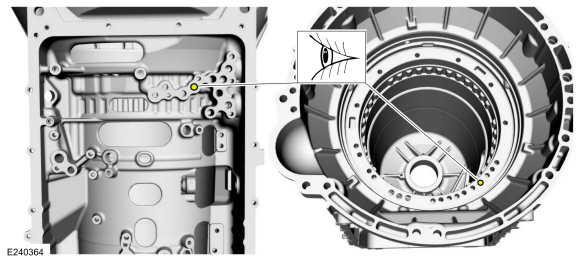

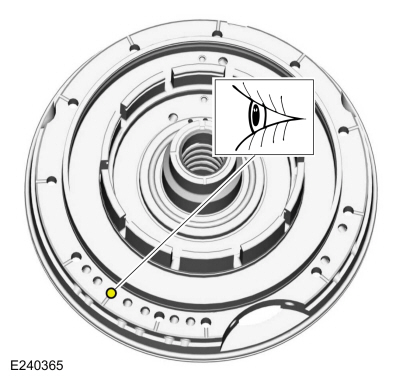

F Clutch Hydraulic Passages
.jpg)
Overview
Item
Description
1
SSE
2
E clutch control valve
3
Clutch gain control valve
4
E clutch apply circuit
5
E clutch piston
6
E clutch assembly
7
Shell and sun gear No...
