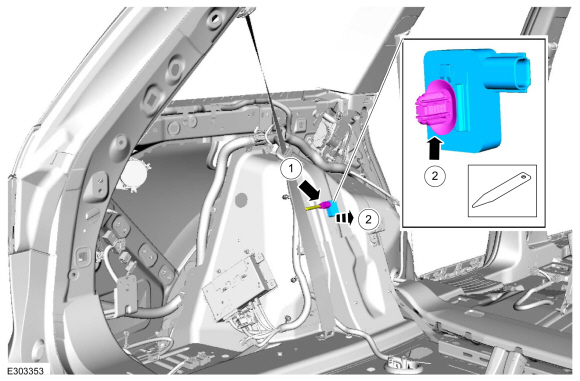

Lincoln Aviator: Passive Anti-Theft System (PATS) - Vehicles With: Phone as a Key / Removal and Installation - Bluetooth Rear Interior Antenna

Removal and Installation - Bluetooth Rear Exterior Antenna

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Left hand side shown, right hand side similar. Remove the rear bumper cover...

Removal and Installation - Remote Function Actuator (RFA) Module

Removal NOTE: This step is only necessary when installing a new component. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module...

Other information:

Lincoln Aviator 2020-2025 Service Manual: Diagnosis and Testing - Third Row Seats

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   SCMJ B11CE:11 Left Seat Left Motor Output:Circuit Short To Ground   GO to Pinpoint Test B   SCMJ B11CE:13 Left Seat Left Motor Output:Circuit Open   GO to Pinpoint Test B   SCMJ B11CE:15 Left Seat Left Motor Output:Circuit Short To Battery Or Open   GO to Pinpoint Test B   SCMJ B1231:1C Right Seat:Circuit Voltage Out Of Range   GO to Pinpoint Test C   SCMJ B1231:54 Right Seat:Missing Calibration   GO to Pinpoint Test D   SCMJ B1231:63 Right Seat:Circuit/Component Protection Time-Out   GO to Pinpoint Test C   SCMJ B1231:99 Right Seat:Exceeded Learning Limit   GO to Pinpoint Test C   SCMJ B1232:1C Left Seat:Circuit Voltage Out Of Range   GO to Pinpoint Test B   SCMJ B1232:54 Left Seat:Missing Calibration   GO to Pinpoint Test D   SCMJ B1232:63 Left Seat:Circuit/Component Protection Time-Out   GO to Pinpoint Test B   SCMJ B1232:99 Left Seat:Exceeded Learning Limit   GO to Pinpoint Test B   SCMJ B1536:11 Left Seat Left Motor Speed/Position Sensor:Circuit Short To Ground   GO to Pinpoint Test B   SCMJ B1536:12 Left Seat Left Motor Speed/Position Sensor:Circuit Short To Battery   GO to Pinpoint Test B   SCMJ B154B:11 Third Row Seat Fold Switch:Circuit Short To Ground   GO to Pinpoint Test A   SCMJ B154B:13 Third Row Seat Fold Switch:Circuit Open   GO to Pinpoint Test A   SCMJ B154B:2A Third Row Seat Fold Switch:Stuck in Range   GO to Pinpoint Test A   SCMJ B154C:11 Right Seat Right Motor Speed/Position Sensor:Circuit Short To Ground   GO to Pinpoint Test C   SCMJ B154C:12 Right Seat Right Motor Speed/Position Sensor:Circuit Short To Battery   GO to Pinpoint Test C   SCMJ B154D:11 Right Seat Right Motor Output:Circuit Short To Ground   GO to Pinpoint Test C   SCMJ B154D:13 Right Seat Right Motor Output:Circuit Open   GO to Pinpoint Test C   SCMJ B154D:15 Right Seat Right Motor Output:Circuit Short To Battery Or Open   GO to Pinpoint Test C   SCMJ U0100:87 Lost Communication With ECM/PCM "A":Missing Message   GO to Pinpoint Test E   SCMJ U0140:87 Lost Communication With Body Control Module:Missing Message   GO to Pinpoint Test F   SCMJ U1000:00 Solid State Driver Protection Active -Driver Disabled:No Sub Type Information   GO to Pinpoint Test G   SCMJ U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test H   SCMJ U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test I   SCMJ U3003:17 Battery Voltage:Circuit Voltage Above Threshold   GO to Pinpoint Test J Symptom Chart(s) Symptom Chart: Third Row Seats Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

Lincoln Aviator 2020-2025 Service Manual: Removal and Installation - Cellular Antenna Cable

Removal NOTE: Removal steps in this procedure may contain installation details. All vehicles Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation). Remove the LH loadspace trim panel...
