Lincoln Aviator: Rear Disc Brake / Removal and Installation - Brake Caliper Anchor Plate
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the brake pads.
Refer to: Brake Pads (206-04 Rear Disc Brake, Removal and Installation).
-

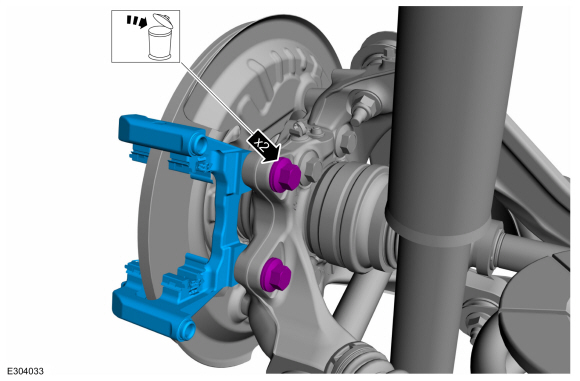

Remove the bolts and the anchor plate. Discard the bolts
Torque:
122 lb.ft (165 Nm)
Installation
-
To install, reverse the removal procedure.
