Lincoln Aviator: Rear Disc Brake / Removal and Installation - Brake Disc

Materials

Name Specification
Motorcraft® Metal Brake Parts Cleaner
PM-4-A, PM-4-B
-


Removal

  WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

  1. Activate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

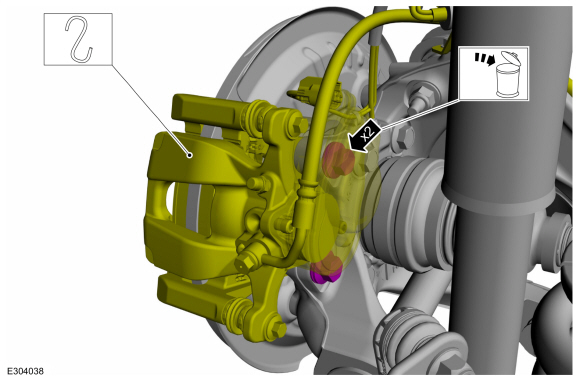

  1. NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

    NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
    Torque: 122 lb.ft (165 Nm)

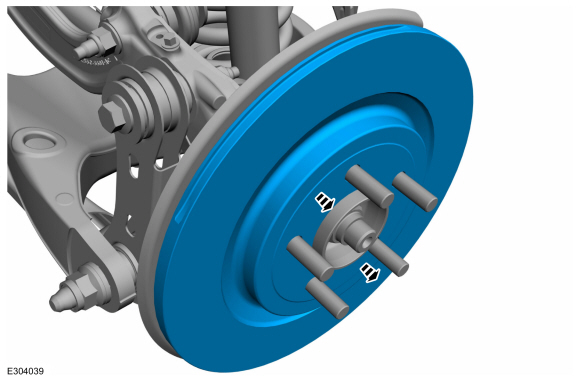

  1. Remove the brake disc.

Installation

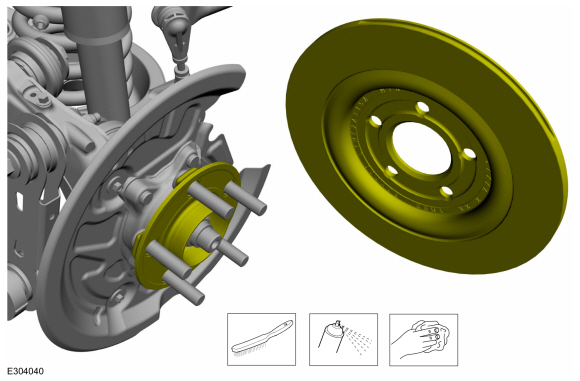

  1. Clean the brake disc mating surfaces using a wire brush and the specified material.
    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
  1. NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

    To install, reverse the removal procedure.
  1. Deactivate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Apply the brake pedal several times to verify correct brake system operation.
