Lincoln Aviator: Rear Disc Brake / Removal and Installation - Brake Disc Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel bearing and wheel hub.
    Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

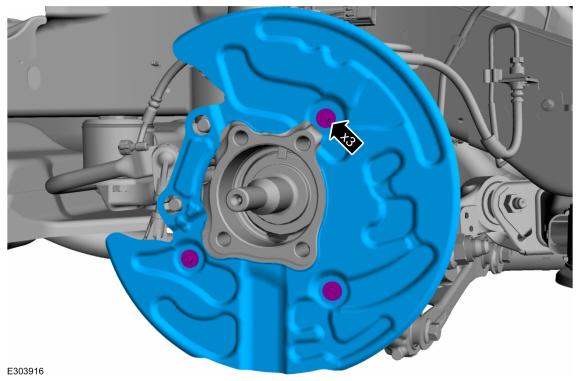

  1. Remove the 3 bolts and the brake disc shield.
    Torque: 159 lb.in (18 Nm)

Installation

  1. To install, reverse the removal procedure.
