Lincoln Aviator: Parking Aid - Vehicles With: Active Park Assist / General Procedures - Azimuth System Check

Check

  1. NOTE: Car shown, trucks are similar.

    Turn the ignition ON, engine OFF.
  1. Set the parking brake on.
  1. For automatic transmission place the selector lever in DRIVE (D). For manual transmission place the gearshift lever in FIRST GEAR.

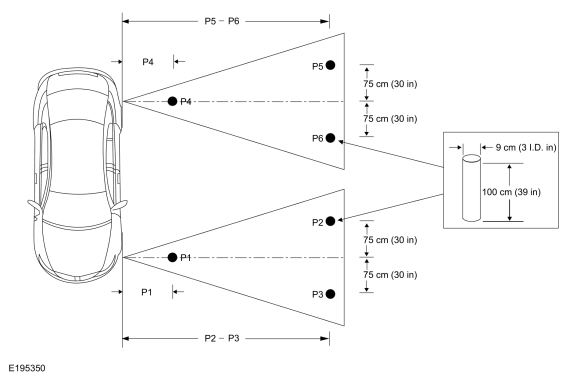

  1. Place the test objects in position shown in the diagram. Refer to specifications in this section.
  1. Monitor the suspect active park assist sensor Parameter Identifications (PIDs) to verify the module detects the objects when placed within the specified locations and record the distances.
  1. Confirm the recorded distances are within the specification ranges.
  1. If the active park assist system does not detect the objects, refer to diagnosis and testing in this section.

    Diagnosis and Testing - Parking Aid

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Removal and Installation - Front Active Park Assist Sensors

    Removal NOTE: LH shown, RH similar. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...

    Other information:

    Lincoln Aviator 2020-2024 Service Manual: Description and Operation - Tire Pressure Monitoring System (TPMS) - System Operation and Component Description


    System Operation System Diagram E344777 *.sttxt { visibility: hidden; } *.stcallout { visibility: visible; } 1 TPMS Sensor 2 TPMS Sensor 3 TPMS Sensor 4 TPMS Sensor 5 GWM 6 BCM 7 IPC Message Center Display 8 TPMS Warning Indicator 9 RTM 10 IPC MS-CAN HS-CAN3 HS-CAN1 Item Description 1 LF TPMS Sensor 2 RF TPMS Sensor 3 LR TPMS Sensor 4 RR TPMS Sensor 5 GWM 6 BCM 7 IPC Message Center Display 8 TPMS Warning Indicator 9 RTM 10 IPC Network Message Chart   BCM TPMS Network Input Messages Broadcast Message Originating Module Message Purpose TPMS data   RTM Communicates tire pressure information to the BCM TPMS Function NOTE: When directed to train any TPMS sensors, use only the sensor training procedure outlined in this manual...

    Lincoln Aviator 2020-2024 Service Manual: Removal and Installation - Rear Temperature Sensor - Vehicles With: Second Row Seats


    Removal NOTE: Removal steps in this procedure may contain installation details. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation). Remove the rear temperature sensor...
