Lincoln Aviator 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Removal and Installation - Front Active Park Assist Sensors

Lincoln Aviator: Parking Aid - Vehicles With: Active Park Assist / Removal and Installation - Front Active Park Assist Sensors

Removal

NOTE: LH shown, RH similar.

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

Remove the rear wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

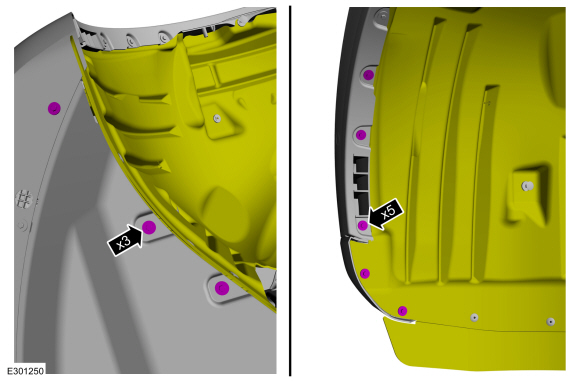

Remove the screws and position aside the front wheel arch liner.

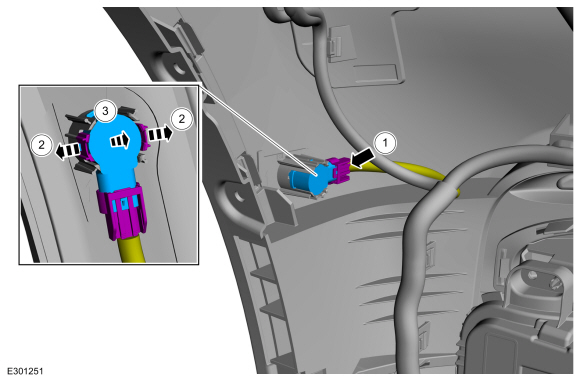

Remove the front active park assist sensor.
1. Disconnect the electrical connector.
1. Release the tabs.
1. Remove the sensor.

mostbet

Installation

NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

To install, reverse the removal procedure.

Carry out the azimuth system check.
Refer to: Azimuth System Check (413-13C Parking Aid - Vehicles With: Active Park Assist, General Procedures).

If any sensor fails the checks, diagnose the sensor fault.
Refer to: Parking Aid (413-13C Parking Aid - Vehicles With: Active Park Assist, Diagnosis and Testing).

General Procedures - Azimuth System Check

Check NOTE: Car shown, trucks are similar. Turn the ignition ON, engine OFF. Set the parking brake on. For automatic transmission place the selector lever in DRIVE (D)...

Removal and Installation - Rear Active Park Assist Sensors

Removal NOTE: RH side shown, LH side similar. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...
