Lincoln Aviator 2020-2026 Service Manual / Powertrain / Engine / Engine - 3.0L EcoBoost / Removal and Installation - Flexplate

Lincoln Aviator: Engine - 3.0L EcoBoost / Removal and Installation - Flexplate

Removal

Remove the transmission.
Refer to: Transmission (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal).

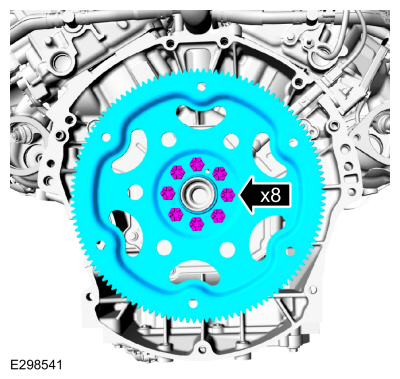

Remove the bolts and the flexplate.

Installation

1. Position the flexplate on the crankshaft.

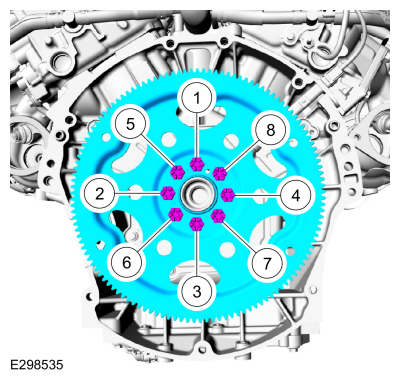

1. Install the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
1. Final tighten the bolts in sequence shown.
  Torque: 59 lb.ft (80 Nm)

Install the transmission.
Refer to: Transmission (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal).

Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
