Lincoln Aviator: Climate Control System - General Information / Removal and Installation - Center Registers

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

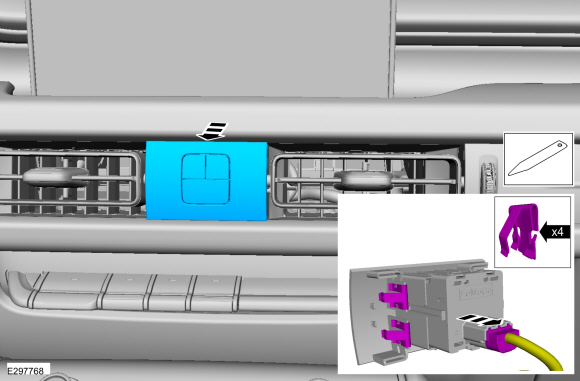

Release the clips and remove the switch assembly.
- Disconnect the electrical connector.
  Use the General Equipment: Interior Trim Remover

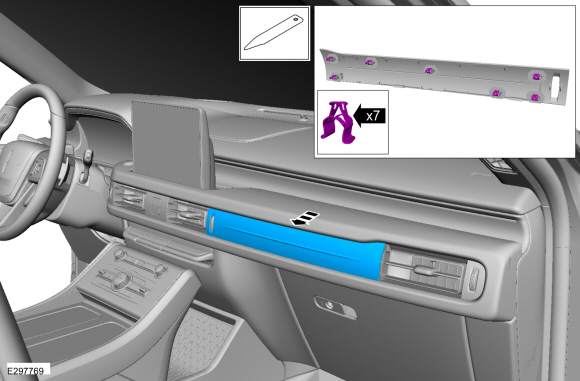

Release the clips and remove the finish panel.
Use the General Equipment: Interior Trim Remover

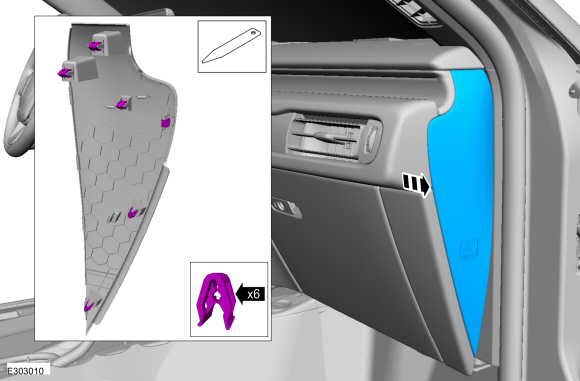

Release the clips and remove the RH instrument panel end cap.

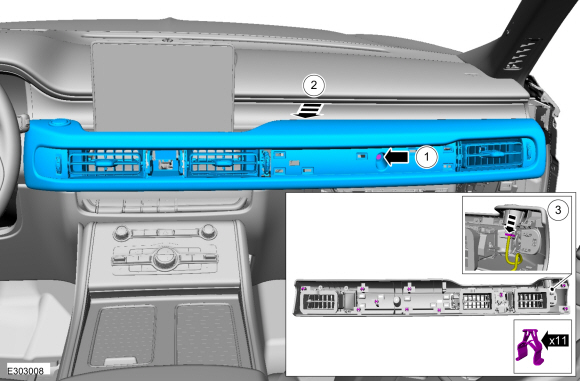

Remove the center instrument panel trim panel.
1. Remove the bolt.
  Torque: 28 lb.in (3.2 Nm)
1. Release the clips and remove the center instrument panel trim panel.
1. Disconnect the electrical connector.

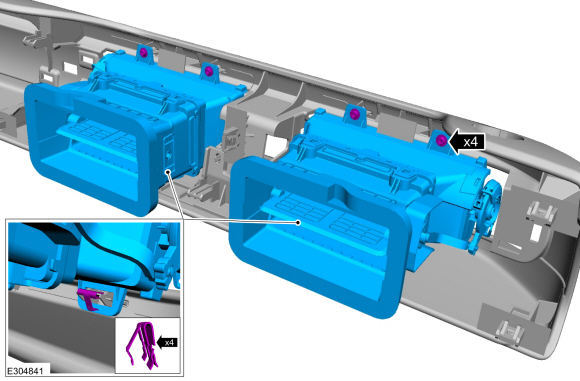

Remove the screws, release the clips and remove the center register assemblies.

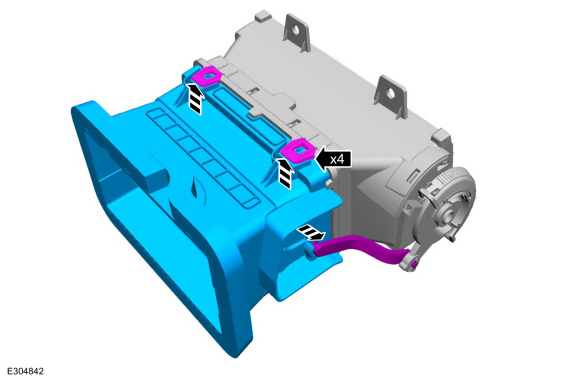

Release the tabs, remove the arm and separate the center register.

Installation

To install, reverse the removal procedure.
