Lincoln Aviator: Rear Climate Control / Removal and Installation - Rear Footwell Air Discharge Temperature Sensor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the RH loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

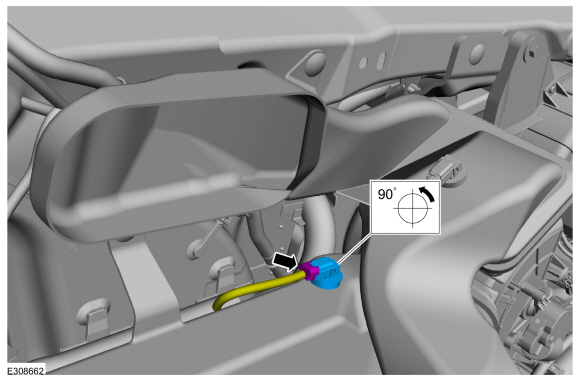

Disconnect the electrical connector.
-
Remove the rear footwell air discharge tempreature sensor.
Installation
-
To install, reverse the removal procedure.
