Lincoln Aviator: Instrument Panel and Console / Removal and Installation - Floor Console

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seats.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

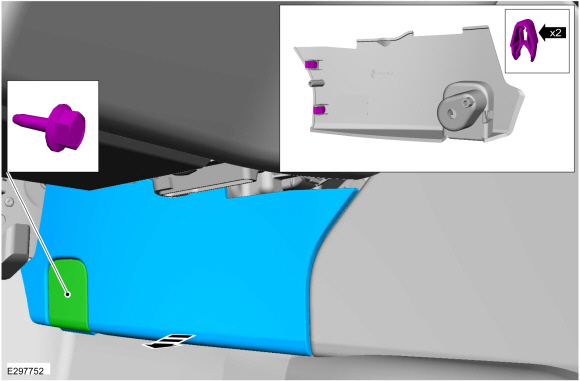

Remove the bolt cover and bolt.
- Release the clips and remove the LH floor console side panel extension.

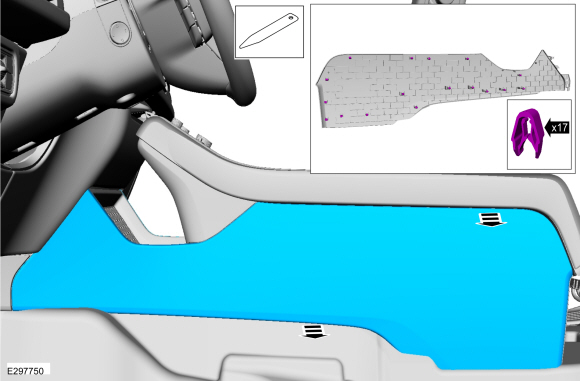

Release the retainers and remove the LH floor console side trim panel.
Use the General Equipment: Interior Trim Remover

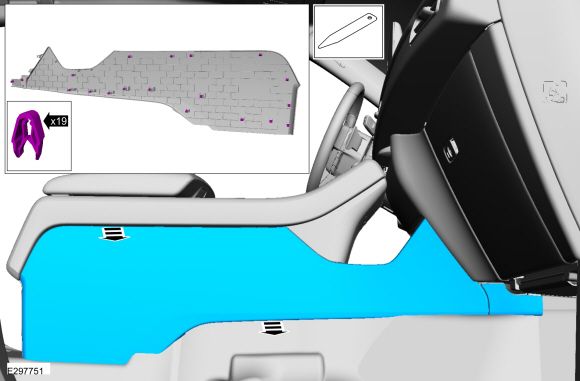

Release the retainers and remove the RH floor console side trim panel.
Use the General Equipment: Interior Trim Remover

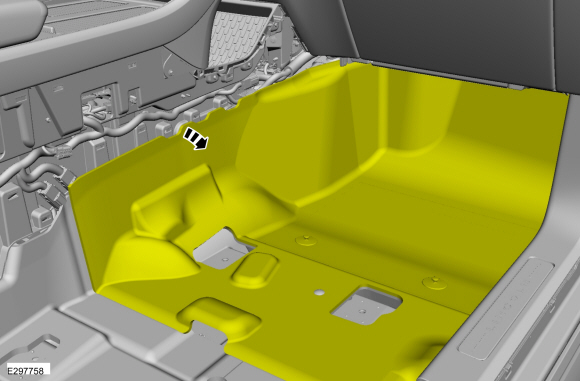

Position the carpet aside.

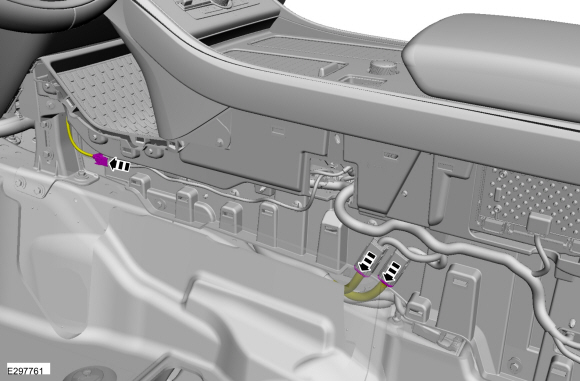

Disconnect the electrical connectors.

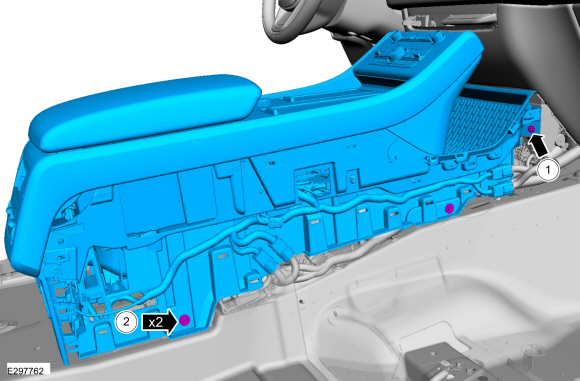

Remove the RH floor console bolts.
- Remove the bolt.
  Torque: 28 lb.in (3.2 Nm)
- Remove the bolts.
  Torque: 48 lb.in (5.4 Nm)

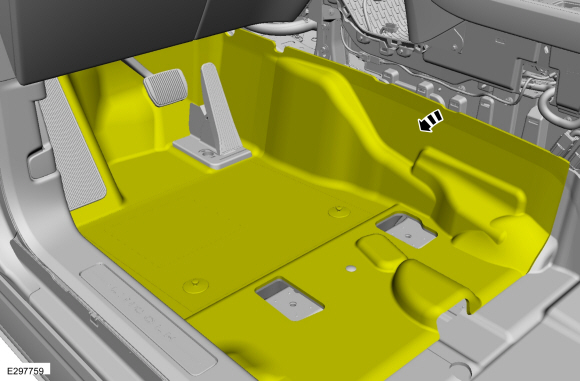

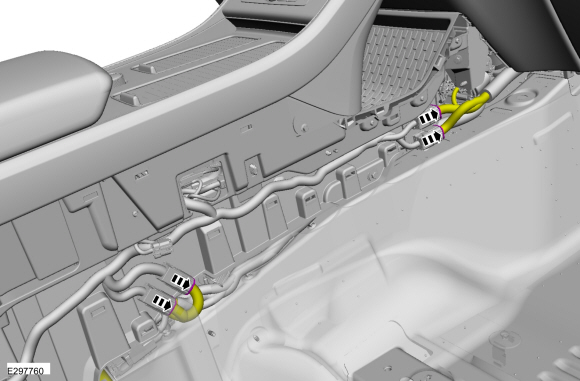

Position the carpet aside.

Disconnect the electrical connectors.

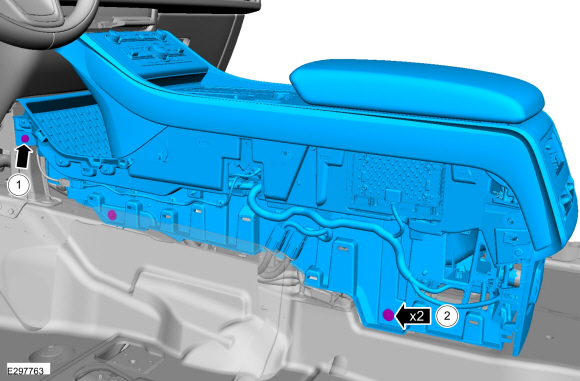

Remove the LH floor console bolts.
1. Remove the bolt.
  Torque: 28 lb.in (3.2 Nm)
1. Remove the bolts.
  Torque: 48 lb.in (5.4 Nm)

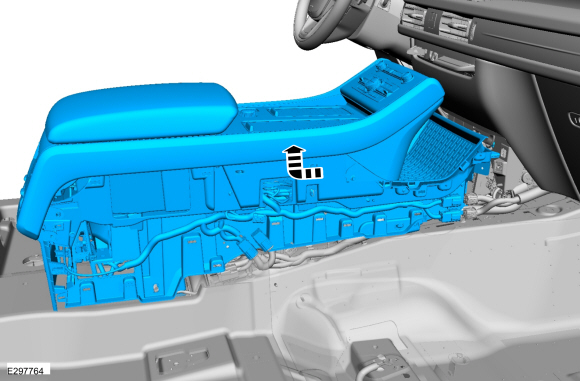

Remove the floor console.

Installation

To install, reverse the removal procedure.
