Lincoln Aviator: Wipers and Washers / Removal and Installation - Front Parking Aid Camera Washer Jet
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front parking aid camera.
Refer to: Front Parking Aid Camera (413-13B Parking Aid - Vehicles With: Parking Aid Camera, Removal and Installation).
-

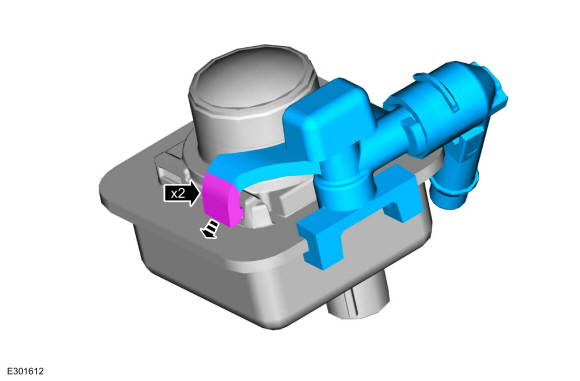

Release the clips and remove the front parking aid camera washer jet.
Installation
-
To install, reverse the removal procedure.
Repair
NOTE:
This procedure may be carried out on rubber hoses only. If a
plastic washer hose is damaged, a new washer hose must be installed.
Locate and verify the damaged washer hose...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear parking aid camera.
Refer to: Rear Parking Aid Camera (413-13B Parking Aid - Vehicles With: Parking Aid Camera, Removal and Installation)...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
GSM
P0562:00
System Voltage Low: No Sub Type Information
GO to Pinpoint Test B
GSM
P0563:00
System Voltage High: No Sub Type Information
GO to Pinpoint Test C
GSM
P0605:00
Internal Control Module Read Only Memory (ROM) Error: No Sub Type Information
GO to Pinpoint Test L
GSM
P0606:00
Control Module Processor: No Sub Type Information
GO to Pinpoint Test L
GSM
P0607:00
Control Module Performance: No Sub Type Information
GO to Pinpoint Test L
GSM
P06B8:00
Internal Control Module Non-Volatile Random Access Memory (NVRAM) Error: No Sub Type Information
GO to Pinpoint Test L
GSM
P07EC:00
Transmission Range Multi-Function Select Circuit: No Sub Type Information
GO to Pinpoint Test J
GSM
P07ED:00
Transmission Range Multi-Function Select Circuit Stuck: No Sub Type Information
GO to Pinpoint Test J
GSM
P0814:00
Transmission Range Display Circuit: No Sub Type Information
GO to Pinpoint Test I
GSM
P164E:00
Internal Control Module Transmission Range Select Performance: No Sub Type Information
GO to Pinpoint Test L
GSM
P166B:00
Drivers Door Status Correlation: No Sub Type Information
GO to Pinpoint Test H
GSM
U0100:00
Lost Communication With ECM/PCM "A": No Sub Type Information
GO to Pinpoint Test G
GSM
U0100:87
Lost Communication With ECM/PCM "A": Missing Message
GO to Pinpoint Test G
GSM
U0121:00
Lost Communication With Anti-Lock Brake System (ABS) Control Module "A": No Sub Type Information
GO to Pinpoint Test F
GSM
U0140:00
Lost Communication With Body Control Module: No Sub Type Information
GO to Pinpoint Test E
GSM
U0155:00
Lost Communication With Instrument Panel Cluster (IPC) Control Module: No Sub Type Information
GO to Pinpoint Test D
GSM
U0203:00
Lost Communication With Door Control Module "E": No Sub Type Information
GO to Pinpoint Test H
GSM
U0301:00
Software Incompatibility with ECM/PCM: No Sub Type Available
GO to Pinpoint Test M
GSM
U0401:00
Invalid Data Received from ECM/PCM A: No Sub Type Information
GO to Pinpoint Test N
GSM
U0422:00
Invalid Data Received From Body Control Module: No Sub Type Information
GO to Pinpoint Test N
GSM
U0504:00
Invalid Data Received From Door Control Module "E": No Sub Type Information
GO to Pinpoint Test H
GSM
U1011:00
Invalid Internal Control Module Monitoring Data Received from ECM/PCM: No Sub Type Information
GO to Pinpoint Test O
GSM
U101F:00
Invalid Internal Control Module Monitoring Data Received from ECM/PCM: No Sub Type Information
GO to Pinpoint Test O
Global Customer Symptom Code (GCSC) Chart
Global Customer Symptom Code Chart
Customer Symptom
Action
Start/Run/Move > Moving > Paddle Shift > Inoperative
GO to Pinpoint Test K
Start/Run/Move > Moving > Gear Selector > Return to Park
GO to Pinpoint Test Q
Start/Run/Move > Moving > Gear Selector > Return to Park
GO to Pinpoint Test R
Start/Run/Move > Moving > Engagement Quality > Park
GO to Pinpoint Test P
Start/Run/Move > Moving > Engagement Quality > Park
GO to Pinpoint Test S
Start/Run/Move > Moving > Gear Selector > Progressive Range Selection
GO to Pinpoint Test A
Pinpoint Tests
PINPOINT TEST A : PROGRESSIVE RANGE SELECTION DOES NOT OPERATE CORRECTLY
Refer to Wiring Diagrams Cell 30 for schematic and connector information...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B11DB:02
Battery Monitoring Module "A": General Signal Failure
GO to Pinpoint Test F
BCM
B11DB:08
Battery Monitoring Module "A": Bus Signal/Message Failures
GO to Pinpoint Test F
BCM
B11DB:09
Battery Monitoring Module "A": Component Failures
GO to Pinpoint Test F
BCM
B11DB:11
Battery Monitoring Module "A": Circuit Short To Ground
GO to Pinpoint Test F
BCM
B11DB:49
Battery Monitoring Module "A": Internal Electronic Failure
GO to Pinpoint Test I
BCM
B11DB:55
Battery Monitoring Module "A": Not Configured
GO to Pinpoint Test J
BCM
B1489:11
Battery Monitoring System (BMS) Sensor Power: Circuit Short To Ground
GO to Pinpoint Test F
PCM
P0562:00
System Voltage Low: No Sub Type Information
GO to Pinpoint Test B
PCM
P0563:00
System Voltage High: No Sub Type Information
GO to Pinpoint Test A
PCM
P065B:00
Generator "A" Control Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test B
PCM
P065C:00
Generator "A" Mechanical Performance: No Sub Type Information
GO to Pinpoint Test B
PCM
P0A3B:00
Generator "A" Over Temperature: No Sub Type Information
GO to Pinpoint Test K
PCM
P0A5A:00
Generator Current Sensor Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test E
PCM
P0A5B:00
Generator Current Sensor Circuit Low: No Sub Type Information
GO to Pinpoint Test E
PCM
P0A5C:00
Generator Current Sensor Circuit High: No Sub Type Information
GO to Pinpoint Test E
PCM
U012D:00
Lost Communication With Generator "A" Control Module: No Sub Type Information
GO to Pinpoint Test G
PCM
U042E:00
Invalid Data Received From Generator "A" Control Module: No Sub Type Information
GO to Pinpoint Test G
Inspection and Verification
Verify the customer concern by operating the charging system...
