Lincoln Aviator: Fuel Tank and Lines - 3.0L EcoBoost / Removal and Installation - Fuel Lines

Removal

  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

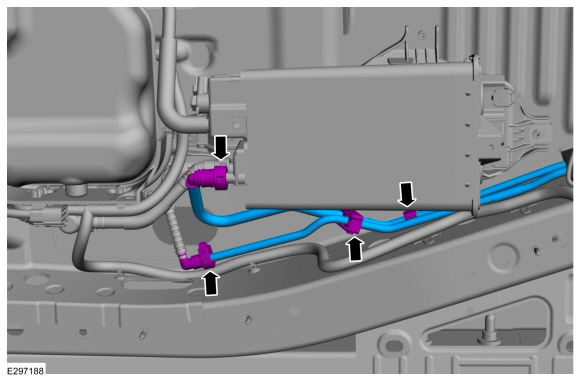

  1. Remove the quick release couplings and detach the retainer clip.
    Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

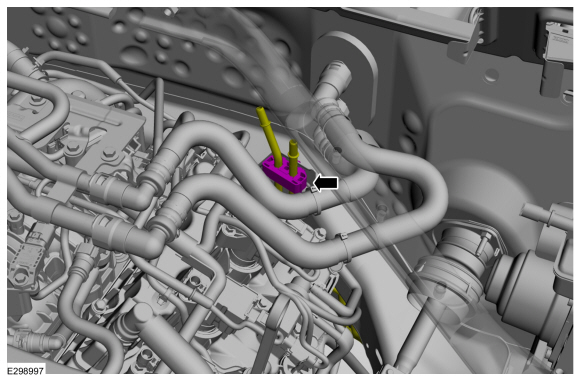

  1. Detach the retainer clip.

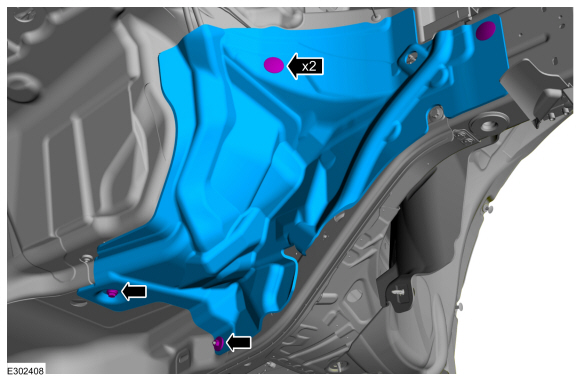

  1. Remove the fasteners and Heat shield.
    Torque: 89 lb.in (10 Nm)
  1. Remove the retainer clips and disconnect the electrical connector.

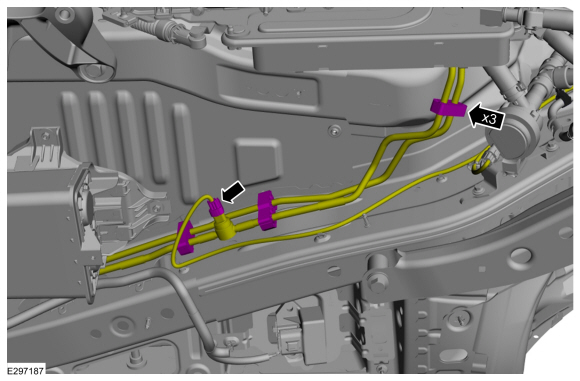

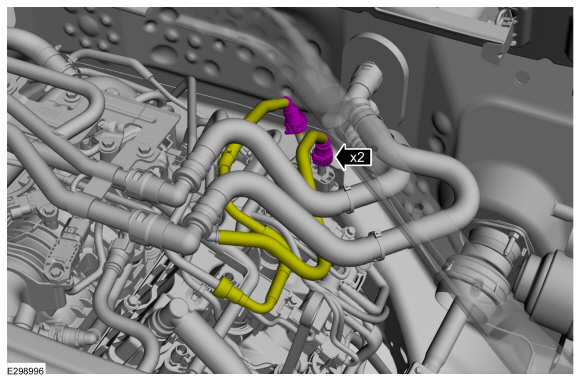

  1. Remove the quick release couplings and detach the retainer clips.
    Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

Installation

  1. To install, reverse the removal procedure.
