Lincoln Aviator 2020-2024 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Switch - Vehicles With: Keyless Vehicle System

Lincoln Aviator: Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Switch - Vehicles With: Keyless Vehicle System

Removal

NOTE: Removal steps in this procedure may contain installation details.

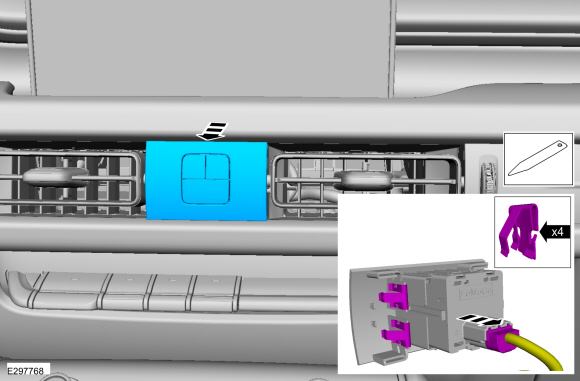

  1. Remove and disconnect the switch pack.

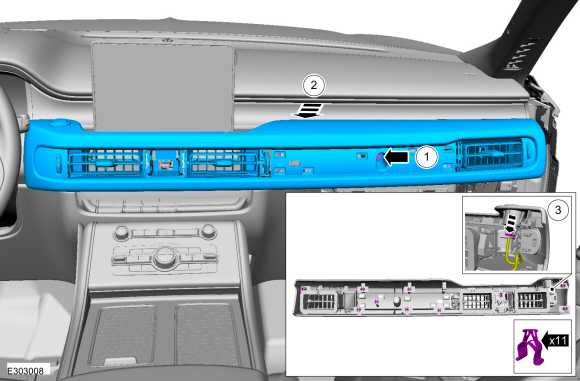

  1. Remove trim panel.
  1. Remove trim panel.

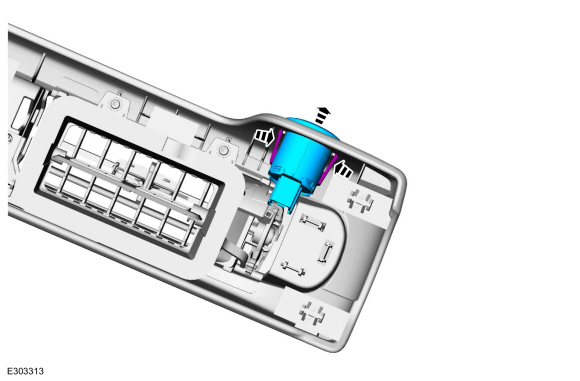

    1. Remove the retainer.
      Torque: 28 lb.in (3.2 Nm)

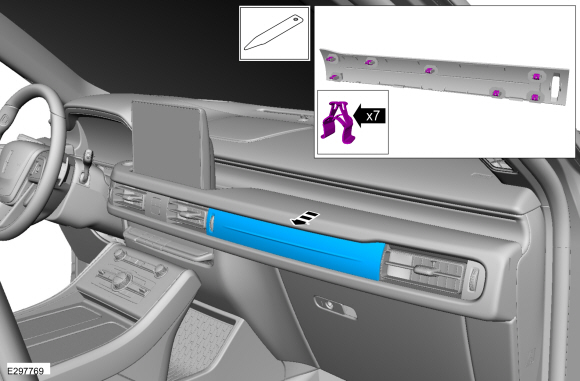

    1. Remove the trim panel.
    1. Disconnect the ignition switch electrical connector.
  1. Depress the clips and remove the ignition switch.

Installation

  1. To install, reverse the removal procedure.

    General Procedures - Steering Column Multifunction Switch Adjustment

    Adjustment Using a diagnostic scan tool, retrieve and diagnose all SECM Diagnostic Trouble Codes (DTCs). Refer to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing)...

    Removal and Installation - Steering Column Control Module (SCCM)

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: This step is only necessary when installing a new component...
