Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Front Door Release Switch
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

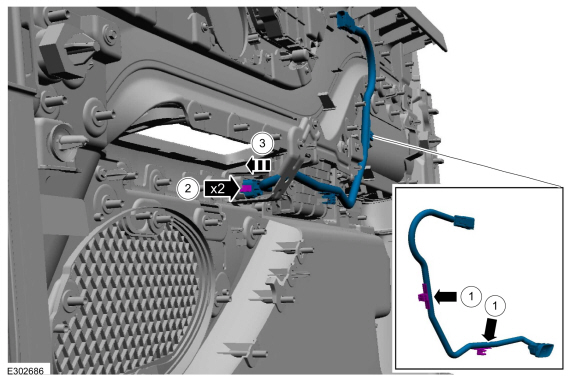

Remove the interior front door release switch
-
Release the wiring harness routing clips.
-
Release the clips.
-
Remove the interior front door release switch
Installation
-
To install, reverse the removal procedure.
Removal
Remove the hood latch release handle.
Rotate the hood latch release handle.
NOTE:
Do not remove the retaining clip from the hood latch release handle...
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
I..
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
CCM
B142E:78
Forward Looking Sensor Horizontal Alignment: Alignment or Adjustment Incorrect
GO to Pinpoint Test C
CCM
B1433:54
Forward Looking Sensor Horizontal Alignment: Missing Calibration
GO to Pinpoint Test C
CCM
C1001:08
Vision System Camera: Bus Signal/Message Failure
GO to Pinpoint Test D
CCM
C1A67:96
Forward Looking Sensor: Component Internal Failure
GO to Pinpoint Test F
CCM
C1A67:97
Forward Looking Sensor: Component Or System Operation Obstructed Or Blocked
GO to Pinpoint Test G
CCM
U2100:00
Initial Configuration Not Complete: No Sub Type Information
GO to Pinpoint Test H
CCM
U2300:55
Central Configuration Not Complete: No Sub Type Information
GO to Pinpoint Test H
CCM
U3000:41
Control Module: General Checksum Failure
GO to Pinpoint Test I
CCM
U3000:42
Control Module: General Memory Failure
GO to Pinpoint Test I
CCM
U3000:44
Control Module: Data Memory Failure
GO to Pinpoint Test I
CCM
U3000:49
Control Module: Internal Electronic Failure
GO to Pinpoint Test I
CCM
U3002:62
Vehicle Identification Number: Signal Compare Failure
GO to Pinpoint Test J
CCM
U3003:16
Battery Voltage: Circuit Voltage Below Threshold
GO to Pinpoint Test K
CCM
U3003:17
Battery Voltage: Circuit Voltage Above Threshold
GO to Pinpoint Test L
IPMA
C1A67:08
Forward Looking Sensor: Bus Signal/Message Failure
GO to Pinpoint Test E
PCM
P0504:00
Brake Switch A / B Correlation: No Sub Type Information
GO to Pinpoint Test B
PCM
P0572:00
Brake Switch "A" Circuit Low: No Sub Type Information
GO to Pinpoint Test B
PCM
P0573:00
Brake Switch "A" Circuit High: No Sub Type Information
GO to Pinpoint Test B
PCM
P1703:00
Brake Switch Out Of Self - Test Range: No Sub Type Information
GO to Pinpoint Test B
PCM
P1935:00
Brake Switch/Sensor Signal: No Sub Type Information
GO to Pinpoint Test B
SIMA
P0564:11
Cruise Control Multi-Function Input "A" Circuit: Circuit Short To Ground
GO to Pinpoint Test A
SIMA
P0564:12
Cruise Control Mulit-Function Input "A" Circuit: Circuit Short To Battery
GO to Pinpoint Test A
SIMA
P0564:13
Cruise Control Mulit-Function Input "A" Circuit: Circuit Open
GO to Pinpoint Test A
SIMA
P0589:11
Cruise Control Multi-Function Input "B" Circuit: Circuit Short To Ground
GO to Pinpoint Test A
SIMA
P0589:12
Cruise Control Mulit-Function Input "B" Circuit: Circuit Short To Battery
GO to Pinpoint Test A
SIMA
P0589:13
Cruise Control Mulit-Function Input "B" Circuit: Circuit Open
GO to Pinpoint Test A
