Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Rear Door Release Switch

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

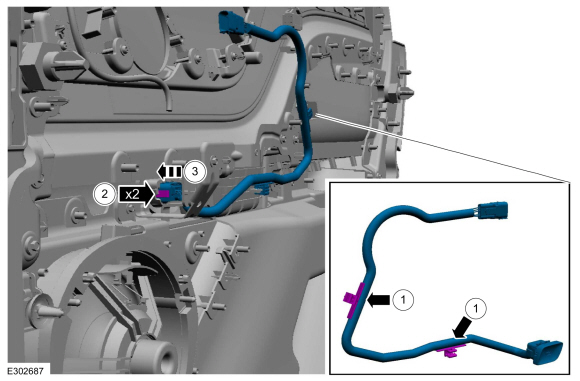

  1. Remove the interior rear door release switch
    1. Release the wiring harness routing clips.
    1. Release the clips.
    1. Remove the interior rear door release switch

Installation

  1. To install, reverse the removal procedure.
