Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Keyless Entry Rear Antenna
Special Tool(s) /
General Equipment
Removal
-

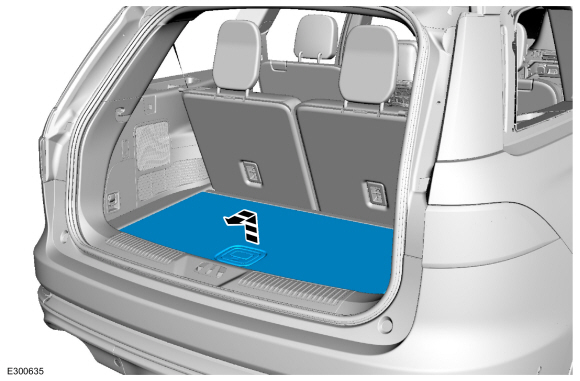

Remove the luggage compartment floor covering.
-
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
On both sides.

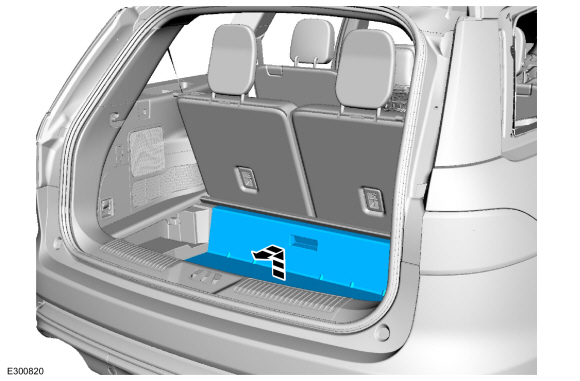

Release the clips and remove the luggage compartment side trim panel.
Use the General Equipment: Interior Trim Remover
-

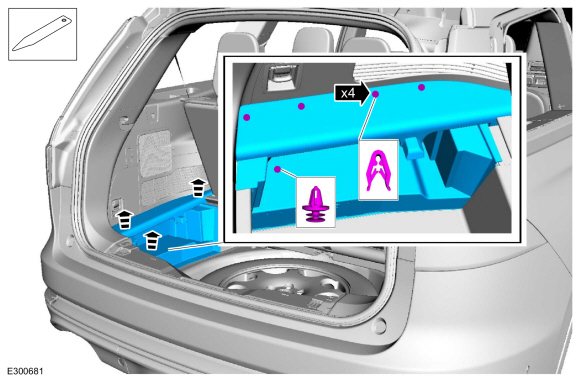

Remove the luggage compartment spare tire cover.
-
Position the liftgate weatherstrip aside.
-

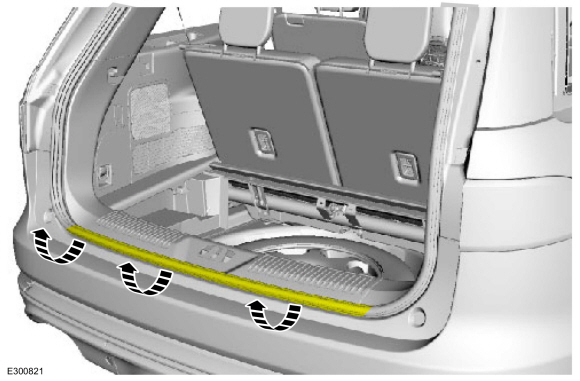

Remove the liftgate scuff plate trim panel.
-
Release the liftgate scuff plate trim panel clips.
Use the General Equipment: Interior Trim Remover
-

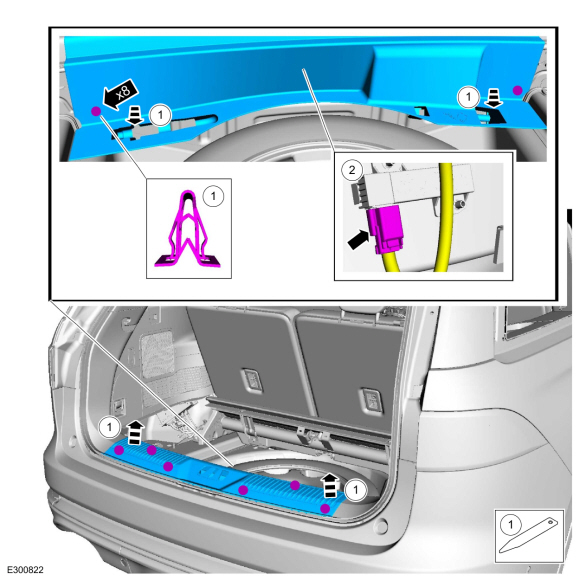

Disconnect the keyless entry rear antenna electrical connector.
-

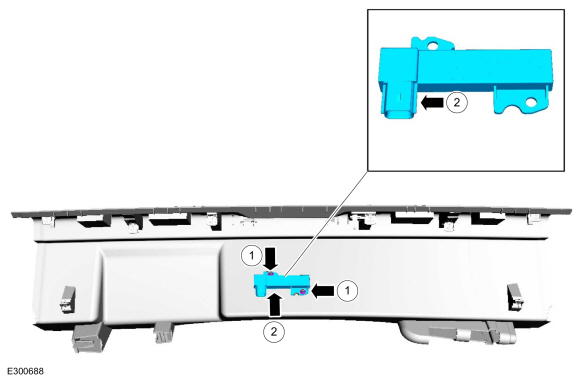

Remove the keyless entry rear antenna.
-
Remove the keyless entry rear antenna nuts.
-
Remove the keyless entry rear antenna.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
The keyless entry keypad is serviced as an assembly with the front door upper moulding.
Remove the front door upper moulding...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
