Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Passenger Door Window Control Switch

Lincoln Aviator: Glass, Frames and Mechanisms / Removal and Installation - Passenger Door Window Control Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

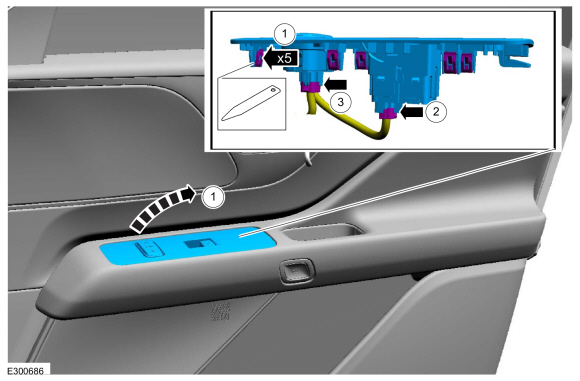

Remove the passenger door window control switch bezel assembly.
1. Release the locking tabs from the passenger door window control switch bezel assembly.
  Use the General Equipment: Interior Trim Remover
1. Disconnect the passenger door window control switch the electrical connector.
1. Disconnect the passenger door lock control switch electrical connector and remove the passenger door window control switch bezel assembly.

NOTE: This step is only necessary when installing a new component.

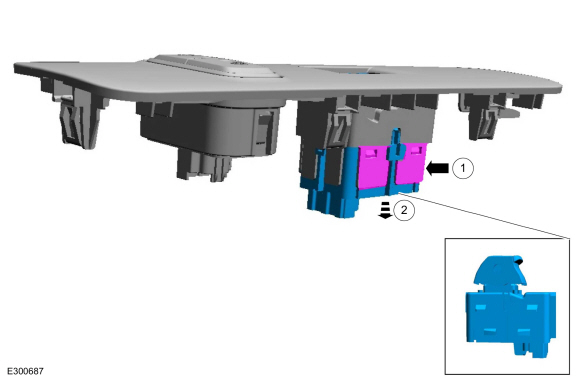

Remove the passenger door window control switch from the bezel assembly.
1. Release the locking tabs from the passenger door window control switch.
1. Remove the passenger door window control switch from the bezel assembly.

Installation

To install, reverse the removal procedure.
