Lincoln Aviator: Glass, Frames and Mechanisms / Removal and Installation - Front Door Window Regulator Motor
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
For front door window regulator motors that are
non-functional it may be necessary to remove the front door window
regulator motor prior to securing the front door window glass.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
NOTICE:
Damage to the front door window glass may occur if not secured.

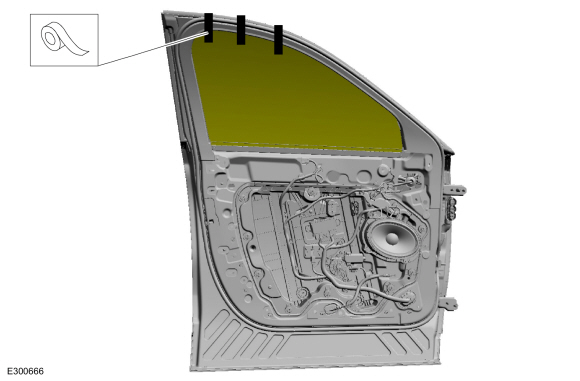

Secure the front door window glass with tape.
-
Remove the front door window regulator motor.
-

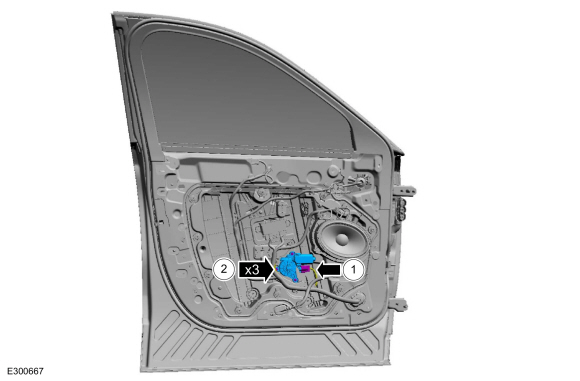

Disconnect the front door window regulator motor electrical connector.
-
Remove the bolts and the front door window regulator motor.
Installation
-
To install, reverse the removal procedure.
-
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Special Tool(s) /
General Equipment
Punch
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
For front door window regulator motors that are
non-functional it will be necessary to remove the front door window
regulator motor prior to removing the front door window regulator...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Remove the passenger door window control switch bezel assembly...
