Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Rear Door Speaker
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

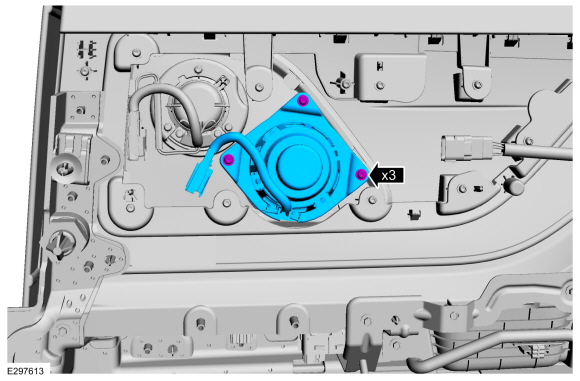

Rear door mid range speaker
-
Separate the wiring harness guide, remove the screws and the front door mid range speaker
Torque:
22 lb.in (2.5 Nm)

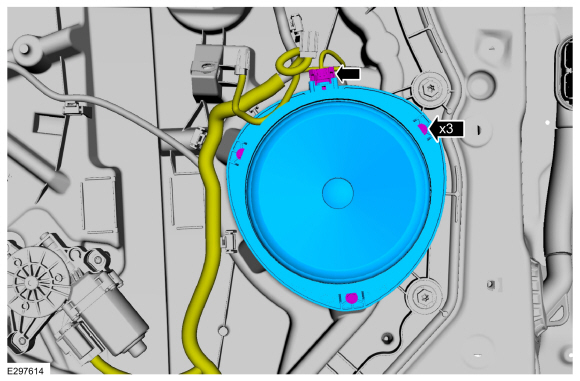

Rear door woofer speaker
-
Disconnect the electrical connector, remove the screws and the rear door speaker.
Torque:
22 lb.in (2.5 Nm)
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Touchscreen controls shown, analog controls are similar.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
