Lincoln Aviator: Interior Trim and Ornamentation / Removal and Installation - Rear Scuff Plate Trim Panel
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
-

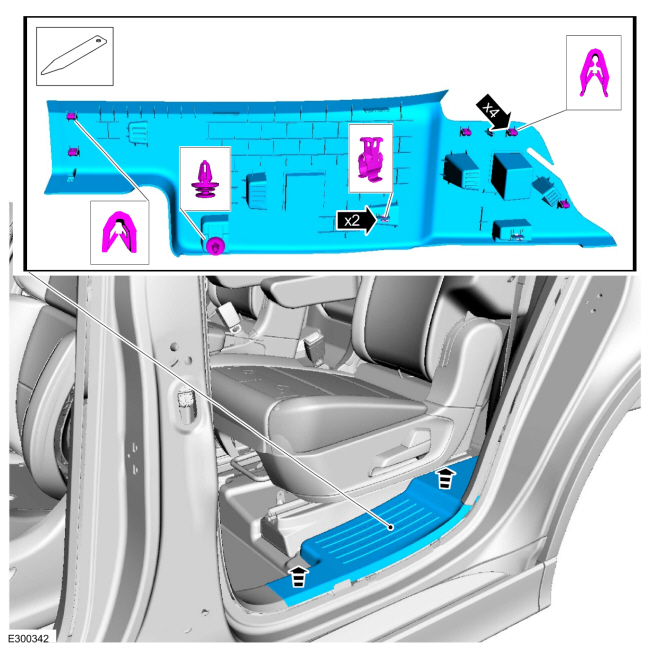

Release the clips and remove the rear scuff plate trim panel.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
-

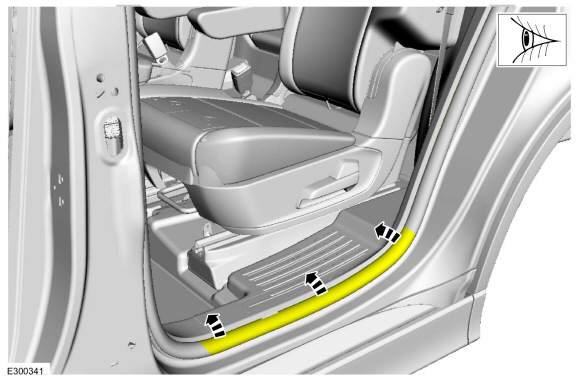

Inspect and position the rear door weather strip lip so that it overlaps the rear scuff plate trim panel.
