Lincoln Aviator: Rear Climate Control / Removal and Installation - Rear Temperature Door Actuator

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the RH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

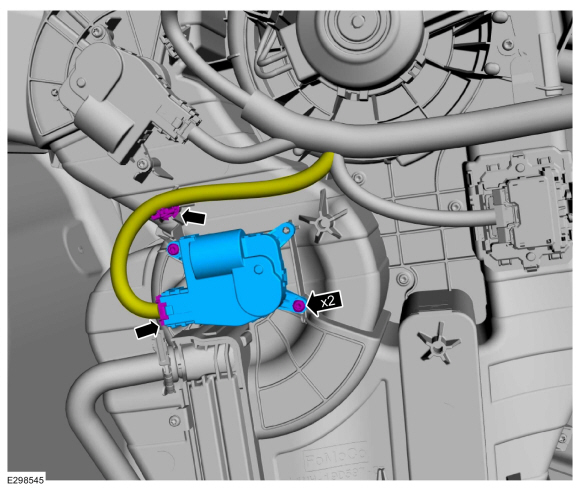

    • Disconnect the electrical connector.
    • Detach the wiring harness routing clip.
    • Remove the retainers and the rear temperature blend door actuator.

Installation

  1. To install, reverse the removal procedure.
