Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Seat Backrest Blower Motor
Removal
-
Remove the second row single seat backrest cover.
Refer to: Second Row Single Seat Backrest Cover - Vehicles With: Second Row Captain Chairs (501-10B Second Row Seats, Removal and Installation).
-

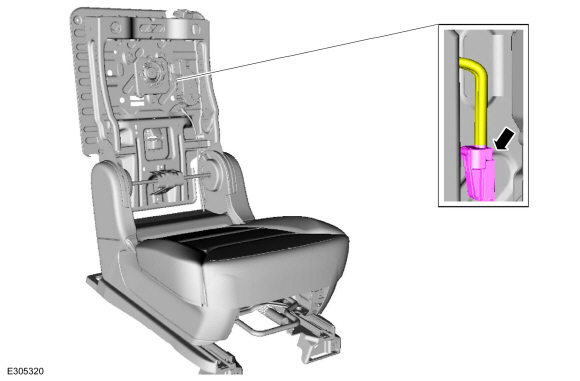

Disconnect the second row seat backrest blower motor electrical connector.
-

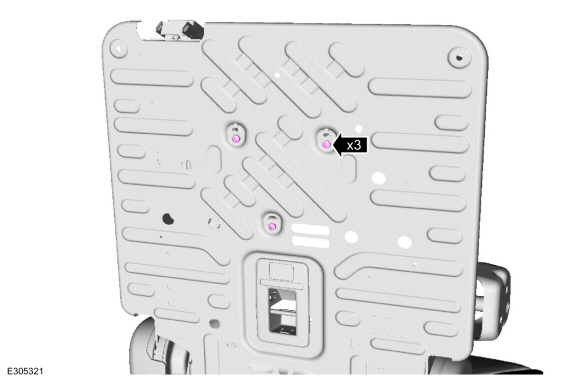

Remove the second row seat backrest blower motor screws.
Torque:
71 lb.in (8 Nm)
-

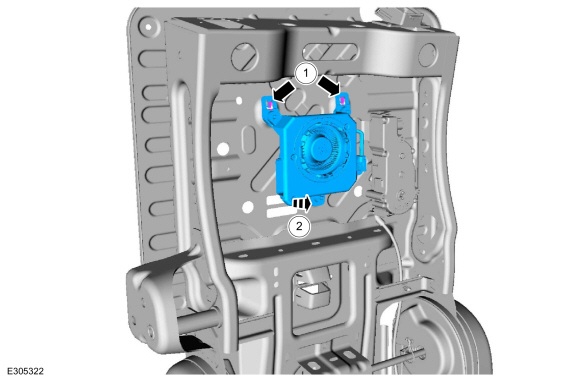

Remove the second row seat backrest blower motor.
-
Release the second row seat backrest blower motor clips.
-
Remove the second row seat backrest blower motor.
Installation
-
To install, reverse the removal procedure.
