Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Seat Climate Control Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The SCMF (rear seat climate control module) is located under the RH (right-hand) second row seat cushion frame.

  1. NOTE: This step is only necessary when installing a new component.

    NOTE: The PMI (programmable module installation) process must begin with the current SCMF (rear seat climate control module) installed. If the current SCMF (rear seat climate control module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using the diagnostic scan tool, begin the PMI process for the SCMF following the on-screen instructions.

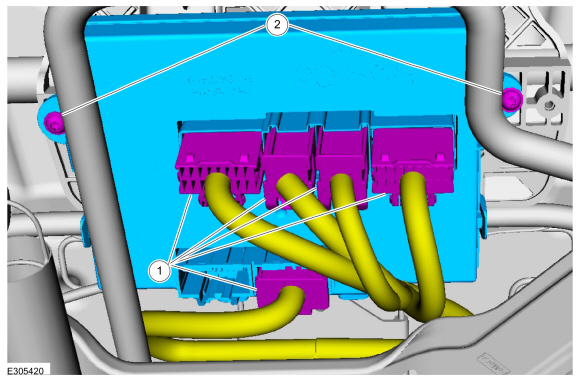

  1. Remove the SCMF.
    1. Disconnect the SCMF electrical connectors.
    1. Remove the SCMF screws.
      Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the SCMF following the on-screen instructions.
