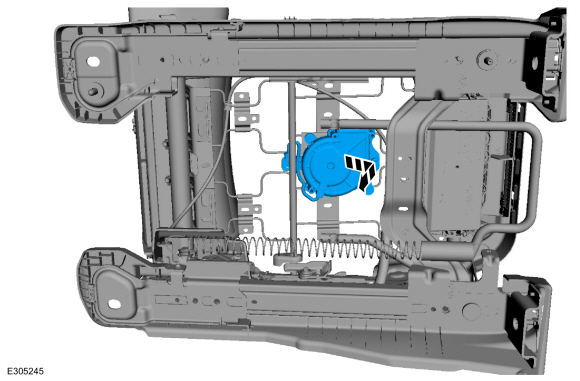

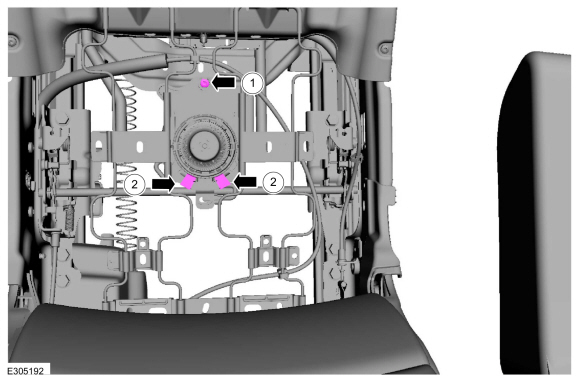

Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Seat Cushion Blower Motor

Removal and Installation - Second Row Seat Climate Control Module

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: The SCMF (rear seat climate control module) is located under the RH (right-hand) second row seat cushion frame...

Removal and Installation - Second Row Seat Folding Mechanism

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: LH (left hand) seat shown, RH (right hand) seat similar. NOTE: Removal steps in this procedure may contain installation details...

Other information:

Lincoln Aviator 2020-2024 Service Manual: Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details. Release the clips and position aside the side panel consoles. Use the General Equipment: Interior Trim Remover Release the clips and position aside the upper side panel consoles...

Lincoln Aviator 2020-2024 Service Manual: Diagnosis and Testing - Headlamps

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B14E0:11 Exterior Lamps Power Supply "C": Circuit Short to Ground   GO to Pinpoint Test A   BCM B14E0:15 Exterior Lamps Power Supply "C": Circuit Short to Battery or Open   GO to Pinpoint Test A   BCM B14E1:11 Exterior Lamps Power Supply "D": Circuit Short to Ground   GO to Pinpoint Test A   BCM B14E1:15 Exterior Lamps Power Supply "D": Circuit Short to Battery or Open   GO to Pinpoint Test A   BCM B14E2:11 Exterior Lamps Power Supply "E": Circuit Short to Ground   GO to Pinpoint Test B   BCM B14E2:15 Exterior Lamps Power Supply "E": Circuit Short to Battery or Open   GO to Pinpoint Test B   BCM B14E3:11 Exterior Lamps Power Supply "F": Circuit Short to Ground   GO to Pinpoint Test B   BCM B14E3:15 Exterior Lamps Power Supply "F": Circuit Short to Battery or Open   GO to Pinpoint Test B   BCM B14E5:01 Left Front Enhanced Exterior Lighting System: General Electrical Failure   GO to Pinpoint Test S   BCM B14E5:08 Left Front Enhanced Exterior Lighting System: Bus Signal / Message Failure   GO to Pinpoint Test S   BCM B14E5:49 Left Front Enhanced Exterior Lighting System: Internal Electronic Failure   GO to Pinpoint Test S   BCM B14E5:55 Left Front Enhanced Exterior Lighting System: Not Configured   GO to Pinpoint Test S   BCM B14E7:01 Right Front Enhanced Exterior Lighting System: General Electrical Failure   GO to Pinpoint Test S   BCM B14E7:08 Right Front Enhanced Exterior Lighting System: Bus Signal / Message Failure   GO to Pinpoint Test S   BCM B14E7:49 Right Front Enhanced Exterior Lighting System: Internal Electronic Failure   GO to Pinpoint Test S   BCM B14E7:55 Right Front Enhanced Exterior Lighting System: Not Configured   GO to Pinpoint Test S   BCM B1533:02 Headlamp Switch Module: General Signal Failure   GO to Pinpoint Test A   BCM B1533:08 Headlamp Switch Module: Bus Signal / Message   GO to Pinpoint Test A   BCM B1533:49 Headlamp Switch Module: Internal Electronic Failure   GO to Pinpoint Test A   BCM B1533:56 Headlamp Switch Module: Invalid / Incompatible Configuration   GO to Pinpoint Test A   BCM B1D00:11 Left Low Beam: Circuit Short To Ground   GO to Pinpoint Test A   BCM B1D00:15 Left Low Beam: Circuit Short To Battery Or Open   GO to Pinpoint Test A   BCM B1D01:11 Right Low Beam: Circuit Short To Ground   GO to Pinpoint Test A   BCM B1D01:15 Right Low Beam: Circuit Short To Battery Or Open   GO to Pinpoint Test A   BCM B1D02:11 Left High Beam Circuit: Circuit Short To Ground   GO to Pinpoint Test B   BCM B1D02:15 Left High Beam Circuit: Circuit Short To Battery Or Open   GO to Pinpoint Test B   BCM B1D03:11 Right High Beam Circuit: Circuit Short To Ground   GO to Pinpoint Test B   BCM B1D03:15 Right High Beam Circuit: Circuit Short To Battery Or Open   GO to Pinpoint Test B   HCM B1041:04 Levelling Control: System Internal Failure   GO to Pinpoint Test H   HCM B1041:54 Levelling Control: Missing Calibration   GO to Pinpoint Test H   HCM B1087:83 LIN Bus "A": Value of Signal Protection Calculation Incorrect   GO to Pinpoint Test F   HCM B1087:83 LIN Bus "A": Value of Signal Protection Calculation Incorrect   GO to Pinpoint Test G   HCM B1087:86 LIN Bus "A": Signal Invalid   GO to Pinpoint Test F   HCM B1087:86 LIN Bus "A": Signal Invalid   GO to Pinpoint Test G   HCM B1088:83 LIN Bus "B": Value of Signal Protection Calculation Incorrect   GO to Pinpoint Test F   HCM B1088:83 LIN Bus "B": Value of Signal Protection Calculation Incorrect   GO to Pinpoint Test G   HCM B1088:86 LIN Bus "B": Signal Invalid   GO to Pinpoint Test F   HCM B1088:86 LIN Bus "B": Signal Invalid   GO to Pinpoint Test G   HCM B1437:01 Left Levelling Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B1437:87 Left Levelling Actuator: Missing Message   GO to Pinpoint Test F   HCM B1437:87 Left Levelling Actuator: Missing Message   GO to Pinpoint Test G   HCM B1439:01 Right Levelling Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B1439:87 Right Levelling Actuator: Missing Message   GO to Pinpoint Test F   HCM B1439:87 Right Levelling Actuator: Missing Message   GO to Pinpoint Test G   HCM B14D9:01 Left Headlamp Light Distribution Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B14D9:64 Left Headlamp Light Distribution Actuator: Signal Plausibility Failure   GO to Pinpoint Test I   HCM B14D9:87 Left Headlamp Light Distribution Actuator: Missing Message   GO to Pinpoint Test F   HCM B14D9:87 Left Headlamp Light Distribution Actuator: Missing Message   GO to Pinpoint Test G   HCM B14DA:01 Right Headlamp Light Distribution Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B14DA:64 Right Headlamp Light Distribution Actuator: Signal Plausibility Failure   GO to Pinpoint Test I   HCM B14DA:87 Right Headlamp Light Distribution Actuator: Missing Message   GO to Pinpoint Test F   HCM B14DA:87 Right Headlamp Light Distribution Actuator: Missing Message   GO to Pinpoint Test G   HCM B14DB:01 Left Headlamp Driver Control System: General Electrical Failure   GO to Pinpoint Test I   HCM B14DB:54 Left Headlamp Driver Control System: Missing Calibration   GO to Pinpoint Test I   HCM B14DB:55 Left Headlamp Driver Control System: Not Configured   GO to Pinpoint Test I   HCM B14DB:87 Left Headlamp Driver Control System: Missing Message   GO to Pinpoint Test F   HCM B14DB:87 Left Headlamp Driver Control System: Missing Message   GO to Pinpoint Test G   HCM B14DC:01 Right Headlamp Driver Control System: General Electrical Failure   GO to Pinpoint Test I   HCM B14DC:54 Right Headlamp Driver Control System: Missing Calibration   GO to Pinpoint Test I   HCM B14DC:55 Right Headlamp Driver Control System: Not Configured   GO to Pinpoint Test I   HCM B14DC:87 Right Headlamp Driver Control System: Missing Message   GO to Pinpoint Test F   HCM B14DC:87 Right Headlamp Driver Control System: Missing Message   GO to Pinpoint Test G   HCM B1559:96 Left Headlamp: Component Internal Failure   GO to Pinpoint Test I   HCM B155A:96 Right Headlamp: Component Internal Failure   GO to Pinpoint Test I   HCM B15A6:01 Right Matrix Controller Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B15A6:87 Right Matrix Controller Actuator: Missing Message   GO to Pinpoint Test F   HCM B15A6:87 Right Matrix Controller Actuator: Missing Message   GO to Pinpoint Test G   HCM B15A7:01 Left Matrix Controller Actuator: General Electrical Failure   GO to Pinpoint Test I   HCM B15A7:87 Left Matrix Controller Actuator: Missing Message   GO to Pinpoint Test F   HCM B15A7:87 Left Matrix Controller Actuator: Missing Message   GO to Pinpoint Test G   HCM B1A59:1C Sensor 5 Volt Supply: Circuit Voltage Out of Range   GO to Pinpoint Test H   HCM B1D64:01 Left Headlamp Swiveling Motor: General Electrical Failure   GO to Pinpoint Test I   HCM B1D64:87 Left Headlamp Swiveling Motor: Missing Message   GO to Pinpoint Test F   HCM B1D64:87 Left Headlamp Swiveling Motor: Missing Message   GO to Pinpoint Test G   HCM B1D65:01 Right Headlamp Swiveling Motor: General Electrical Failure   GO to Pinpoint Test I   HCM B1D65:87 Right Headlamp Swiveling Motor: Missing Message   GO to Pinpoint Test F   HCM B1D65:87 Right Headlamp Swiveling Motor: Missing Message   GO to Pinpoint Test G   HCM B1D68:64 Left Headlamp Swiveling Feedback Sensor: Signal Plausibility Failure   GO to Pinpoint Test I   HCM B1D69:64 Right Headlamp Swiveling Feedback Sensor: Signal Plausibility Failure   GO to Pinpoint Test I   HCM C1A03:12 Left Front Height Sensor: Circuit Short To Battery   GO to Pinpoint Test H   HCM C1A03:14 Left Front Height Sensor: Circuit Short To Ground or Open   GO to Pinpoint Test H   HCM C1A03:29 Left Front Height Sensor: Signal Invalid   GO to Pinpoint Test H   HCM C1A03:64 Left Front Height Sensor: Signal Plausibility Failure   GO to Pinpoint Test H   HCM C1A05:12 Left Rear Height Sensor: Circuit Short To Battery   GO to Pinpoint Test H   HCM C1A05:14 Left Rear Height Sensor: Circuit Short To Ground or Open   GO to Pinpoint Test H   HCM C1A05:29 Left Rear Height Sensor: Signal Invalid   GO to Pinpoint Test H   HCM C1A05:64 Left Rear Height Sensor: Signal Plausibility Failure   GO to Pinpoint Test H   HCM U0121:00 Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information   GO to Pinpoint Test J   HCM U0146:00 Lost Communication With Serial Data Gateway "A": No Sub Type Information   GO to Pinpoint Test K   HCM U0151:00 Lost Communication With Restraints Control Module: No Sub Type Information   GO to Pinpoint Test M   HCM U0212:00 Lost Communication With Steering Column Control Module: No Sub Type Information   GO to Pinpoint Test L   HCM U023A:00 Lost Communication With Image Processing Module A: No Sub Type Information   GO to Pinpoint Test N   HCM U0415:00 Invalid Data Received From Anti-Lock Brake System (ABS) Control Module: No Sub Type Information   GO to Pinpoint Test P   HCM U0429:00 Invalid Data received from Steering Column Control Module: No Sub Type Information   GO to Pinpoint Test P   HCM U0447:00 Invalid Data Received From Serial Data Gateway "A": No Sub Type Information   GO to Pinpoint Test P   HCM U0452:00 Invalid Data Received From Restraints Control Module: No Sub Type Information   GO to Pinpoint Test P   HCM U053B:00 Invalid Data Received From Image Processing Module A: No Sub Type Information   GO to Pinpoint Test P   HCM U2024:51 Control Module Cal-Config Data: Not Programmed   GO to Pinpoint Test O   HCM U2024:57 Control Module Cal-Config Data: Invalid / Incompatible Software Component   GO to Pinpoint Test O   HCM U2100:00 Initial Configuration Not Complete: No Sub Type Information   GO to Pinpoint Test O   HCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information   GO to Pinpoint Test O   HCM U2101:56 Control Module Configuration Incompatible: Invalid / Incompatible Configuration   GO to Pinpoint Test O   HCM U2101:86 Control Module Configuration Incompatible: Signal Invalid   GO to Pinpoint Test O   HCM U2200:45 Control Module Configuration Memory Corrupt: Program Memory Failure   GO to Pinpoint Test O   HCM U3000:45 Control Module: Program Memory Failure   GO to Pinpoint Test O   HCM U3000:46 Control Module: Calibration / Parameter Memory Failure   GO to Pinpoint Test O   HCM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test Q   HCM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test R   SCCM B124C:96 Turn Indicator Stalk Switch Pack: Component Internal Failure   GO to Pinpoint Test E   SCCM B124C:9E Turn Indicator Stalk Switch Pack: Stuck On   GO to Pinpoint Test E Symptom Chart Symptom Chart: Headlamps Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
