Lincoln Aviator: Lighting / Lighting Control
Lighting Control Selections
Press the toggle switch upward or downward to make a selection.
Note: An indicator illuminates next to the active selection.
Lamps off.
Parking lamps, instrument panel
lamps, license plate lamps and rear
lamps.
Autolamps.
Headlamps on.
Note: The lighting control defaults to autolamps each time you switch your vehicle on.
Switching High Beam Headlamps On and Off

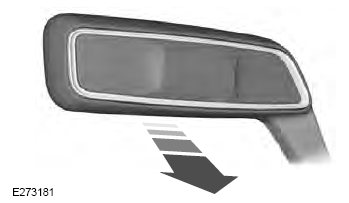

Push the lever away from you to
switch the high beam on.
Push the lever forward again or pull the lever toward you to switch the high beams off.
Flashing High Beam Headlamps
Pull the lever toward you and release it to flash the high beam headlamps.
General Information
Condensation in the Exterior Front Lamps and Rear Lamps
Exterior front lamps and rear lamps have
vents to accommodate normal changes in
air pressure...
Autolamps and Instrument Lighting Dimmer
Autolamps
WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not turn
the headlamps on in low visibility
conditions, for example daytime fog...
