Lincoln Aviator 2020-2025 Service Manual / Electrical / Climate Control System / Rear Climate Control / Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

Lincoln Aviator: Rear Climate Control / Removal and Installation - Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

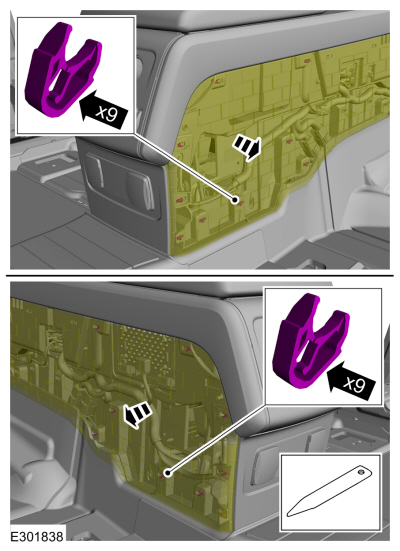

  1. Release the clips and position aside the side panel consoles.
    Use the General Equipment: Interior Trim Remover

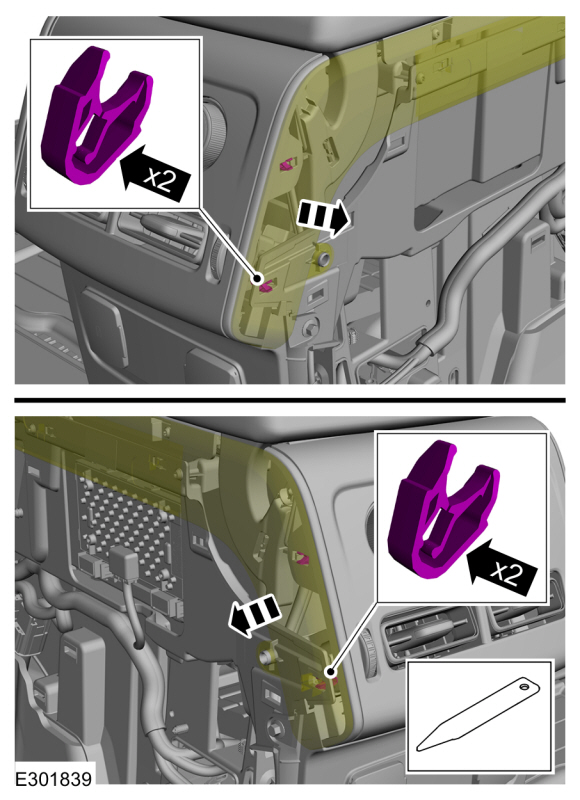

  1. Release the clips and position aside the upper side panel consoles.
    Use the General Equipment: Interior Trim Remover

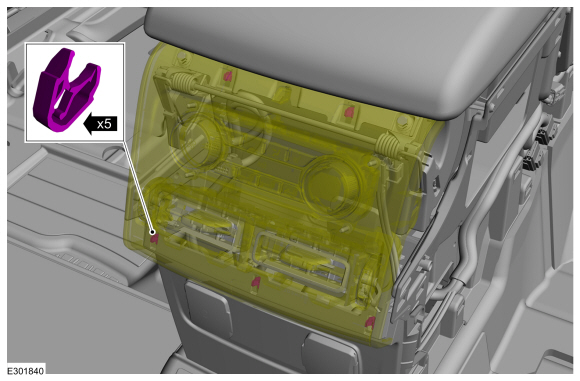

  1. Release the clips and position the floor console upper rear trim panel.
    Use the General Equipment: Interior Trim Remover

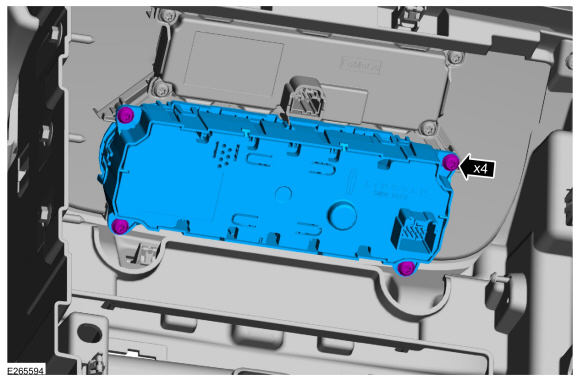

  1. Remove the screws and the Rear HVAC Control Module.

Installation

  1. To install, reverse the removal procedure.
