Lincoln Aviator: Roof Sheet Metal Repairs / Removal and Installation - Roof Front Frame
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment |
Spot Weld Drill Bit |
Locking Pliers |
Removal
-
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information. Failure to follow this instruction may result in serious
personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
-
Remove the roof panel.
Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
-

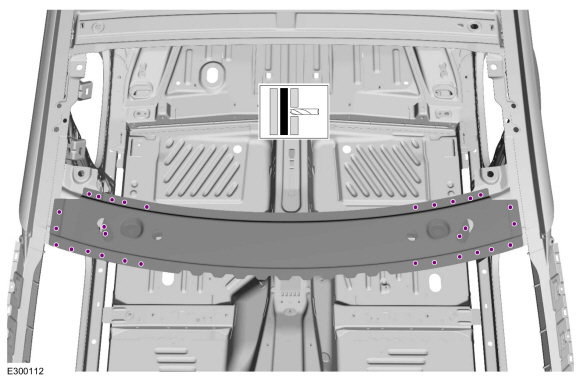

Remove the welds.
Use the General Equipment: Spot Weld Drill Bit
-

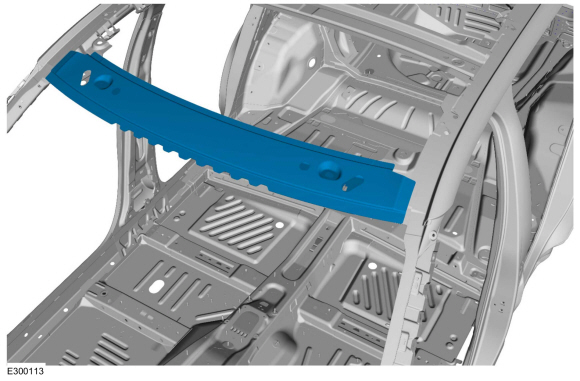

Remove the roof front frame.
Installation
-
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information. Failure to follow this instruction may result in serious
personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
-

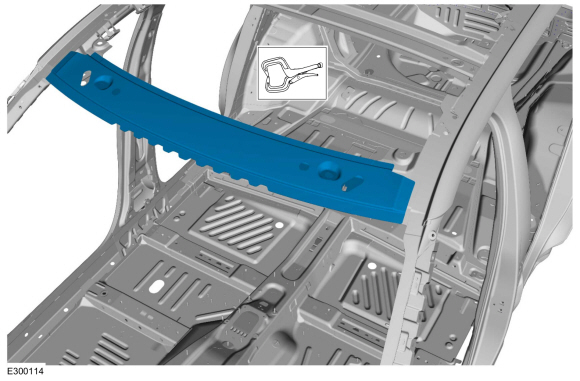

Install, properly position and clamp the roof front frame.
Use the General Equipment: Locking Pliers
-
NOTE:
Factory welds may be replaced with resistance spot welds or MIG
plug welds. Resistance spot welds may not be placed directly over
original location. They must be placed adjacent to original location and
equal factory welds in quantity. MIG plug welds must equal factory welds in both location and quantity

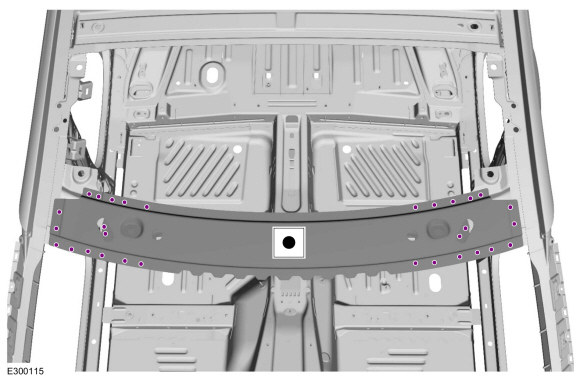

Install the welds.
Use the General Equipment: Resistance Spotwelding Equipment
-
Install the roof panel.
Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
