Lincoln Aviator: Roof Opening Panel / Removal and Installation - Roof Opening Panel Fixed Glass
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

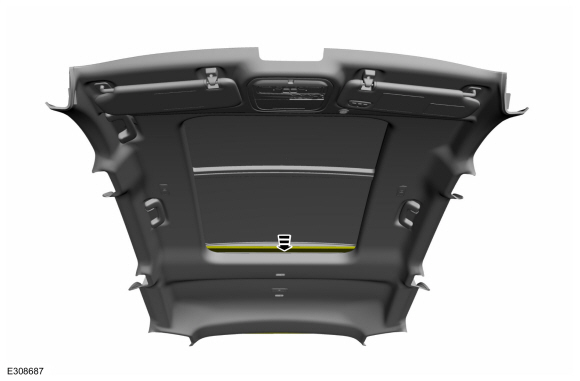

Place the roof opening panel shield to the fully OPEN position.
-
On both sides.

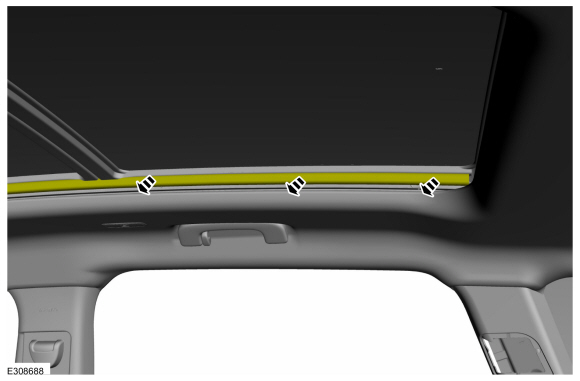

Detach part of the roof opening panel seal from the roof opening panel frame as necessary.
-
On both sides.

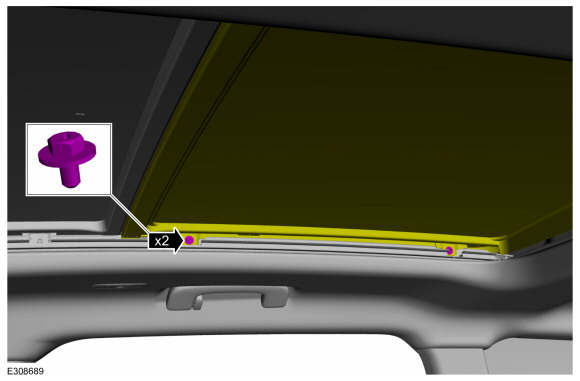

Remove the roof opening panel fixed glass screws.
Torque:
53 lb.in (6 Nm)
-
NOTE:
The roof opening panel fixed glass frame is extended under the front sliding glass panel.
With the help of an assistant.

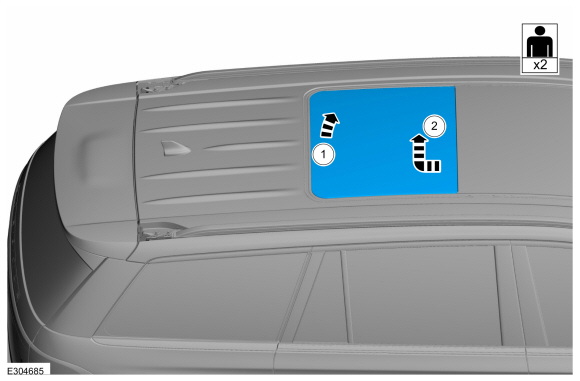

Remove the roof opening panel fixed glass.
-
Lift the rear of the roof opening panel fixed glass.
-
Remove the roof opening panel fixed glass.
Installation
-
To install, reverse the removal procedure.
-
Align the roof opening panel fixed glass.
Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
Removal
The roof opening panel control switch is replaced as an assembly with the overhead console.
Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Place the roof opening panel shield to the fully OPEN position...
