Lincoln Aviator: Rear Suspension / Removal and Installation - Wheel Studs
Special Tool(s) /
General Equipment
Removal
-
Remove the wheel bearing and wheel hub.
Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
-

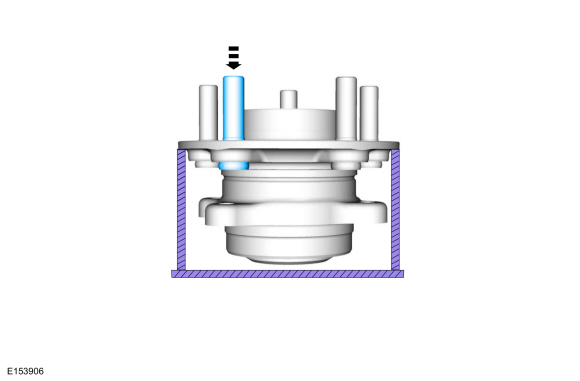

Press the wheel stud from the wheel bearing and wheel hub flange.
Use the General Equipment: Hydraulic Press
-

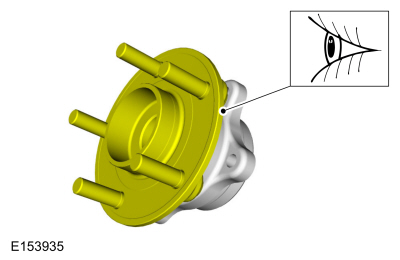

Visual check.
Inspect the wheel bearing and wheel hub flange for corrosion or damage. Replace as necessary.
Installation
-

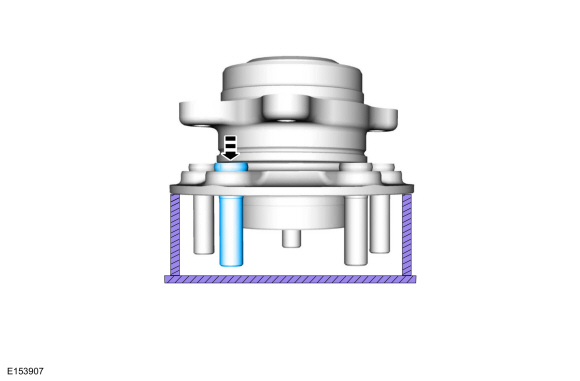

Press the wheel stud into the wheel bearing and wheel hub flange until fully seated.
Use the General Equipment: Hydraulic Press
-
Install the wheel bearing and wheel hub.
Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
