Lincoln Aviator: Storage Compartments

OVERHEAD CONSOLE

Lincoln Aviator. Storage Compartments

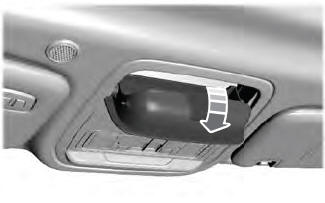

Press near the rear edge of the door to open it.
