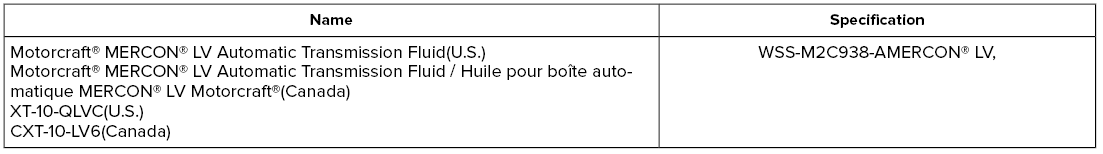

Lincoln Aviator: Capacities and Specifications - Excluding: Plug-In Hybrid Electric Vehicle (PHEV) / Transfer Case
Capacities

Materials

Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B1449:12
Trailer Tow Park/Tail Lamp Output: Circuit Short To Battery
GO to Pinpoint Test C
BCM
B1449:14
Trailer Tow Park/Tail Lamp Output: Circuit Short To Ground or Open
GO to Pinpoint Test C
TRM
B10E8:4B
Secondary Battery Relay "A": Over Temperature
GO to Pinpoint Test E
TRM
B1D08:11
Left Trailer Direction Indicator: Circuit Short To Ground
GO to Pinpoint Test B
TRM
B1D08:12
Left Trailer Direction Indicator: Circuit Short To Battery
GO to Pinpoint Test B
TRM
B1D09:11
Right Trailer Direction Indicator: Circuit Short To Ground
GO to Pinpoint Test B
TRM
B1D09:12
Right Trailer Direction Indicator: Circuit Short To Battery
GO to Pinpoint Test B
TRM
U0140:00
Lost Communication With Body Control Module: No Sub-Type Information
GO to Pinpoint Test F
TRM
U1000:00
Solid State Driver Protection Active -Driver Disabled: No Sub Type Information
GO to Pinpoint Test H
TRM
U2100:00
Initial Configuration Not Complete: No Sub Type Information
GO to Pinpoint Test G
TRM
U3000:49
Control Module: Internal Electronic Failure
GO to Pinpoint Test H
Symptom Charts
Symptom Chart: Trailer Lamps
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
System Operation
System Diagram
Item
Description
1
Fuel tank filler pipe
2
Fuel delivery module (FDM)
3
Fuel level sensor (FLS)
4
Fuel tank
5
Vapor recirculation line
6
Fuel tank pressure (FTP) sensor and tube
7
EVAP vapor blocking valve (VBV)
8
EVAP carbon canister
9
EVAP canister valve
10
EVAP canister inlet filter
11
Fresh air vent tube
12
Fuel bundle
13
EVAP purge valve (EPV) and tube
14
Intake manifold
Evaporative Emission (EVAP) Systems
The EVAP
system prevents fuel vapor build up in the sealed fuel tank...
