Removal

  WARNING: Disconnect the 12 volt battery before servicing the direct current to alternating current (DC-AC) inverter or alternating current (AC) powerpoint to prevent the risk of high voltage shock. Failure to follow this instruction may result in serious personal injury.

  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

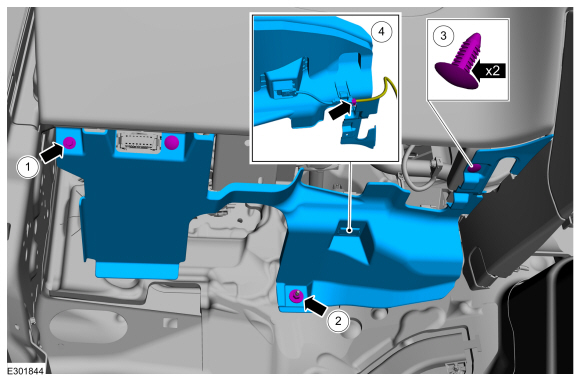

  1. Remove the retainers and the drivers side insulation panel.
    1. Remove the bolt.
      Torque: 27 lb.in (3 Nm)
    1. Remove the nut and the push pins.
      Torque: 27 lb.in (3 Nm)

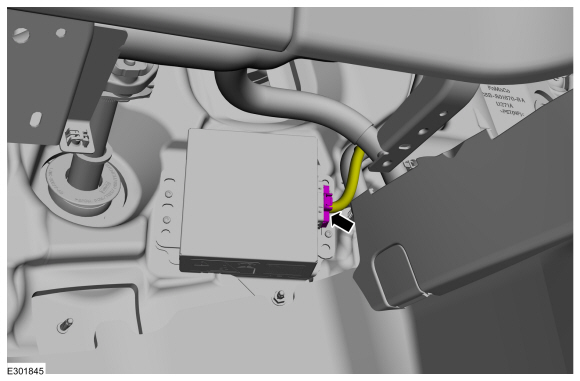

    1. Disconnect the electrical connector.
  1. Disconnect the electrical connector.

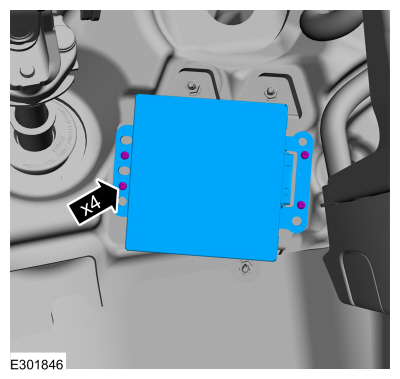

  1. Remove the screws and the Direct Current/Alternating Current (DC/AC) inverter.

Installation

  1. To install, reverse the removal procedure.
