Lincoln Aviator: Voltage Converter/Inverter / Removal and Installation - Alternating Current (AC) Power Outlet Socket - Plug-In Hybrid Electric Vehicle (PHEV)
Special Tool(s) /
General Equipment
Removal
WARNING:
Disconnect the 12 volt battery before servicing the direct
current to alternating current (DC-AC) inverter or alternating current
(AC) powerpoint to prevent the risk of high voltage shock. Failure to
follow this instruction may result in serious personal injury.
-
Disconnect the negative battery cable from the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-

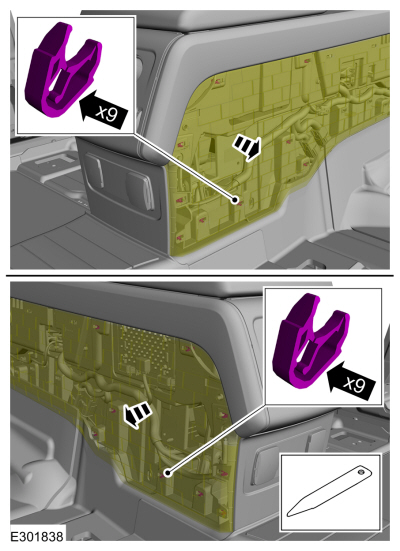

Release the clips and position aside the side panel consoles.
Use the General Equipment: Interior Trim Remover
-

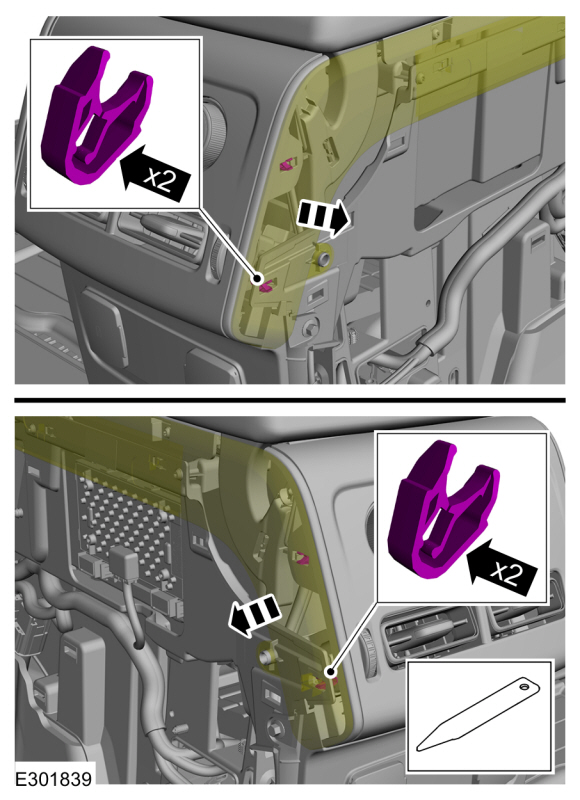

Release the clips and position aside the upper side panel consoles.
Use the General Equipment: Interior Trim Remover
-

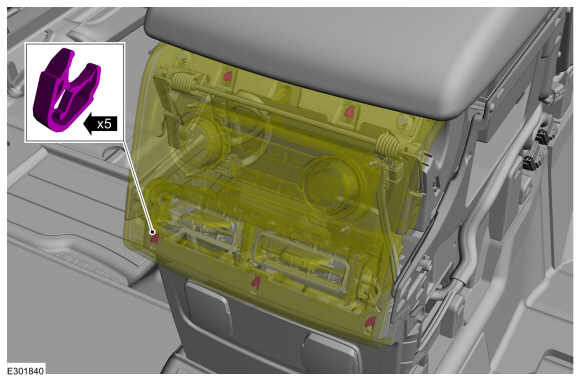

Release the clips and position the floor console upper rear trim panel.
-

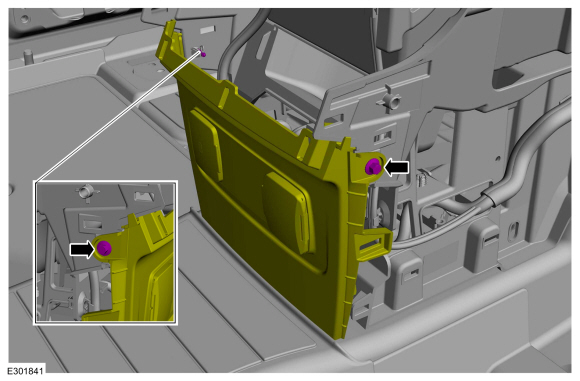

Remove the screws and position the floor console rear trim panel out.
Torque:
27 lb.in (3 Nm)
-

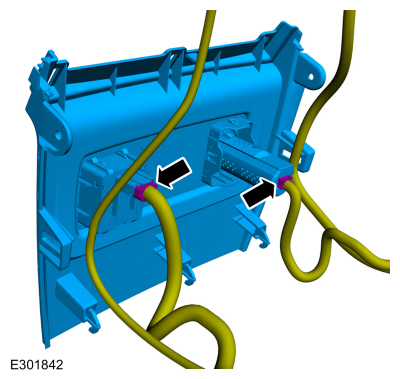

Disconnect the electrical connectors and remove the floor console rear trim panel.
-

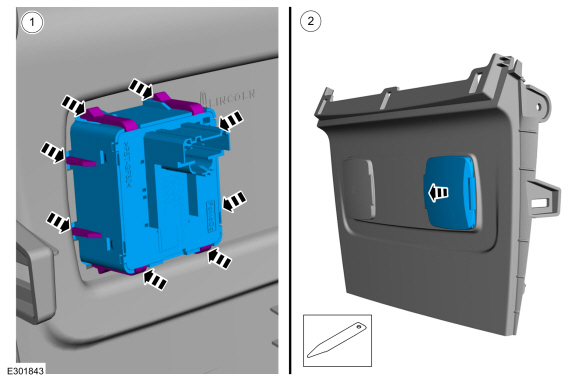

Press the retainers inward and remove the AC power outlet socket.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
Removal
WARNING:
Disconnect the 12 volt battery before servicing the direct
current to alternating current (DC-AC) inverter or alternating current
(AC) powerpoint to prevent the risk of high voltage shock...
