Lincoln Aviator 2020-2026 Service Manual / Powertrain / Engine / Engine - 3.0L EcoBoost / Description and Operation - Engine Component View
Lincoln Aviator: Engine - 3.0L EcoBoost / Description and Operation - Engine Component View

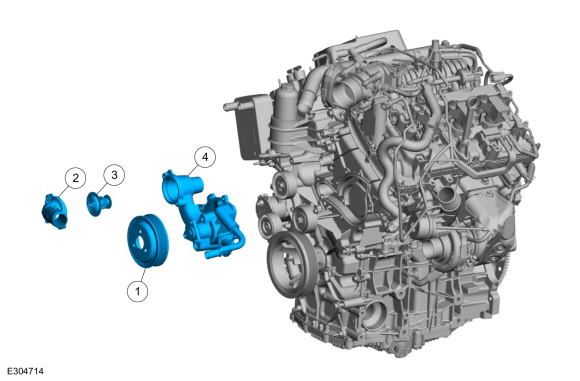

Engine — Front Components (1 of 3)
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A5288A528 | Coolant pump pulley |
| 2 | 8K5288K528 | Coolant inlet |
| 3 | 85758575 | Thermostat |
| 4 | 85018501 | Coolant pump |

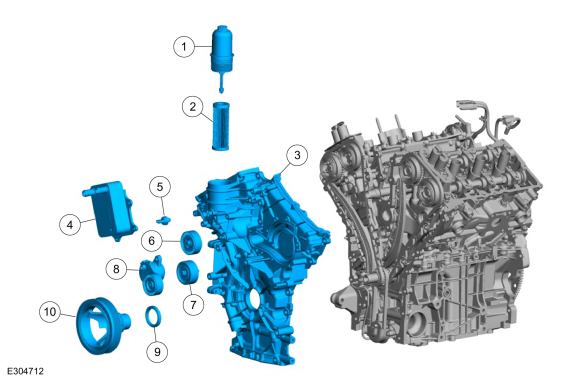

Engine — Front Components (2 of 3)
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A8326A832 | Oil filter housing |
| 2 | 67316731 | Oil filter |
| 3 | 60196019 | Engine front cover |
| 4 | 6A6426A642 | Oil cooler |
| 5 | 9D2909D290 | Engine oil pressure sensor |
| 6 | 19A21619A216 | Idler pulley |
| 7 | 19A21619A216 | Idler pulley |
| 8 | 6A2286A228 | Belt tensioner |
| 9 | 67006700 | Crankshaft front oil seal |
| 10 | 63166316 | Crankshaft pulley |

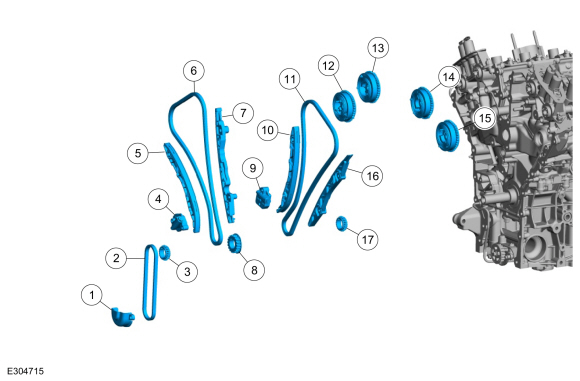

Engine — Front Components (3 of 3)
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 66166616 | Cover |
| 2 | 6B6516B651 | Belt |
| 3 | 63066306 | Crankshaft sprocket |
| 4 | 6L2666L266 | RH timing chain tensioner |
| 5 | 6K2556K255 | RH timing chain tensioner arm |
| 6 | 62686268 | RH timing chain |
| 7 | 6M2566M256 | RH timing chain guide |
| 8 | 63066306 | Crankshaft sprocket |
| 9 | 6L2666L266 | LH timing chain tensioner |
| 10 | 6K2556K255 | LH timing chain tensioner arm |
| 11 | 62686268 | LH timing chain |
| 12 | 6B2976B297 | RH exhaust variable Camshaft Timing (VCT) unit |
| 13 | 6B2976B297 | RH intake variable Camshaft Timing (VCT) unit |
| 14 | 6B2976B297 | LH intake variable Camshaft Timing (VCT) unit |
| 15 | 6B2976B297 | LH exhaust variable Camshaft Timing (VCT) unit |
| 16 | 6B2746B274 | LH timing chain guide |
| 17 | 63066306 | Crankshaft sprocket |

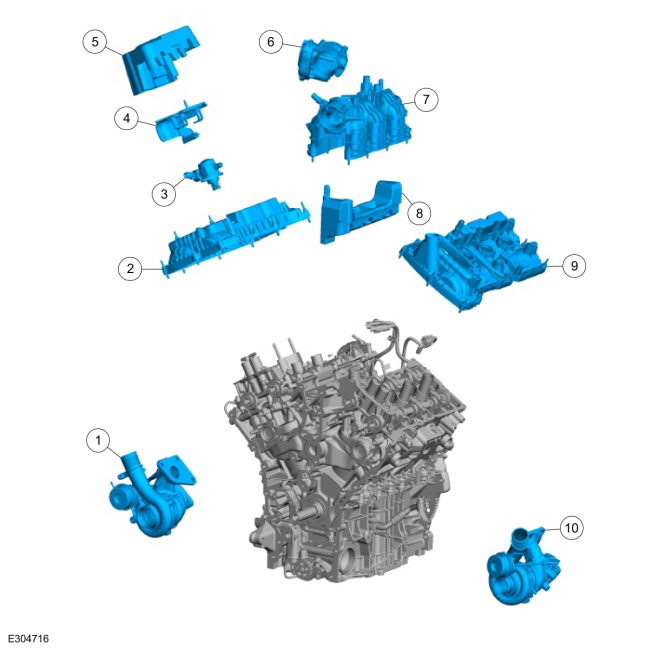

Engine — Upper Components (1 of 2)
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K6826K682 | RH turbocharger |
| 2 | 65826582 | RH valve cover |
| 3 | 9D3769D376 | High pressure fuel pump |
| 4 | 9A3979A397 | High pressure fuel pump shield |
| 5 | 9U5509U550 | High pressure fuel pump insulator |
| 6 | 9F9919F991 | Throttle body |
| 7 | 94249424 | Intake manifold |
| 8 | 9U5509U550 | Insulator |
| 9 | 65826582 | LH valve cover |
| 10 | 6C8796C879 | LH turbocharger |

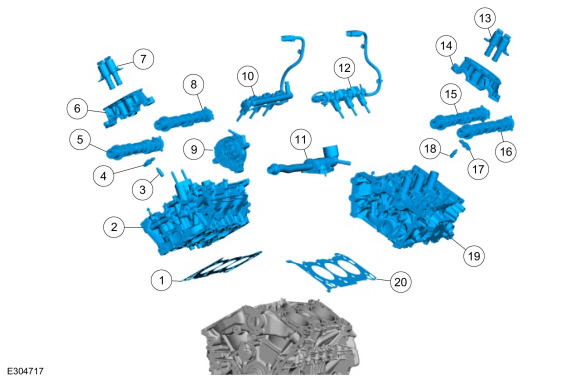

Engine — Upper Components (2 of 2)
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 60516051 | RH cylinder head gasket |
| 2 | 60496049 | RH cylinder head |
| 3 | 65006500 | Hydraulic lash adjuster (12 required) |
| 4 | 65646564 | Roller follower (12 required) |
| 5 | 62506250 | RH exhaust camshaft |
| 23 | — | Camshaft bearing cap (part of 6049) |
| 7 | 6C5246C524/6C525/6C525 | Variable Camshaft Timing (VCT) solenoid (2 required) |
| 8 | 62506250 | RH intake camshaft |
| 9 | 2A4512A451 | Vacuum pump |
| 10 | 9F7929F792 | RH Fuel rail |
| 11 | 85928592 | Coolant outlet connector pipe |
| 12 | 9F7929F792 | LH Fuel rail |
| 13 | 6C5246C524/6C525/6C525 | Variable Camshaft Timing (VCT) solenoid (2 required) |
| 23 | — | Camshaft bearing cap (part of 6049) |
| 15 | 62506250 | LH intake camshaft |
| 16 | 62506250 | LH exhaust camshaft |
| 17 | 65646564 | Roller follower (12 required) |
| 18 | 65006500 | Hydraulic lash adjuster (12 required) |
| 19 | 60496049 | LH cylinder head |
| 20 | 60516051 | LH cylinder head gasket |

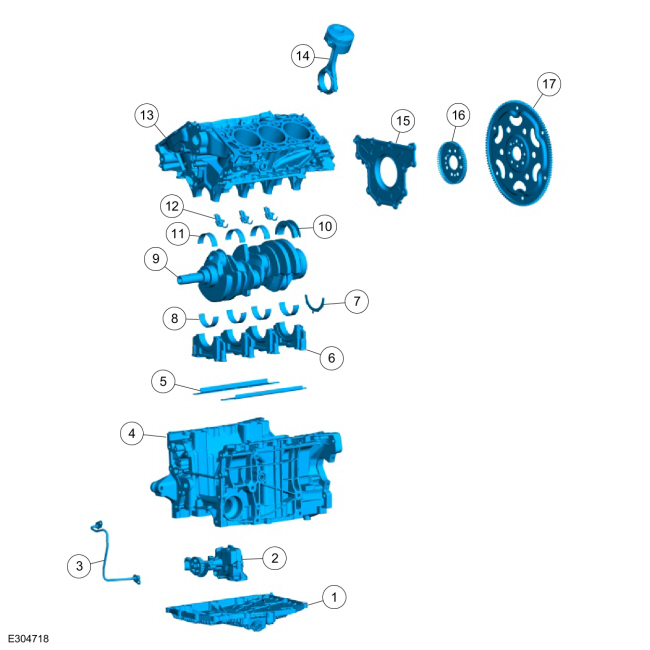

Engine — Lower Components
.jpg)
| Item | Part Number | Description |
|---|---|---|
| 1 | 66756675 | Oil pan |
| 2 | 66006600 | Oil pump |
| 6L6306L630 | Oil pump return tube | |
| 4 | 6U0046U004 | Engine block skirt stiffener |
| 5 | 6D3216D321 | Crankshaft main bearing cap support brace (2 required) |
| 6 | — | Crankshaft main bearing cap (part of 6010) (4 required) |
| 7 | 6K3026K302 | Lower thrust washer |
| 8 | 6A3386A338 | Crankshaft lower main bearing (4 required) |
| 9 | 63036303 | Crankshaft |
| 10 | 63376337 | Crankshaft upper thrust main bearing |
| 11 | 63336333 | Crankshaft upper main bearing (3 required) |
| 12 | 6A3406A340 | Piston oil coolers (3 required) |
| 13 | 60106010 | Cylinder block |
| 14 | 61006100 | Piston and rod assembly (6 required) |
| 15 | 6K3186K318 | Crankshaft rear seal retainer plate |
| 16 | 12A22712A227 | Crankshaft sensor ring |
| 17 | 63756375 | Flexplate |
Description and Operation - Engine - Overview
Overview
The 3.0L Gasoline Turbocharged Direct Injection (GTDI) (4V) is a V-6 engine with the following features:
Interference design engine
Dual overhead camshafts
Four valves per cylinder
Gasoline Turbocharged Direct Injection (GTDI)
Composite intake manifold
Aluminum cylinder heads
Compacted graphite iron cylinder block
Twin independent variable cam timing (Ti-VCT)
An electronic ignition system with 6 ignition coils
Continuous variable displacement oil pump
Engine Identification
For quick identification, refer to the safety certification decal...
Diagnosis and Testing - Engine
For gas engine mechanical diagnosis and testing, REFER to: Engine (303-00 Engine System - General Information, Diagnosis and Testing). For DTC (Diagnostic Trouble Code) related concerns, REFER to the Master DTC Chart...
