System Operation

Headlamps - Low Series

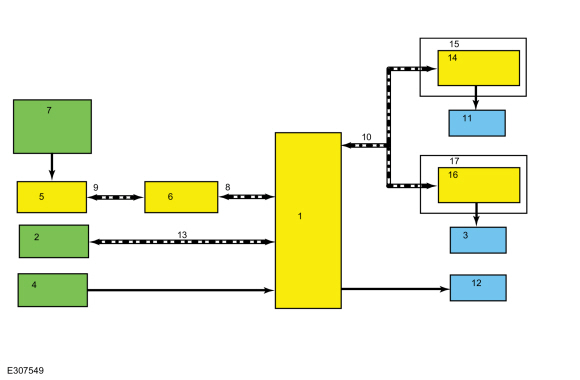

System Diagram

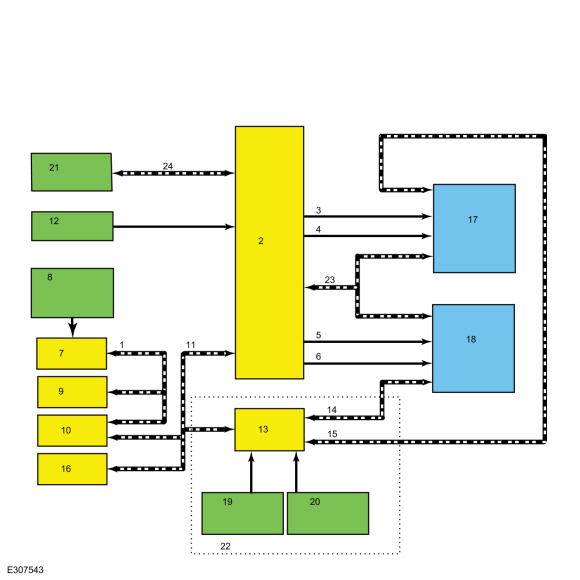

Item Description
1 HS-CAN2
2 BCM
3 LH low beam
4 LH high beam
5 RH low beam
6 RH high beam
7 SCCM
8 LH steering column multifunction switch
9 IPMA
10 GWM
11 HS-CAN1
12 Start/Stop switch
13 HCM
14 LIN
15 LIN
16 PCM
17 LH headlamp
18 RH headlamp
19 LH front suspension height sensor
20 LH rear suspension height sensor
21 Headlamp switch
22 (If equipped automatic headlamp leveling)
23 LIN
24 LIN

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Headlamp flash to pass status   GWM Indicates to the BCM a request for the high beams or flash-to-pass.
Auto high beam request   IPMA Indicates to the BCM a request for the high beams based on the IPMA camera input.

Low Beams

The headlamp switch sends a status message over the LIN circuit to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch). The BCM turns the parking lamps and headlamps on when the ignition is in RUN and the BCM detects a fault from the headlamp switch or wiring. This is normal behavior of the BCM when a fault has been detected with the inputs from the headlamp switch.

When the vehicle is in ON, the BCM supplies voltage to the top mounted headlamp LED control module attached to each headlamp assembly through the low beam headlamp circuit. The top mounted headlamp LED control module is used to power the low beam Light Emitting Diodes (LEDs).

The BCM also provides Field Effect Transistor (FET) protection of the low beam output circuits. When an excessive current draw is detected, the BCM disables the affected circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

High Beams

The SCCM monitors the LH steering column multifunction switch for a high beam request. When the LH steering column multifunction switch is in the HIGH BEAMS position, the SCCM sends a message over the HS-CAN2 to the GWM, then the GWM sends the message to the BCM over the HS-CAN1.

When the low beams are on and the BCM receives a request for high beams:

  • the low beam Light Emitting Diodes (LEDs) remains powered on and 2 high beam Light Emitting Diodes (LEDs) are also illuminated. This changes the headlamp beam pattern to illuminate a greater distance.
  • the BCM send a high beam request to the top mounted headlamp LED control module attached to each headlamp assembly through a dedicated LIN circuit.

When the vehicle is in ON, the BCM supplies voltage to the top mounted headlamp LED control module attached to each headlamp assembly through the high beam headlamp circuit. The headlamp LED driver module is used to control the high beam, Light Emitting Diodes (LEDs) If the high beam headlamp circuit is open or shorted, the top mounted headlamp LED control module uses the low beam headlamp circuit for power.

The BCM also provides Field Effect Transistor (FET) protection of the exterior lamps switched voltage and high beam output circuits. When an excessive current draw is detected, the BCM disables the affected circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Automatic High Beams

The automatic high beam system uses an interior rear view mirror mounted camera to monitor surrounding traffic conditions and high beam usage. The camera is hardwired to the IPMA. The IPMA communicates light information over the HS-CAN2 to the GWM then the GWM sends the information to the BCM over the HS-CAN1.

The automatic high beam feature is active only when the headlamp switch is in the AUTOLAMPS position.

During nighttime driving, the automatic high beam system automatically turns the high beams on if it is dark enough and no other traffic is present. When the system detects an approaching vehicle's headlamps or a preceding vehicle's rear lamps, the system turns off the high beams. When the approaching vehicle's headlamps or the preceding vehicle's rear lamps are no longer detected, the high beams automatically turn back on.

The IPMA turns the high beam headlamps on when the following conditions are met:

  • The feature has been enabled using the message center
  • The headlamp switch is in the AUTOLAMPS position and the autolamps feature has turned the exterior lamps on
  • The vehicle speed is greater than 51 km/h (32 mph)
  • The IPMA determines the ambient lighting conditions are dark enough
  • The IPMA does not detect any light source that can be interpreted as an illuminated vehicle lamp

The IPMA turns the high beams off if any of the following occur:

  • The IPMA detects any light source that can be interpreted as an illuminated vehicle lamp
  • The IPMA determines the ambient lighting conditions are not dark enough
  • The vehicle speed falls below 44 km/h (27 mph)
  • The autolamps are turned off
  • The IPMA determines the view is blocked

Flash-To-Pass

The SCCM monitors the LH steering column multifunction switch for a flash-to-pass request. When the LH steering column multifunction switch is in the FLASH-TO-PASS position, the SCCM sends a message over the HS-CAN2 to the GWM then the GWM sends the message to the BCM over the HS-CAN1.

When the ignition is in RUN and the flash-to-pass is requested, the high beams are activated as long as the LH steering column multifunction switch is held in the flash-to-pass position.

Headlamp Exit Delay

When the ignition is OFF and the LH steering column multifunction switch is placed in the FLASH-TO-PASS position and released, the parking lamps and low beams are illuminated. They remain illuminated until:

  • 3 minutes have elapsed with a door open.
  • 30 seconds have elapsed after all doors are closed.
  • the LH steering column multifunction switch is placed in the flash-to-pass position again.
  • the ignition switches to RUN.

Within the 30 second delay and all the doors closed, opening any door results in the 3 minute timer restarting.

Automatic Headlamp Leveling

The headlamp beam height is automatically adjusted according to vehicle load, speed, acceleration and braking data received from the ABS module, PCM, LH front suspension height sensor and LH rear suspension height sensor.

The front lighting uses a HCM to command the up/down aiming of the headlamp Light Emitting Diodes (LEDs) through the LIN to the headlamp assemblies. The headlamp assemblies contain a module that receive the messages through the LIN from the HCM.

Depending on the inputs received (steering wheel angle and vehicle speed for example), the HCM can command the height at which the headlamp LED is aimed (up or down) to improve nighttime visibility. Automatic headlamp leveling is activated when the headlamp switch is in the HEADLAMPS or AUTOLAMPS position.

When the top mounted headlamp LED control module first receives voltage when the ignition is ON, the and top mounted headlamp LED control module commands the headlamps up and down to initialize the system. During the initialization, the HCM runs diagnostics on the system and set Diagnostic Trouble Codes (DTCs) for applicable system faults.

Headlamps - High Series

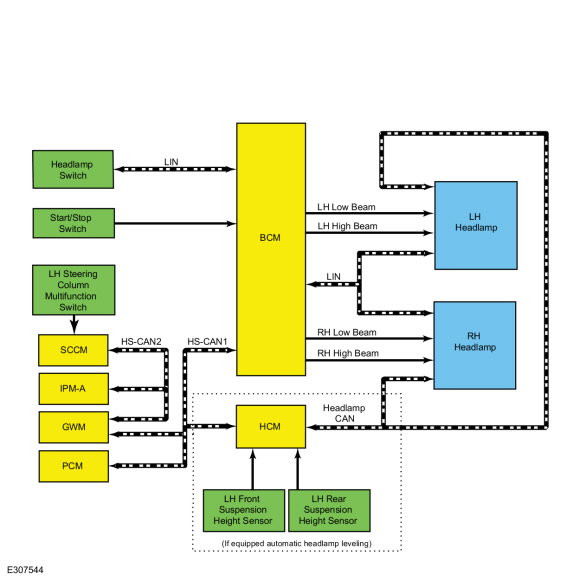

System Diagram


Item Description
1 HS-CAN2
2 BCM
3 LH low beam
4 LH high beam
5 RH low beam
6 RH high beam
7 SCCM
8 LH steering column multifunction switch
9 IPMA
10 GWM
11 HS-CAN1
12 Start/Stop switch
13 HCM
14 Headlamp CAN
15 PCM
16 LH headlamp
17 RH headlamp
18 LH front suspension height sensor
19 LH rear suspension height sensor
20 Headlamp switch
21 (If equipped automatic headlamp leveling)
22 LIN
23 LIN

Network Message Chart

  HCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Headlamp flash to pass status   SCCM Indicates to the BCM a request for the high beams or flash-to-pass.
Auto high beam request   IPMA Indicates to the BCM a request for the high beams based on the IPMA camera input.

Low Beams

The headlamp switch sends a status message over the LIN circuit to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch). The BCM turns the parking lamps and headlamps on when the ignition is in RUN and the BCM detects a fault from the headlamp switch or wiring. This is normal behavior of the BCM when a fault has been detected with the inputs from the headlamp switch.

When the vehicle is in ON, the BCM supplies voltage to the bottom mounted headlamp LED control module attached to each headlamp assembly through the low beam headlamp circuit. The bottom mounted headlamp LED control module is used to control the low beam Light Emitting Diodes (LEDs).

When the BCM receives a message requesting the headlamps on, it sends a low beam message over the LIN circuit to the bottom mounted headlamp LED control module attached to each headlamp assembly.

The BCM also provides Field Effect Transistor (FET) protection of the low beam output circuits. When an excessive current draw is detected, the BCM disables the affected circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

High Beams

The SCCM monitors the LH steering column multifunction switch for a high beam request. When the LH steering column multifunction switch is in the HIGH BEAMS position, the SCCM sends a message over the HS-CAN2 to the HCM, then the HCM sends the message to the bottom mounted headlamp LED control module attached to each headlamp assembly over a proprietary headlamp CAN.

When the low beams are on and the BCM receives a request for high beams, the low beam Light Emitting Diodes (LEDs) remains powered on and the high beam Light Emitting Diodes (LEDs) are also illuminated. This changes the headlamp beam pattern to illuminate a greater distance.

When the vehicle is in ON, the BCM supplies voltage to the bottom mounted headlamp LED control module attached to each headlamp assembly through the high beam headlamp circuit. The headlamp LED control module is used to control the high beam Light Emitting Diodes (LEDs).

The BCM also provides Field Effect Transistor (FET) protection of the exterior lamps switched voltage and high beam output circuits. When an excessive current draw is detected, the BCM disables the affected circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Automatic High Beams

The automatic high beam system uses an interior rear view mirror mounted camera to monitor surrounding traffic conditions and high beam usage. The camera is hardwired to the IPMA and serviced with the interior rear view mirror assembly. The IPMA communicates light information over the HS-CAN2 to the GWM then the GWM sends the information to the BCM over the HS-CAN1.

The automatic high beam feature is active only when the headlamp switch is in the AUTOLAMPS position.

During nighttime driving, the automatic high beam system automatically turns the high beams on if it is dark enough and no other traffic is present. When the system detects an approaching vehicle's headlamps or a preceding vehicle's rear lamps, the system turns off the high beams. When the approaching vehicle's headlamps or the preceding vehicle's rear lamps are no longer detected, the high beams automatically turn back on.

The IPMA turns the high beam headlamps on when the following conditions are met:

  • The feature has been enabled using the message center
  • The headlamp switch is in the AUTOLAMPS position and the autolamps feature has turned the exterior lamps on
  • The vehicle speed is greater than 51 km/h (32 mph)
  • The IPMA determines the ambient lighting conditions are dark enough
  • The IPMA does not detect any light source that can be interpreted as an illuminated vehicle lamp

The IPMA turns the high beams off if any of the following occur:

  • The IPMA detects any light source that can be interpreted as an illuminated vehicle lamp
  • The IPMA determines the ambient lighting conditions are not dark enough
  • The vehicle speed falls below 44 km/h (27 mph)
  • The autolamps are turned off
  • The IPMA determines the view is blocked

Flash-To-Pass

The SCCM monitors the LH steering column multifunction switch for a flash-to-pass request. When the LH steering column multifunction switch is in the FLASH-TO-PASS position, the SCCM sends a message over the HS-CAN2 to the GWM then the GWM sends the message to the BCM over the HS-CAN1.

When the ignition is in RUN and the flash-to-pass is requested, the high beams are activated as long as the LH steering column multifunction switch is held in the flash-to-pass position.

Headlamp Exit Delay

When the ignition is OFF and the LH steering column multifunction switch is placed in the FLASH-TO-PASS position and released, the parking lamps and low beams are illuminated. They remain illuminated until:

  • 3 minutes have elapsed with a door open.
  • 30 seconds have elapsed after all doors are closed.
  • the LH steering column multifunction switch is placed in the flash-to-pass position again.
  • the ignition switches to RUN.

Within the 30 second delay and all the doors closed, opening any door results in the 3 minute timer restarting.

Automatic Headlamp Leveling

The headlamp beam height is automatically adjusted according to vehicle load, speed, acceleration and braking data received from the ABS module, PCM, LH front suspension height sensor and LH rear suspension height sensor.

The front lighting uses a HCM to command the up/down aiming of the headlamp Light Emitting Diodes (LEDs) through the a proprietary headlamp CAN to the LED.

Depending on the inputs received (steering wheel angle and vehicle speed for example), the HCM can command the height at which the headlamp LED is aimed (up or down) to improve nighttime visibility. Automatic headlamp leveling is activated when the headlamp switch is in the HEADLAMPS or AUTOLAMPS position.

When the bottom mounted headlamp LED control module first receives voltage when the ignition is ON, the and bottom mounted headlamp LED control module commands the headlamps up and down to initialize the system. During the initialization, the HCM runs diagnostics on the system and set Diagnostic Trouble Codes (DTCs) for applicable system faults.

DRL

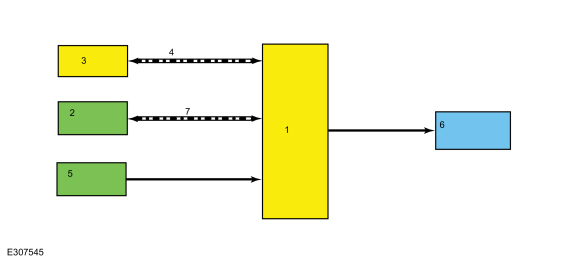

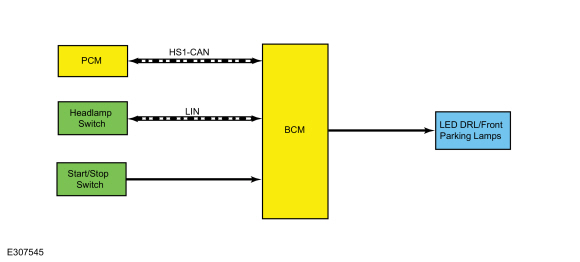

System Diagram


Item Description
1 BCM
2 Headlamp switch
3 PCM
4 HS-CAN1
5 Start/Stop switch
6 LED DRL/Front Parking Lamps
7 LIN

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Gear position   PCM Indicates the GSM request to the BCM. When the GSM has selected any position other than park, the BCM activates the DRL.

DRL

The DRL system illuminates the LED DRL/front parking lamps at full intensity in the headlamp assembly when the ignition is on, the headlamp switch is in the OFF or AUTOLAMPS position and the headlamps have not been turned on by the autolamp system.

When the vehicle is in ON, the BCM supplies voltage to the top mounted headlamp LED control module attached to each headlamp assembly. This top mounted headlamp LED control module is used to control the LED DRL/front parking lamps.

The BCM monitors the ignition status, the headlamp switch and autolamp status.

There are two types of DRL, conventional (where it is required) and configurable.

When equipped with conventional DRL, the DRL are active in any headlamp switch position except the HEADLAMPS position.

The conventional DRL are activated when the following conditions are met:

  • the ignition is ON
  • the headlamps switch is in OFF, PARKLAMPS or AUTOLAMPS position and the headlamps have not been turned on by the autolamp system.
  • the transmission is not in PARK

When equipped with configurable DRL, the DRL may be enabled through the IPC message center. When enabled, the DRL are active only in the AUTOLAMPS headlamp position. When autolamps request the headlamps on, the DRL are de-activated.

The configurable DRL are activated when the following conditions are met:

  • the ignition is ON.
  • the headlamps switch is in AUTOLAMPS position and the headlamps have not been turned on by the autolamp system.
  • the transmission is not in PARK.

When the transmission is in not in PARK, the PCM sends a message over the HS-CAN1 to the BCM indicating the transmission is not in PARK.

Autolamps

System Diagram

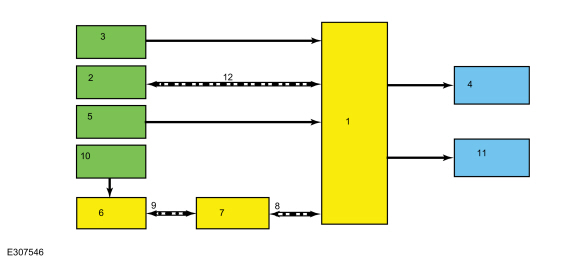

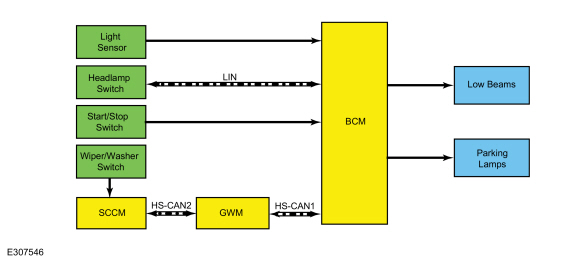

Item Description
1 BCM
2 Headlamp switch
3 Light sensor
4 Low beams
5 Start/Stop switch
6 SCCM
7 GWM
8 HS-CAN1
9 HS-CAN2
10 Wiper/Washer switch
11 Parking lamps
12 LIN

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Front wiper status   SCCM The BCM uses the wiper status information for the operation of the wiper activated headlamps feature.

Autolamps

The BCM monitors the light sensor with a voltage signal. The light sensor input to the BCM varies with the ambient light conditions.

The BCM monitors the headlamp switch circuits to indicate the headlamp switch position.

When the BCM receives a headlamp switch status indicating a request for the autolamps, the BCM monitors the light sensor for the ambient light condition. If the BCM determines the ambient light level is dark, the BCM illuminates the exterior lamps.

Headlamps On With Wipers On Function

When the headlamp switch is in the autolamps position, the exterior lamps turn on when the front wipers are in low or high. This feature does not activate the exterior lamps during a mist wipe, while the wipers are on to clear washer fluid during a wash condition or if the wipers are in automatic or intermittent modes.

The exterior lamps turn off when the ignition switches OFF or to ON mode, the headlamp switch is placed in the OFF position, or the front wipers are turned off. The exception to this is when the exterior lights are on because of darkness determined by the autolamp system.

Stoplamps

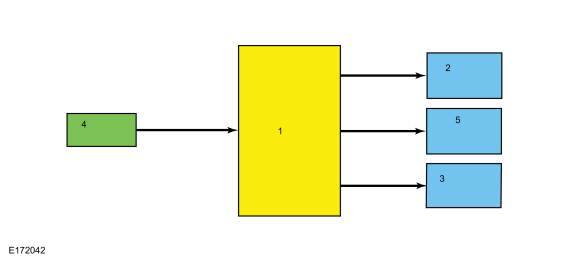

System Diagram

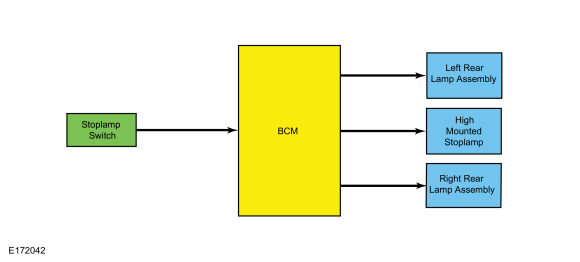

Item Description
1 BCM
2 LH rear lamp assembly
3 RH rear lamp assembly
4 Stoplamp switch
5 High mounted stoplamp

Stoplamps

The BCM monitors the input from the stoplamp switch. When the brake pedal is applied, voltage is routed to the BCM, indicating a request for the stoplamps. The BCM then supplies voltage to the stoplamps.

The BCM uses 3 separate output circuits. The LH stoplamp output circuit, RH stoplamp output circuit and high-mounted stoplamp output circuit.

The BCM also provides Field Effect Transistor (FET) protection of the stoplamp output circuits. When an excessive current draw is detected, the BCM disables the affected stoplamp circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Turn Signal and Hazard Lamps

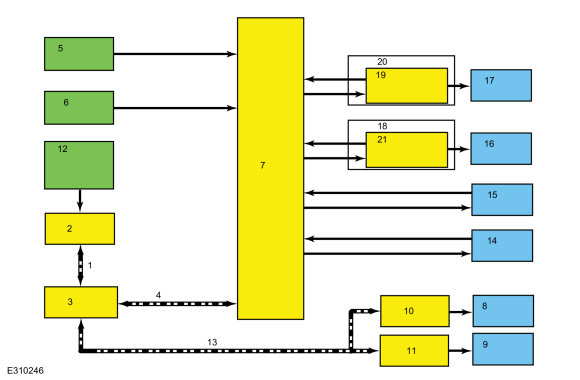

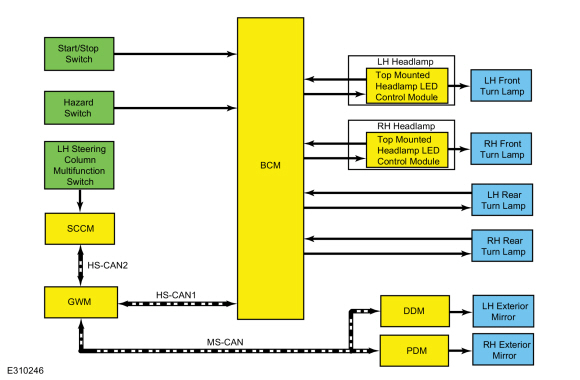

System Diagram


Item Description
1 HS-CAN2
2 SCCM
3 GWM
4 HS-CAN1
5 Start/Stop switch
6 Hazard switch
7 BCM
8 LH exterior mirror
9 RH exterior mirror
10 DDM
11 PDM
12 LH steering column multifunction switch
13 MS-CAN
14 RH rear turn lamp
15 LH rear turn lamp
16 RH front turn lamp
17 LH front turn lamp
18 RH headlamp
19 Top mounted headlamp LED control module
20 LH headlamp
21 Top mounted headlamp LED control module

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Turn signal switch status   GWM Indicates the turn signal stalk position on the LH steering column multifunction switch (left/right lane change or turn signal on or off). The BCM activates the left/right turn signals based on this input.

  DDM and PDM Network Input Messages


Broadcast Message Originating Module Message Purpose
Turn indication request   BCM A command to the DDM or PDM to activate/deactivate the exterior mirror turn indicator.

Turn Signals - Front

The SCCM monitors the LH steering column multifunction switch position. When the LH steering column multifunction switch is in the LH TURN or RH TURN position, the SCCM sends a message over the HS-CAN2 to the GWM then the GWM sends the message to the BCM over the HS-CAN1 indicating a request for the LH or RH turn signal.

When the ignition is ON, the BCM supplies voltage to the top mounted headlamp LED control module through the turn lamp voltage output circuit to power the turn lamp Light Emitting Diodes (LEDs) when commanded on.

For front turn lamps when the BCM receives a request for a turn signal, the BCM supplies on/off voltage to the top mounted headlamp LED control module mounted to the headlamp assembly. The top mounted headlamp LED control module sends voltage to the turn lamp Light Emitting Diodes (LEDs). During normal operation, when top mounted headlamp LED control module supplies voltage to the turn Light Emitting Diodes (LEDs), the top mounted headlamp LED control module sends the same voltage back to the BCM through the outage circuit. If the Light Emitting Diodes (LEDs) are inoperative the BCM does not receive this voltage feedback through the outage circuit.

The BCM also provides Field Effect Transistor (FET) protection of the turn lamp output circuits. When an excessive current draw is detected, the BCM disables the affected turn lamp circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Turn Signals - Rear

The SCCM monitors the LH steering column multifunction switch position. When the LH steering column multifunction switch is in the LH TURN or RH TURN position, the SCCM sends a message over the HS-CAN2 to the GWM then the GWM sends the message to the BCM over the HS-CAN1 indicating a request for the LH or RH turn signal.

When the BCM receives a request for a turn signal, the BCM supplies on/off voltage to the appropriate rear turn lamp Light Emitting Diodes (LEDs). The turn lamps are Light Emitting Diodes (LEDs) and have an outage circuit that tells the BCM when the Light Emitting Diodes (LEDs) are inoperative. During normal operation, when voltage is applied to the turn Light Emitting Diodes (LEDs), the feedback circuit sends the same voltage back to the BCM through the outage circuit. If the Light Emitting Diodes (LEDs) are inoperative the BCM does not receive this voltage feedback through the outage circuit.

The BCM also provides Field Effect Transistor (FET) protection of the turn lamp output circuits. When an excessive current draw is detected, the BCM disables the affected turn lamp circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Turn Signals - Exterior Mirrors

The SCCM monitors the LH steering column multifunction switch position. When the LH steering column multifunction switch is in the LH TURN or RH TURN position, the SCCM sends a message over the HS-CAN2 to the GWM then the GWM sends the message to the BCM over the HS-CAN1 indicating a request for the LH or RH turn signal.

When the BCM receives a request for a turn signal, the BCM sends a turn indicator command message over the HS-CAN1 to the GWM then the MS-CAN to the door modules for the exterior mirror turn lamps.

Hazard Lamps

The BCM sends a voltage signal to the hazard flasher lamp switch to monitor for a hazard lamp function request. When the hazard flasher lamp switch is pressed, the voltage signal is routed to ground, indicating a request to activate or deactivate the hazard lamp function.

When the BCM receives a request for the hazard lamps, the BCM supplies on/off voltage to all the turn lamps.

The timed on/off cycle for the hazard lamps is approximately 70 times per minute, regardless of bulb outage.

Cornering Lamps - Low Series

When the BCM receives a request for a turn signal, the BCM sends a turn indicator command message request to the top mounted headlamp LED control module attached to each headlamp assembly through a dedicated LIN circuit for the front cornering lamps.

The cornering lamps also illuminate when the vehicle speed is less than 40 km/h (25 mph) and the BCM receives a request for a turn signal or the steering wheel is turned greater than 35° from center.

The cornering lamps turn off when the BCM no longer receives a request for a turn signal and the steering wheel is turned less than 25° from center.

Cornering Lamps - High Series

When the SCCM sends a message over the HS-CAN2 to the HCM for a turn signal, the HCM sends the message to the bottom mounted headlamp LED control module attached to each headlamp assembly over a proprietary headlamp CAN to illuminate the corresponding cornering lamp Light Emitting Diodes (LEDs).

The cornering lamps also illuminate when the vehicle speed is less than 40 km/h (25 mph) and the BCM receives a request for a turn signal or the steering wheel is turned greater than 35° from center.

The cornering lamps turn off when the BCM no longer receives a request for a turn signal and the steering wheel is turned less than 25° from center.

Parking, Rear, and License Plate Lamps

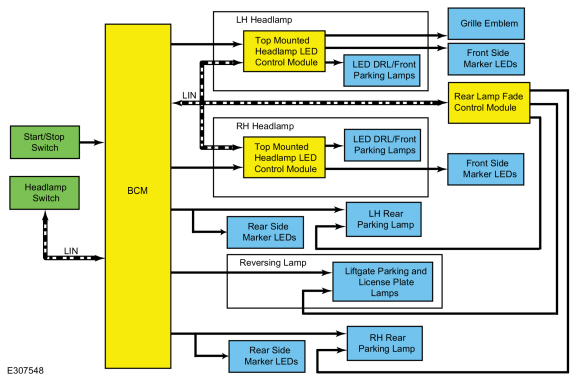

System Diagram


Item Description
1 BCM
2 Headlamp switch
3 RH rear parking lamp
4 LH rear parking lamp
5 Liftgate parking and license plate lamps
6 Start/Stop switch
7 LH Headlamp
8 Front Side marker Light Emitting Diodes (LEDs)
9 LIN
10 Rear lamp fade control module
11 RH Headlamp
12 Front Side marker Light Emitting Diodes (LEDs)
13 LED DRL/front parking lamps
14 LED DRL/front parking lamps
15 Reversing lamp
16 LIN
17 Grille emblem
18 Rear Side marker Light Emitting Diodes (LEDs)
19 Rear Side marker Light Emitting Diodes (LEDs)
20 Top mounted headlamp LED control module
21 Top mounted headlamp LED control module

Parking Lamps

The headlamp switch sends a status message over the LIN circuit to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch). The BCM turns the parking lamps and headlamps on when the ignition is in RUN and the BCM detects a fault from the headlamp switch or wiring. This is normal behavior of the BCM when a fault has been detected with the inputs from the headlamp switch.

For front parking lamps, when the BCM receives a request for parking lamps, the BCM sends a message over the LIN circuit to the top mounted headlamp LED control module to dim the LED DRL/front parking lamps.

For rear parking lamps, when the BCM receives a request for a parking lamps, the BCM supplies voltage to the rear parking lamps.

The BCM also provides Field Effect Transistor (FET) protection of the rear parking lamps output circuits. When an excessive current draw is detected, the BCM disables the affected rear parking lamps circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Approach Detection

The approach detection feature is used to passively activate the illuminated entry feature while approaching the vehicle. Illuminated entry includes ramping up the illumination of the vehicles parking lamps.

Once illuminated entry is activated, the BCM sends a message over the LIN circuit to both top mounted headlamp LED control modules (one mounted on each headlamp) and to the rear lamp fade control module.

For front parking lamps, when the top mounted headlamp LED control module receives the illuminated entry message from the BCM, the top mounted headlamp LED control module ramps up the front parking lamps.

For rear parking lamps, when the rear lamp fade control module receives the illuminated entry message from the BCM, the rear lamp fade control module supplies a PWM voltage to the each rear and liftgate parking lamps to ramp up illumination.

Fog Lamps

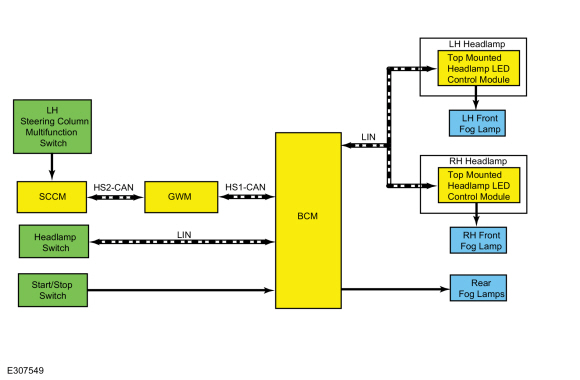

System Diagram


Item Description
1 BCM
2 Headlamp switch
3 RH front fog lamp
4 Start/Stop switch
5 SCCM
6 GWM
7 LH steering column multifunction switch
8 HS-CAN1
9 HS-CAN2
10 LIN
11 LH front fog lamp
12 Rear fog lamps
13 LIN
14 Top mounted headlamp LED control module
15 LH headlamp
16 Top mounted headlamp LED control module
17 RH headlamp

Fog Lamps

The headlamp switch sends a status message over the LIN circuit to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch). The BCM turns the parking lamps and headlamps on when the ignition is in RUN and the BCM detects a fault from the headlamp switch or wiring. This is normal behavior of the BCM when a fault has been detected with the inputs from the headlamp switch.

When the vehicle is in ON, the BCM supplies voltage to the front fog lamps through the front fog lamp output circuit.

When the BCM receives a request for the front fog lamps it sends a message over the LIN circuit to the top mounted headlamp LED control module attached to each headlamp assembly. When the top mounted headlamp LED control module receives the front fog lamp request it supplies a signal voltage to the front fog lamp Light Emitting Diodes (LEDs).

When the BCM receives input from the headlamp switch indicating a request for the rear fog lamp, the BCM provides voltage to the rear fog lamp.

The BCM also provides Field Effect Transistor (FET) protection of the fog lamp output circuit. When an excessive current draw is detected, the BCM disables the fog lamp output circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Reversing Lamps

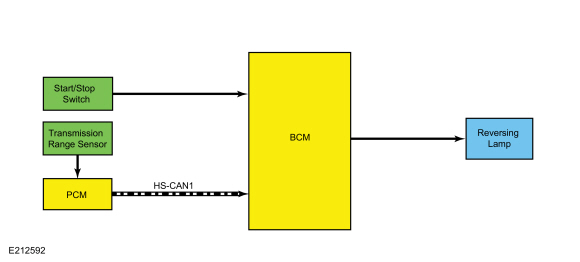

System Diagram


Item Description
1 HS-CAN1
2 Transmission range sensor
3 PCM
4 BCM
5 Reversing lamp
6 Start/Stop switch

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Gear position   PCM Indicates the transmission is in reverse gear to the BCM. When the transmission is in REVERSE and the ignition in RUN, the BCM provides voltage to the reversing lamps.

Reversing Lamps

When the transmission is in REVERSE, the PCM sends a message over the HS-CAN1 to the BCM indicating the transmission is in REVERSE. The BCM provides voltage to the reversing lamps when it receives the message that the transmission is in REVERSE and the ignition is in RUN.

The BCM also provides Field Effect Transistor (FET) protection of the reversing lamp output circuit. When an excessive current draw is detected, the BCM disables the affected reversing lamps circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Trailer Lamps

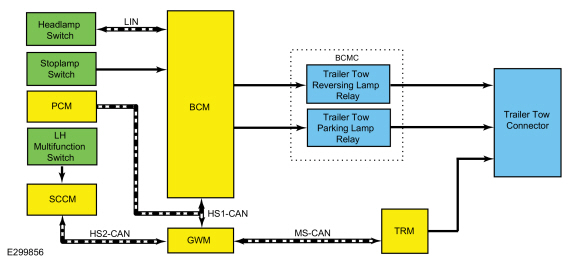

System Diagram


Item Description
1 MS-CAN
2 TRM
3 Trailer tow connector
4 BCMC
5 Trailer tow reversing lamp relay
6 Trailer tow parking lamp relay
7 HS-CAN1
8 BCM
9 Headlamp switch
10 Stoplamp switch
11 GWM
12 SCCM
13 LH steering column multifunction switch
14 HS-CAN2
15 PCM
16 LIN

Network Message Chart

  BCM Network Input Messages


Broadcast Message Originating Module Message Purpose
Gear position   PCM Indicates the transmission is in reverse gear to the BCM. When the transmission is in REVERSE and the ignition in RUN, the BCM provides voltage to the reversing lamps.
Turn signal switch status   SCCM Indicates the turn signal stalk position on the LH steering column multifunction switch (left/right lane change or turn signal on or off).

  TRM Network Input Messages


Broadcast Message Originating Module Message Purpose
Turn indication request   BCM A command to the TRM to activate/deactivate the turn indicator output to the trailer tow connector.
Stoplamp request   BCM A command to the TRM to activate/deactivate the stop lamps output to the trailer tow connector.

Trailer Stop-Turn Lamps

The SCCM monitors the LH multifunction switch position. When the LH multifunction switch is in the left or right turn position, the SCCM sends a message over the LIN to the BCM indicating a request for the LH or RH turn signal.

When the BCM receives a request for a turn signal, the BCM sends a turn indicator command message over the MS-CAN to the TRM to activate the requested turn indicator output to the trailer tow connector.

When the BCM receives input from the stoplamp switch indicating the brake pedal is being pressed, the TRM receives a stoplamp activation signal from the BCM.

Trailer Parking Lamps

The headlamp switch sends a headlamp switch status message over the LIN to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch).

When the parking lamps or headlamps position is selected, the BCM provides a ground path to the parking lamps trailer tow relay (integral to the BCMC). When the BCM provides ground the parking lamps trailer tow relay, the relay is energized and the relay provides parking lamp voltage to the trailer tow connector.

Trailer Reversing Lamps

When the transmission is in REVERSE, the PCM sends a message over the HS-CAN1 to the BCM indicating the transmission is in REVERSE. The BCM provides ground to the reversing lamps trailer tow relay (integral to the BCMC) when it receives the message the transmission is in REVERSE and the ignition is in RUN. When the BCM provides voltage to the reversing lamps trailer tow relay, the relay is energized and the relay provides reversing lamp voltage to the trailer tow connector.

Trailer Battery Charging

The TRM is supplied voltage for trailer battery charging from the BCMC.

The TRM provides voltage to the trailer tow connector for trailer battery charging when all the following are true:

  • The TRM detects that a trailer is connected.
  • The ignition is on and engine is running.
  • A brake pedal application has been detected in the present ignition cycle.
  • The BCM load shed strategy is not active (a message is displayed in the instrument cluster, such as Low Battery Features Temporarily Turned Off or Turn Power Off To Save Battery, to indicate that BCM load shed strategy is active).

Trailer And Lamp Outage Detection

The TRM detects a trailer is present when the brake pedal is pressed for approximately 2 seconds and the TRM senses resistance in the LHand RH brake/turn signal output circuits that is within a calibrated range. If the resistance is higher than the calibrated range on either the LH or RH brake/turn signal output circuits, the TRM reports a trailer lamp fault message. If the resistance is lower than the calibrated range on one of the LH or RH brake/turn signal output circuits when the brake is pressed during the ignition cycle, the TRM reports a trailer lamp fault message and the TRM sets a DTC.

Field Effect Transistor (FET) Protection

The TRM utilizes a Field Effect Transistor (FET) protective circuit strategy for its lamp output circuits. Output loads (current level) are monitored for excessive current (typically short circuits) and are shut down (turns off the voltage or ground provided by the module) when a fault event is detected.

A Field Effect Transistor (FET) is a type of transistor that the control module software uses to control and monitor current flow on module outputs. The Field Effect Transistor (FET) protection strategy prevents module damage in the event of excessive current flow.

Output loads (current level) are monitored for excessive current draw (typically short circuits). When a fault event is detected the Field Effect Transistor (FET) turns off and a short circuit DTC sets. The module resets the Field Effect Transistor (FET) protection and allows the circuit to function when the fault is corrected or the ignition state is cycled off and then back on.

When the excessive circuit load occurs often enough, the module shuts down the output until a repair procedure is carried out. Each Field Effect Transistor (FET) protected circuit has 3 predefined levels of short circuit tolerance based on a module lifetime level of fault events based upon the durability of the Field Effect Transistor (FET).

When each level is reached, the DTC associated with the short circuit sets along with DTC U1000:00. These Diagnostic Trouble Codes (DTCs) can be cleared using the module on-demand self-test, then the Clear DTC operation on the scan tool (if the on-demand test shows the fault corrected). The module never resets the fault event counter to zero and continues to advance the fault event counter as short circuit fault events occur.

If the number of short circuit fault events reach the third level, then Diagnostic Trouble Codes (DTCs) U1000:00 and U3000:49 set along with the associated short circuit DTC. DTC U3000:49 cannot be cleared and the module must be replaced after the repair.

Component Description

Headlamp Assembly

The headlamps utilize the top mounted headlamp LED control module (mounted to the headlamp assembly) that is used to control the headlamp daytime running/signature lamp Light Emitting Diodes (LEDs), front side marker lamps and front fascia mounted daytime running/supplemental parking lamps.

For The High Intensity Discharge (HID) headlamps, the headlamps utilize a ballast to power the High Intensity Discharge (HID) bulb. The headlamp assembly has an integrated solenoid activated shutter which changes the headlamp beam pattern when activated. The solenoid and shutter are not serviceable separately from the headlamp assembly. The headlamp assembly is provided power on independent circuits for the low beams and the high beams.

For LED headlamps, the headlamps utilize a ballast (headlamp LED driver module, mounted to the headlamp assembly) that is used to control the low and high beam Light Emitting Diodes (LEDs).

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur if the temperature is cold. When normal condensation occurs, a thin mist forms on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. The amount of time it takes to clear the lens of acceptable mist varies with ambient humidity and lamp types. Normal condensation clears from any lamp in 48 hours under dry conditions.

Do not replace a lamp assembly with acceptable levels of condensation such as:

  • presence of thin mist (no streaks, drip marks or droplets are present)
  • fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp housing leak):

  • water puddling inside the lamp
  • large water droplets, drip marks or streaks present on the interior of the lens

Headlamp Switch

The BCM monitors the headlamp switch position by sending voltage signals on multiple circuits to the headlamp switch. There is one circuit for each headlamp switch position. At any given time, one of the signal circuits is switched to ground to indicate the headlamp switch position.

Light Sensor

The BCM sends a voltage signal to the light sensor. The light sensor provides resistance between the voltage signal and ground. The resistance varies depending on the amount of ambient light detected by the light sensor. The brighter the ambient light, the lower the resistance. By varying the resistance, the BCM can determine the amount of ambient light.

Stoplamp Switch

The stoplamp switch is a normally open switch and is provided voltage at all times. When the brake pedal is applied, the switch closes and routes voltage to the BCM.

    Description and Operation - Exterior Lighting - Overview

    Overview Headlamps - Low Series The low series LED headlamp system consists of 3 low beam (outer) and 2 high beam (inner) non-replaceable Light Emitting Diodes (LEDs)...

    Diagnosis and Testing - Autolamps

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Other information:

    Lincoln Aviator 2020-2024 Service Manual: Removal and Installation - Second Row Center Seat


    Special Tool(s) / General Equipment Interior Trim Remover Removal   WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure...

    Lincoln Aviator 2020-2024 Service Manual: Removal and Installation - Brake Disc


    Materials Name Specification Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -  Removal   WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers...

    Categories

    Activating Intelligent Access

    The intelligent access key must be within 3 ft (1 m) of the door or luggage compartment you intend to lock or unlock.

    At a Door

    Electronic door handles are on each door. Gently depress the switch inside the exterior door handle to unlock and open the door. An unlock symbol illuminates on the door window trim indicating your vehicle is unlocked.

    Lincoln Aviator. Activating Intelligent Access

    read more


    Copyright © 2024 www.liaviator2.com
