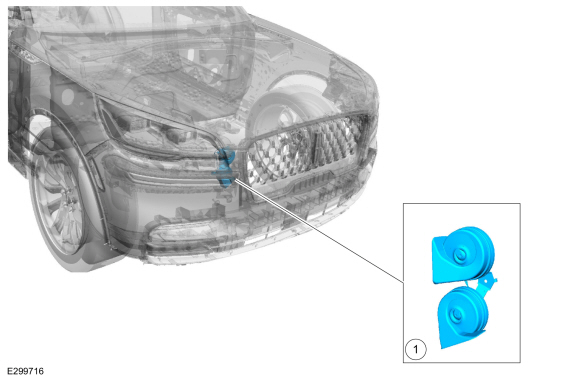

Lincoln Aviator: Horn / Description and Operation - Horn - Component Location
Item |
Description |
1 |
Horn assembly |
System Operation
System Diagram- Vehicles Without Adaptive Steering
Item
Description
1
Clockspring
2
Horn switch
3
SCCM
4
BCM
5
BCMC
6
Horn
Horn Operation - Vehicles Without Adaptive Steering
The
horn switch consists of 2 sets of contacts separated by springs...
