System Operation

System Diagram

NOTE: The system diagrams include all component options. Some components may not be equipped on the vehicle.

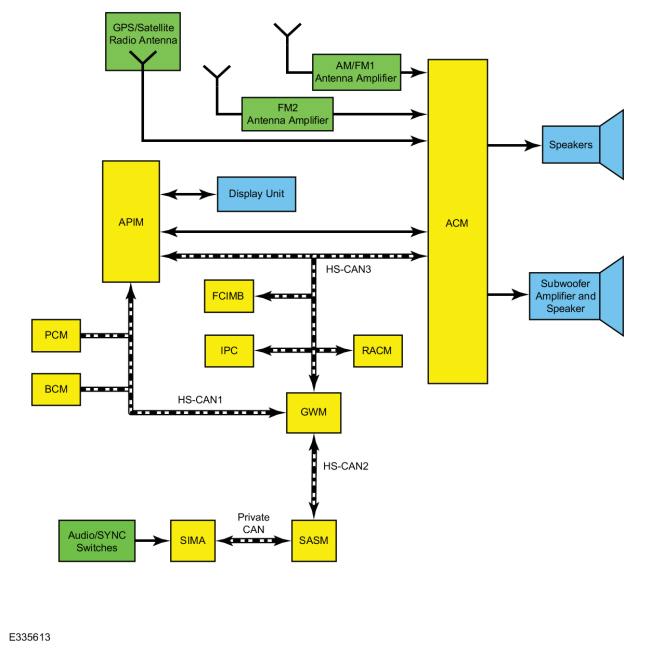

Audio System - 10 Speaker System


Item Description
1 APIM
2 AM/ FM1 Antenna Amplifier
3 Display Unit
4 GWM
5 BCM
6 ACM
7 FCIMB
8 IPC
9 GPS/Satellite Radio Antenna
10 RACM
11 Speakers
12 PCM
13 Audio/SYNC Switches
14 SIMA
15 FM2 Antenna Amplifier
16 SCCM
17 Subwoofer Amplifier and Speaker

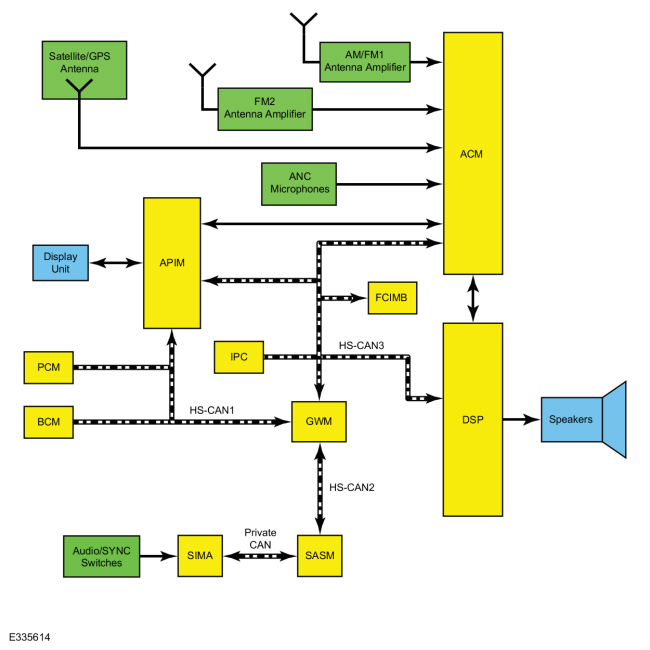

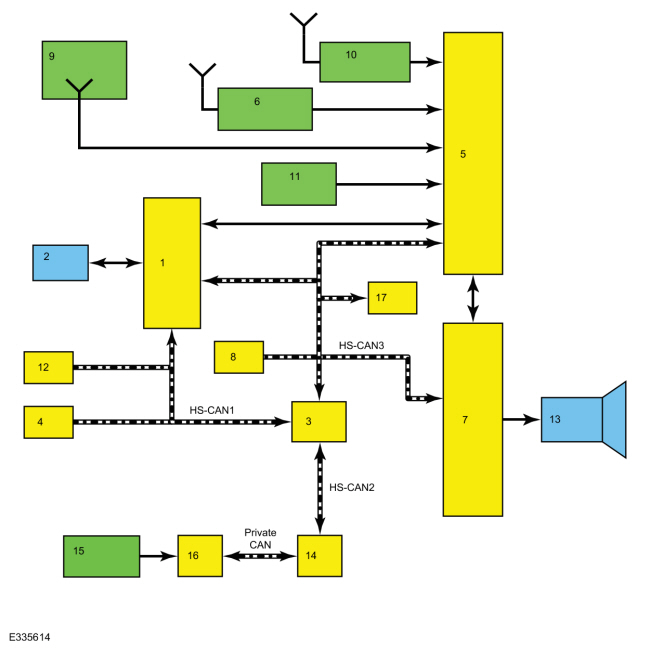

Audio System - 14 or 28 Speaker System


Item Description
1 APIM
2 Display Unit
3 GWM
4 BCM
5 ACM
6 FM2 Antenna Amplifier
7 DSP
8 IPC
9 Satellite/GPS Antenna
10 AM/ FM1 Antenna Amplifier
11 ANC Microphones
12 PCM
13 Speakers
14 SCCM
15 Audio/SYNC Switches
16 SIMA
17 FCIMB

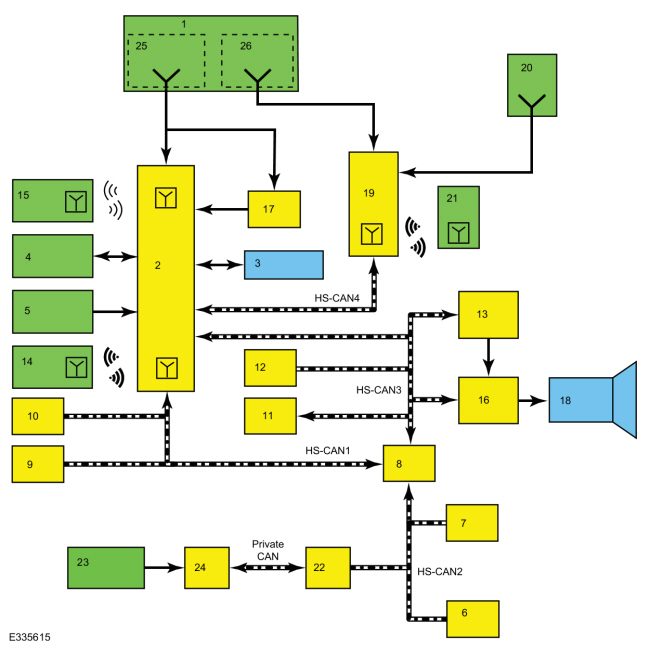

SYNC System


Item Description
1 Roof Antenna
2 APIM
3 Display Unit
4 Media Hub
5 Microphone
6 ABS Module
7 RCM
8 GWM
9 BCM
10 PCM
11 IPC
12 FCIMB
13 ACM
14 Wi-Fi Device
15 Bluetooth Device
16 DSP
17 ACM
18 Speakers
19 TCU
20 TCU Antenna
21 Wi-Fi Device
22 SCCM
23 Audio/SYNC Switches
24 SIMA
25 GPS/Satellite Radio Antenna
26 Cellular Antenna

Network Message Chart

  ACM Network Input Messages


Broadcast Message Originating Module Message Purpose
Accelerator pedal position   PCM Uses the accelerator pedal position percentage for the ANC system operation.
Accessory delay   BCM Determines the ANC system operating mode.
Battery saver status   BCM Disables the functionality of the ACM due to the load shedding feature.
Chime controls   IPC Controls the priority, characteristics, volume, and speaker output of the warning chime tones played through the audio system speakers.
Chime source   IPC Sets the audio system or IPC as the source for the chime tones.
Engine off status   PCM Enables/disables the ANC system if the engine is running/off.
FCIMB button state   FCIMB Indicate when a button is pressed on the FCIMB.
Ignition status   BCM Indicates the ignition mode.
MyKey Belt-Minder audio mute   IPC Mutes speaker output so the Belt-Minder tone can be more easily heard and limit the maximum audio system volume when a MyKey restricted key is in use.
Rear audio button status   RACM Controls some audio system functions from the rear seat.
Satellite radio request signals (if equipped)   APIM Carries out out various satellite radio functions using the touchscreen.
Steering wheel switch status   SCCM Indicates the button press status of the steering wheel switches.
SYNC alerts   APIM Controls the characteristics, volume, and speaker output of the SYNC notifications [text message, news, sports, weather, satellite radio artist/title favorites (if activated), and traffic alerts].
Vehicle configuration data   BCM Verifies vehicle configuration data such as the VIN and system module configuration.
Vehicle speed   PCM Used for the speed compensated volume function.

  APIM Network Input Messages


Broadcast Message Originating Module Message Purpose
Emergency Assist override status   IPC Enable or disables the Always on 911 Assist or emergency assistance MyKey feature as selected through the IPC while using an administrator MyKey.
Airbag deployment status   RCM Monitors airbag deployment status for 911 Assist or emergency assistance.
Date and time   BCM Displays the current date and time on the display unit.
Display language selection   IPC Displays information on the display unit in the language as selected by the user.
Call notification   RCM Notifies of a 911 Assist or emergency assist call being initiated due to airbag deployment.
FCIMB button state   FCIMB Indicates when a button is pressed on the FCIMB.
Ignition status   BCM Indicates the ignition mode.
Illumination dimming level   BCM Controls the backlight intensity.
Navigation rolling wheel count and direction ABS module Provides more accurate vehicle position tracking when the GPS signal is temporarily unavailable.
Steering wheel switch status   SCCM Indicates the button press status of the steering wheel switches.
Vehicle configuration data   BCM Verifies vehicle configuration data such as the VIN and system module configuration.
Vehicle speed   PCM Used for navigation functionality.

  DSP Network Input Messages


Broadcast Message Originating Module Message Purpose
Chime controls   IPC Controls the priority, characteristics, volume, and speaker output of the warning chime tones played through the audio system speakers.
Chime source   IPC Sets the audio system or IPC as the source for the chime tones.
Ignition status   BCM Indicates the ignition mode.
MyKey Belt-Minder audio mute   IPC Mutes speaker output so the Belt-Minder tone can be more easily heard.
MyKey volume limit status   IPC Limits the maximum audio system volume when a MyKey restricted key is in use.
Vehicle configuration data   BCM Verifies vehicle configuration data such as the VIN and system module configuration.

  FCIMB Network Input Messages


Broadcast Message Originating Module Message Purpose
Illumination dimming level   BCM Controls the backlight intensity.
Ignition status   BCM Indicates the ignition mode.
Vehicle configuration data   BCM Verifies vehicle configuration data such as the VIN and system module configuration.

  RACM Network Input Messages


Broadcast Message Originating Module Message Purpose
Ignition status   BCM Indicates the ignition mode.
Illumination dimming level   BCM Controls the backlight intensity.

  TCU Network Input Messages


Broadcast Message Originating Module Message Purpose
GPS data   APIM Indicates the vehicle location via the FordPass mobile application.
Ignition status   BCM Indicates the ignition mode.
Odometer master value   IPC Indicates the odometer value via the FordPass mobile application.
Transport mode   BCM Disables the functionality of the TCU until the vehicle is taken out of transport mode.
Vehicle lock status   BCM Indicates the vehicle lock/unlock mode.
Wi-Fi request   APIM Controls various Wi-Fi features, such as password and add/remove device.

Audio System

NOTE: Refer to the Owner Literature for additional details of the audio system.

ACM Operation

The ACM receives and sends network messages over the CAN. A diagnostic scan tool can retrieve Diagnostic Trouble Codes (DTCs), PID data and carry out other diagnostic functions for the ACM via the vehicle DLC.

The ACM is powered at all times and uses the ignition status message to control the on/off mode. The accessory delay feature is controlled by an ignition status message from the BCM.

The ACM takes various inputs such as radio waves and audio signals, conditions, amplifies and converts them to an analog audio signal. This signal can be amplified internally and sent directly to the speakers, or transmitted to a separate amplifier and speaker system.

The ACM uses the BCM ignition status message to temporarily mute audio output during engine cranking. This prevents the normal voltage spikes during engine cranking from producing popping noises in the audio system.

The ACM (or the DSP if equipped with 12 or 14 speakers) receives vehicle speed information from the PCM over the CAN to adapt the volume based on the different vehicle speeds.

AM/ FM/ DAB Radio

When the AM/ FM mode is selected, the radio amplifies radio waves sent from the antenna. It then selects the requested frequency, converts and amplifies the content. These fluctuating audio signals are output as AC output voltage to power the speakers or as an input to a separate amplifier.

If equipped with a FM2 antenna, FM radio waves are collected and sent to be amplified by the FM2 antenna amplifier. A coaxial antenna cable sends the amplified signal to the ACM. An ACM antenna signal comparator uses both antenna signals to reduce or eliminate FM distortion in poor signal environments.

If equipped with High Definition (HD) radio capability, the radio automatically detects and plays back the improved sound quality and multiple programs of HD broadcasts.

If equipped with DAB capability, the radio can provide improved sound quality and multiple programs of digital broadcasts.

Satellite Radio

If equipped with satellite radio capability, satellite signals collected by the satellite radio antenna can be selected and played back over the audio system. The satellite antenna sends satellite radio and GPS data through the satellite radio cable to a splitter (integrated into the cable). The satellite radio signals are separated by the splitter and sent to the satellite radio receiver within the ACM.

SYNC Input

The ACM receives stereo and monaural audio wired inputs from the SYNC system. These include USB or Bluetooth connected music sources, phone call audio, and more.

When the USB input mode is selected, the radio converts the digital media playback to analog audio signals. It amplifies and sends this output to the speakers.

If a compatible phone is paired with the SYNC system, phone call audio may be heard on the vehicle speakers and the spoken response is transmitted to outgoing phone call audio.

ACM Speaker Output - 10 Speaker System

The ACM is configured to directly power vehicle speakers. An amplifier in the final stage of the ACM sends an analog AC signal to drive the speakers. Output includes stereo and center channels. The ACM powers all of the vehicle speakers except the subwoofer speaker. A separate amplifier is used to amplify the audio signals to drive the subwoofer speaker.

A speaker circuit short to ground or power can be detected by the ACM. The ACM may disable speakers to prevent damage to the internal amplifier. A DTC sets to identify which speaker circuits are causing the concern.

ACM Signal/Speaker Output - 14 or 28 Speaker System

The ACM is configured to power none of the vehicle speakers. The ACM outputs audio data over an Automobile Audio Bus (A2B) cable to the DSP. The DSP powers all of the vehicle speakers. Output includes stereo, center and subwoofer channels.

A speaker circuit short to ground or power can be detected by the DSP. The DSP may disable speakers to prevent damage to the internal amplifier. A DTC sets to identify which speaker circuits are causing the concern.

ANC

The ANC feature reduces the level of occasional low frequency engine noise which competes with audio system playback.

The ACM determines the noise frequency to be canceled from the cabin by using engine data from the PCM.

While the engine is running, the ANC microphones monitor undesired noise in the passenger compartment. The microphones transmit this noise as analog signals to the ACM. The signals are processed to create an inverted phase sound wave with the same amplitude as the original sound. This noise-canceling sound created by the ACM is transmitted to the ACM outputs and externally to the DSP (if equipped). The final output by the ACM and the DSP is sent as fluctuating AC voltage to the speakers.

Remote Audio Controls

Steering Wheel Controls

The steering wheel switches contain a series of resistors. Each steering wheel audio function switch has a specific resistance value. The SIMA (left upper steering wheel switch) and switch assemblies are connected in a voltage divider circuit. The voltage drop over an internal SIMA resistor is changed by the different audio switch function resistances. The SIMA monitors the resultant voltage drop across its internal resistor to determine which steering wheel switch is pressed. The SIMA transmits the steering wheel switch inputs over a private CAN to the SCCM. The SCCM is the gateway module which then transmits the message to the ACM, to control audio functions.

Rear Audio Controls

The RACM sends network messages over the HS-CAN to the ACM to control audio system functions such as volume control and media mode. A diagnostic scan tool can retrieve Diagnostic Trouble Codes (DTCs) from the RACM.

SYNC System

NOTE: Refer to the Owner Literature for additional details of the SYNC system.

The APIM contains the SYNC software. The SYNC system connects various inputs over Bluetooth or USB connections to the car audio system. The SYNC system allows driver control of a phone, media device, and vehicle systems (navigation and climate control for example).

The APIM is powered at all times and uses the BCM ignition status message to control the on/off mode. The accessory delay feature is controlled by an ignition status message from the BCM.

SYNC Inputs

  • USB - media players or flash drives
  • Bluetooth - phones or media players
  • Display unit and FCIMB inputs or panel switches
  • Steering wheel switches
  • Voice microphone input
  • GPS data
  • Satellite serial data wired input from the ACM

SYNC Outputs

  • Display unit CAN messages
    • Audio system commands from the display unit
    • HVAC commands from the display unit
  • Wired outputs to the ACM
    • Stereo (2 channel) audio
    • Monaural voice responses, including navigation guidance (if equipped)
    • Monaural phone call audio and phone ringtone
  • Commands to a USB or Bluetooth device
    • Outgoing call commands
    • TTS information for a phone
    • USB device file selection for playback

Remote SYNC Controls

The steering wheel switches contain a series of resistors. Each steering wheel audio function switch has a specific resistance value. The SIMA (left upper steering wheel switch) and switch assemblies are connected in a voltage divider circuit. The voltage drop over an internal SIMA resistor is changed by the different audio switch function resistances. The SIMA monitors the resultant voltage drop across its internal resistor to determine which steering wheel switch is pressed. The SIMA transmits the steering wheel switch inputs over a private CAN to the SCCM. The SCCM is the gateway module which then transmits the message to the APIM, to control SYNC functions.

Bluetooth Mode

The APIM supports multiple Bluetooth profiles, allowing the SYNC system to interact with both Bluetooth-enabled phones and Bluetooth-enabled media devices.

USB Mode

The APIM receives serial data input from connected USB devices. The USB cables to the APIM are shielded to prevent interference from electromagnetic sources. The APIM provides 5 volt power for USB single ports.

Voice Commands

When the steering wheel voice button is pressed, a CAN message is sent to the APIM, initiating the voice command feature.

When voice commands are spoken, the monitored sounds are converted into analog signals by the microphone and sent to the APIM. The APIM software interprets them and outputs a command.

Compass

The GPS antenna (integral to the satellite radio antenna) is used to acquire the compass heading.

The compass data is sent through the GPS cable to the APIM. The APIM uses this data in addition to wheel speed and wheel rotation direction messages from the ABS module to calculate and provide accurate vehicle tracking. The APIM processes the data and transmits it through the LVDS cable to the display unit. In the event the GPS fix or signal is temporarily lost, the APIM continues to use CAN messages from the ABS module to maintain compass accuracy.

Navigation (if equipped)

The APIM receives GPS data from the satellite and the GPS antenna via a coaxial cable. The GPS data is used for the compass heading, vehicle location (in the event of airbag deployment) and navigation guidance. The APIM uses the GPS data along with ABS module wheel speed and rotation direction to provide accurate navigation tracking. In situations where the GPS signal is temporarily lost, the APIM continues to use the ABS module and vehicle acceleration data to continue vehicle tracking.

The navigation map data is stored in the APIM. It can be updated using a USB flash drive. The APIM processes the data and transmits it through the LVDS cable to display on the touchscreen.

SIRIUS™ Travel Link™

The SIRIUS™ Travel Link™ is a subscription-based service available on vehicles equipped with navigation. The satellite radio antenna receives digital signals containing Travel Link™ data. These signals are routed to the satellite radio receiver (integral to the ACM) from a splitter that is part of the GPS antenna coaxial cable. The satellite receiver decrypts the data and the ACM sends it through wired circuits to the APIM.

Certain date-dependent features (such as sports schedules and scores, movie times, or the 5-day weather forecast) require the ue of GPS data for accuracy. The APIM processes the data from the ACM and sends it to display on the touchscreen. The time intervals for each Travel Link category to update the data vary, depending on the category.

Digital Radio Data Link (if equipped)

The digital radio data link is a subscription-free based service available on vehicles equipped with navigation. The DAB radio antenna receives digital signals containing digital radio data. These signals are routed to the radio receiver (integral to the ACM) from audio unit antenna coaxial cable. The digital radio receiver decrypts the data and the ACM sends it through wired circuits to the APIM.

Certain date-dependent features (such as sports schedules and scores, movie times, or the 5-day weather forecast) require the use of GPS data for accuracy. The APIM processes the data from the ACM and sends it to display on the touchscreen. The time intervals for each category to update the data varies, depending on the category

SYNC Connect

The SYNC Connect system uses the TCU to communicate via the cellular network with a device running the SYNC Connect application. The TCU communicates with other vehicle modules over the CAN to obtain information or to carry out application commands, depending on the request.

The primary means of communication between the TCU and the cellular network uses a cellular antenna integrated into the GPS/Satellite antenna. A separate coaxial cable connects the cellular portion of the antenna to the TCU. The secondary means of communication between the TCU and the cellular network is the TCU antenna. The TCU antenna connects to the TCU via a coaxial cable.

SYNC Connect data is transmitted via the cellular network to a server or customer device with the SYNC Connect application installed. The data received via the cellular network from the device application is processed by the TCU, which can make vehicle system commands via the CAN.

Vehicle Wi-Fi Hotspot

The TCU provides the vehicle Wi-Fi access point.

The TCU communicates to the cellular network by two means. The primary connection is through the cable to the cellular antenna incorporated into the GPS/Satellite antenna. The secondary means is through the cable to the TCU antenna.

Component Description

Audio Unit Antenna

The audio unit antenna (also called the AM/ FM1 antenna) is an on-glass antenna, mounted to the right rear quarter glass window. It receives AM/ FM radio waves and sends them through the audio unit antenna amplifier to the ACM via the audio unit antenna coaxial cable (also called the AM/ FM1 antenna coaxial cable).

Audio Unit Antenna Amplifier

The audio unit antenna amplifier (also called the AM/ FM1 antenna amplifier) amplifies AM/ FM radio signals to improve reception. The amplified signal is sent through a coaxial cable to the ACM. The amplifier is powered by the ACM through the coaxial cable.

FM2 Antenna

The FM2 antenna is an on-glass antenna, mounted to the right rear quarter glass window. The FM2 antenna improves FM reception in urban areas or anywhere large objects reflect FM signals and create multiple FM signal paths.

FM2 Antenna Amplifier

The FM2 antenna amplifier amplifies FM radio signals and transmits them through a coaxial cable to the ACM. Voltage for the amplifier is provided by the ACM through the coaxial cable.

GPS/Satellite Radio Antenna

The GPS/satellite radio antenna contains a GPS antenna circuit board that receives radio waves containing GPS and satellite radio data. The data is sent through the coaxial cable to the APIM ( GPS data) and through a splitter to the ACM (satellite radio data).

Cellular Antenna

If equipped, the GPS/satellite radio antenna contains a cellular antenna circuit board that receives radio waves containing cellular data. The data is sent through the cellular antenna coaxial cable to the TCU.

TCU Antenna

The TCU antenna boosts reception for incoming and outgoing cellular network data. It is a compact, cellular phone type, planar inverted-F antenna.

Voice Microphone

The voice microphone is wired to the APIM and is mounted to the headliner.

ANC Microphones

The ANC microphones are connected to the ACM.

Steering Wheel Switches

The steering wheel switches contain a series of resistors. Each steering wheel audio function switch has a specific resistance value. The SIMA and switch assemblies are connected in a voltage divider circuit.

The SIMA is the left upper steering wheel switch.

The SIMA does not require PMI when it is replaced.

SCCM

The SCCM receives messages form the SIMA over a private CAN. It acts as a gateway module and relays messages over the network to the APIM and ACM, to control audio and SYNC system functions.

The SCCM requires PMI when it is replaced.

Media Hub

The media hub contains two USB ports, and is powered by the APIM. The media hub has an internal 5 volt power source for the USB ports. Each port consists of two circuit connections for the 5 volt power, plus two more circuits for digital serial data.

Data is sent from the two media hub USB ports to the APIM through a single USB cable. The media hub switch manages the data from the two sources.

LVDS Cable

The four-circuit shielded LVDS cable provides power and ground from the APIM to the display unit. Data is transmitted between the APIM and the display unit via the LVDS cable.

Display Unit

The display unit is also known as the touchscreen display (FDIM).

The APIM and the display unit exchange information via the LVDS cable. The APIM can communicate bezel test requests, display switch status, and display Diagnostic Trouble Codes (DTCs) over the CAN. The APIM provides the display unit with power and ground through the LVDS cable. The display unit does not communicate over the CAN.

FCIMB

The control or switch functions of the FCIMB are communicates primarily climate control and audio system related. The FCIMB requires PMI when it is replaced.

RACM

The touchscreen is used to adjust audio system volume and other functions. It communicates these inputs over the CAN. The RACM requires PMI when it is replaced.

ACM

The ACM carries out noise canceling to reduce cabin noise.

The ACM requires PMI when it is replaced.

DSP

The DSP is a power amplifier for the vehicle speakers. The audio input signal comes from the ACM via the Automobile Audio Bus (A2B) cable.

The DSP requires PMI when it is replaced.

TCU

The TCU connects the vehicle to a cellular network. It contains a non-serviceable internal SIM card. The TCU is assigned to the VIN of the vehicle and does not work in another vehicle.

The TCU requires PMI when it is replaced.

APIM

The APIM consists of two internal modules: the CIP and the VIP. The modules are integrated into the APIM but can be programmed individually if required.

The CIP connects to user devices via Bluetooth, USB or Wi-Fi.

The VIP provides vehicle information for the CIP and other SYNC Apps or functions. In addition, the VIP obtains information from the modules on the network for Diagnostic Trouble Codes (DTCs) when a vehicle health report is requested.

APIM Programming

The APIM CIP or VIP software can be updated. When directed by Ford service, the VIP programming is done via the CAN using a diagnostic scan tool.

The CIP programming may be done using the diagnostic scan tool, Wi-Fi or the SYNC USB connection.

The CIP may also be programmed by registered owners using the Ford owner website. Updates are written to a USB drive and taken to the vehicle USB for programming. After the update completes, the APIM CIP writes the new software level and VIN to the USB flash drive, which must be transmitted by the vehicle owner via the internet back to Ford.

BCM

The BCM contains the clock software and sends the date/time data information to other modules via the CAN.

The BCM requires PMI when replaced. Additionally, at least 2 keys must be programmed and the parameter reset procedure carried out.

BCM

The BCM contains the clock software and sends the date/time data information to other modules via the CAN.

    Description and Operation - Information and Entertainment System - Overview

    Audio System NOTE: Refer to the Owner Literature for additional details of the audio system. AM/ FM Radio The ACM can operate when the ignition is on or off...

    Diagnosis and Testing - Information and Entertainment System

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Other information:

    Lincoln Aviator 2020-2022 Service Manual: Description and Operation - Symbols Glossary


    Symbols are used inside the graphics and in the text area to enhance the information display. Movement Symbols Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements...

    Lincoln Aviator 2020-2022 Service Manual: General Procedures - Pyrotechnic Device Disposal


    Disposal Disposal of Deployable Devices and Pyrotechnic Devices That Are Undeployed-Inoperative NOTE: All inoperative airbags, seatbelt pretensioners and inflatable seatbelt inflators have been placed on the Mandatory Return List. Treat all discolored or damaged airbags the same as any inoperative live airbag being returned...

    Categories

    Fastening the Seatbelts

    The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts.

    Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure that you securely fasten the tongue in the buckle.

    Lincoln Aviator. Fastening the Seatbelts

    To unfasten, press the release button and remove the tongue from the buckle.

    read more


    Copyright © 2022 www.liaviator2.com
