Lincoln Aviator 2020-2025 Service Manual / Powertrain / Engine / Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ) / Description and Operation - Intake Air Distribution and Filtering - Component Location

Lincoln Aviator: Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ) / Description and Operation - Intake Air Distribution and Filtering - Component Location

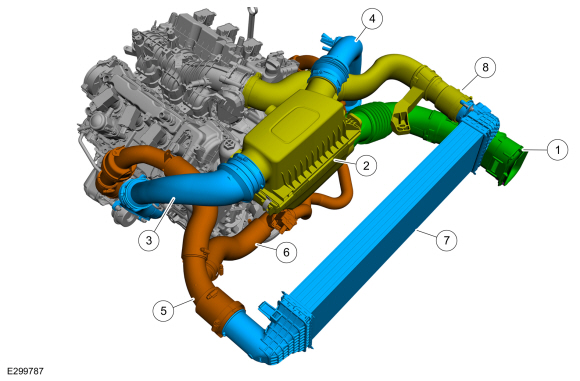

Intake Air Distribution and Filtering


Item Description
1 Air Intake pipe
2 Air cleaner assembly
3 Air cleaner outlet pipe RH
4 Air cleaner outlet pipe LH
5 CAC intake pipe RH
6 CAC intake pipe LH
7 CAC
8 CAC outlet pipe

    Description and Operation - Intake Air Distribution and Filtering - Overview

    Overview The air intake system cleans intake air with a replaceable, dry-type engine Air Cleaner (ACL) element made of treated, pleated paper. A new Air Cleaner (ACL) element must be installed periodically as scheduled...

    Description and Operation - Intake Air Distribution and Filtering - System Operation and Component Description

    System Operation Adaptive Airflow Some vehicles equipped with electronic throttle control (ETC) have an adaptive airflow strategy that allows the PCM to correct for changes in the airflow...
