Lincoln Aviator 2020-2026 Service Manual / Electrical / Electronic Feature Group / Multifunction Electronic Modules / Description and Operation - Module Controlled Functions - Component Location

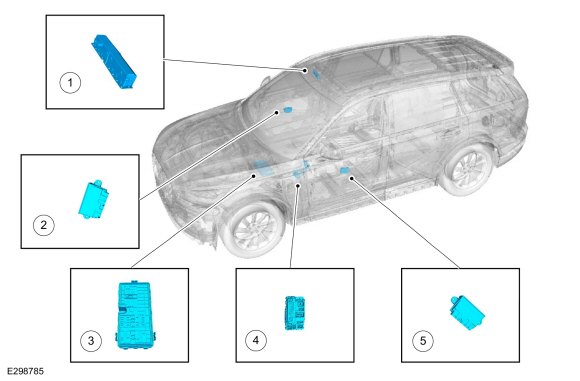

Lincoln Aviator: Multifunction Electronic Modules / Description and Operation - Module Controlled Functions - Component Location

Item	Description
1	RTM
2	PDM
3	BCMC
4	BCM
5	DDM

Multifunction Electronic Modules

Description and Operation - Module Controlled Functions - Overview
