Lincoln Aviator: Parking Aid - Vehicles With: Parking Aid Camera / Description and Operation - Parking Aid - Component Location

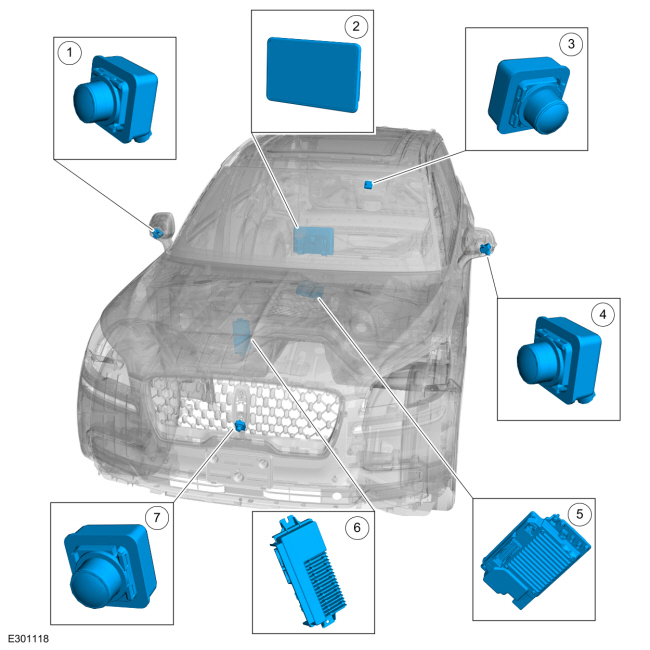

Component Location - Parking Aid Camera
| Item |
Description |
| 1 |
RH side parking aid camera |
| 2 |
Audio system display |
| 3 |
Rear parking aid camera |
| 4 |
LH side parking aid camera |
| 5 |
APIM (rear only parking aid camera system) |
| 6 |
IPMB (360 degree view camera system) |
| 7 |
Front parking aid camera |
Overview
Rear Only Parking Aid Camera
The
rear parking aid camera system visually aids the driver while reversing
or reverse parking the vehicle...
Other information:
Note: The system may not correctly operate
when towing a trailer. For vehicles with an
approved trailer tow module and tow bar,
the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer...
DTC Chart: Roof Opening Panel
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
BCM Module DTC Chart
DTC
Description
Action
B12F4:12
Vehicle Speed Output: Circuit Short To Battery
GO to Pinpoint Test A
B12F4:14
Vehicle Speed Output: Circuit Short To Ground or Open
GO to Pinpoint Test A
-
All other BCM Diagnostic Trouble Codes (DTCs)
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing)...
