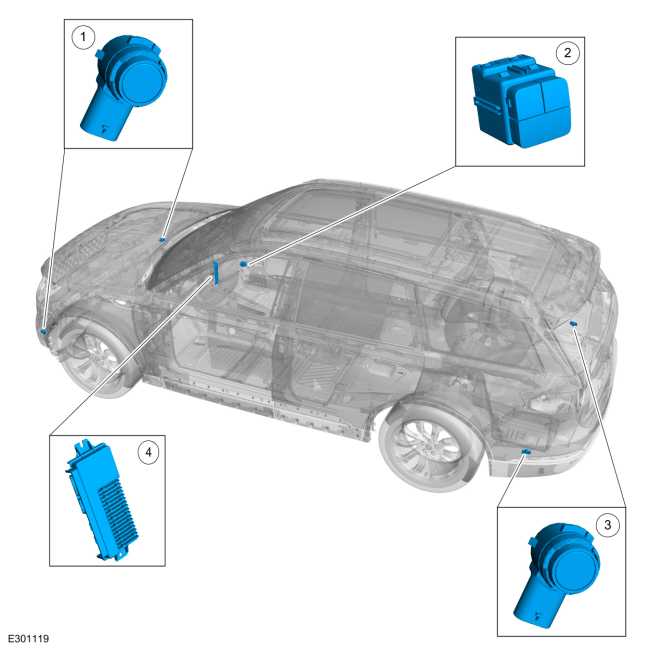

Lincoln Aviator: Parking Aid - Vehicles With: Active Park Assist / Description and Operation - Parking Aid - Component Location

Specifications

..

Description and Operation - Parking Aid - Overview

Overview - Active Park Assist The active park assist system is a full-assisted parking system. The system assists parking into and out (assist out of parking spots only available for parallel parking) of parking spaces...

Other information:

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - External Controls

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   GSM P0562:00 System Voltage Low: No Sub Type Information   GO to Pinpoint Test B   GSM P0563:00 System Voltage High: No Sub Type Information   GO to Pinpoint Test C   GSM P0605:00 Internal Control Module Read Only Memory (ROM) Error: No Sub Type Information   GO to Pinpoint Test L   GSM P0606:00 Control Module Processor: No Sub Type Information   GO to Pinpoint Test L   GSM P0607:00 Control Module Performance: No Sub Type Information   GO to Pinpoint Test L   GSM P06B8:00 Internal Control Module Non-Volatile Random Access Memory (NVRAM) Error: No Sub Type Information   GO to Pinpoint Test L   GSM P07EC:00 Transmission Range Multi-Function Select Circuit: No Sub Type Information   GO to Pinpoint Test J   GSM P07ED:00 Transmission Range Multi-Function Select Circuit Stuck: No Sub Type Information   GO to Pinpoint Test J   GSM P0814:00 Transmission Range Display Circuit: No Sub Type Information   GO to Pinpoint Test I   GSM P164E:00 Internal Control Module Transmission Range Select Performance: No Sub Type Information   GO to Pinpoint Test L   GSM P166B:00 Drivers Door Status Correlation: No Sub Type Information   GO to Pinpoint Test H   GSM U0100:00 Lost Communication With ECM/PCM "A": No Sub Type Information   GO to Pinpoint Test G   GSM U0100:87 Lost Communication With ECM/PCM "A": Missing Message   GO to Pinpoint Test G   GSM U0121:00 Lost Communication With Anti-Lock Brake System (ABS) Control Module "A": No Sub Type Information   GO to Pinpoint Test F   GSM U0140:00 Lost Communication With Body Control Module: No Sub Type Information   GO to Pinpoint Test E   GSM U0155:00 Lost Communication With Instrument Panel Cluster (IPC) Control Module: No Sub Type Information   GO to Pinpoint Test D   GSM U0203:00 Lost Communication With Door Control Module "E": No Sub Type Information   GO to Pinpoint Test H   GSM U0301:00 Software Incompatibility with ECM/PCM: No Sub Type Available   GO to Pinpoint Test M   GSM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test N   GSM U0422:00 Invalid Data Received From Body Control Module: No Sub Type Information   GO to Pinpoint Test N   GSM U0504:00 Invalid Data Received From Door Control Module "E": No Sub Type Information   GO to Pinpoint Test H   GSM U1011:00 Invalid Internal Control Module Monitoring Data Received from ECM/PCM: No Sub Type Information   GO to Pinpoint Test O   GSM U101F:00 Invalid Internal Control Module Monitoring Data Received from ECM/PCM: No Sub Type Information   GO to Pinpoint Test O Global Customer Symptom Code (GCSC) Chart   Global Customer Symptom Code Chart Customer Symptom Action Start/Run/Move > Moving > Paddle Shift > Inoperative   GO to Pinpoint Test K Start/Run/Move > Moving > Gear Selector > Return to Park   GO to Pinpoint Test Q Start/Run/Move > Moving > Gear Selector > Return to Park   GO to Pinpoint Test R Start/Run/Move > Moving > Engagement Quality > Park   GO to Pinpoint Test P Start/Run/Move > Moving > Engagement Quality > Park   GO to Pinpoint Test S Start/Run/Move > Moving > Gear Selector > Progressive Range Selection   GO to Pinpoint Test A Pinpoint Tests PINPOINT TEST A : PROGRESSIVE RANGE SELECTION DOES NOT OPERATE CORRECTLY Refer to Wiring Diagrams Cell 30 for schematic and connector information...

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - Parking Brake

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   ABS B1111:4B Electric Park Brake Enable:Over Temperature   GO to Pinpoint Test F   ABS B1111:53 Electric Park Brake Enable:Deactivated   GO to Pinpoint Test G   ABS B1111:54 Electric Park Brake Enable:Missing Calibration   GO to Pinpoint Test E   ABS C0609:01 Park Brake Switch Circuit:General Electrical Failure   GO to Pinpoint Test B   ABS C0616:9A Park Brake Control Module Control Circuit Performance:Component or System Operating Conditions   GO to Pinpoint Test B   ABS C1034:01 Park Brake:General Electrical Failure   GO to Pinpoint Test B   ABS C1034:07 Park Brake:Mechanical Failures   GO to Pinpoint Test K   ABS C1034:13 Park Brake:Circuit Open   GO to Pinpoint Test B   ABS C1034:25 Park Brake:Signal Shape/Waveform Failure   GO to Pinpoint Test B   ABS C1034:2F Park Brake:Signal Erratic   GO to Pinpoint Test B   ABS C1034:47 Park Brake:Watchdog/Safety µC Failure   GO to Pinpoint Test B   ABS C1034:48 Park Brake:Supervision Software Failure   GO to Pinpoint Test B   ABS C1034:57 Park Brake:Invalid/Incompatible Software Component   GO to Pinpoint Test B   ABS C1034:71 Park Brake:Actuator Stuck   GO to Pinpoint Test C   ABS C1034:77 Park Brake:Commanded Position Not Reachable   GO to Pinpoint Test C   ABS C1034:78 Park Brake:Alignment Or Adjustment Incorrect   GO to Pinpoint Test H   ABS C1034:97 Park Brake:Component or System Operation Obstructed or Blocked   GO to Pinpoint Test D   ABS C1A43:98 Motor Supply:Component or System Over Temperature   GO to Pinpoint Test D   ABS C2005:18 Right Actuator:Circuit Current Below Threshold   GO to Pinpoint Test D   ABS C2005:19 Right Actuator:Circuit Current Above Threshold   GO to Pinpoint Test D   ABS C2005:77 Right Actuator:Commanded Position Not Reachable   GO to Pinpoint Test C   ABS C2005:78 Right Actuator:Alignment Or Adjustment Incorrect   GO to Pinpoint Test A   ABS C2006:18 Left Actuator:Circuit Current Below Threshold   GO to Pinpoint Test D   ABS C2006:19 Left Actuator:Circuit Current Above Threshold   GO to Pinpoint Test D   ABS C2006:77 Left Actuator:Commanded Position Not Reachable   GO to Pinpoint Test C   ABS C2006:78 Left Actuator:Alignment Or Adjustment Incorrect   GO to Pinpoint Test A   ABS C2007:13 Right Motor:Circuit Open   GO to Pinpoint Test D   ABS C2007:1C Right Motor:Circuit Voltage Out Of Range   GO to Pinpoint Test D   ABS C2007:92 Right Motor:Performance Or Incorrect Operation   GO to Pinpoint Test D   ABS C2008:13 Left Motor:Circuit Open   GO to Pinpoint Test D   ABS C2008:1C Left Motor:Circuit Voltage Out Of Range   GO to Pinpoint Test D   ABS C2008:92 Left Motor:Performance Or Incorrect Operation   GO to Pinpoint Test D   ABS U2002:00 Switch:No Sub Type Information   GO to Pinpoint Test J   ABS U2002:47 Switch:Watchdog/Safety µC Failure   GO to Pinpoint Test B Symptom Chart(s) Symptom Chart: Parking Brake and Actuation Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
