Lincoln Aviator: Parking Aid - Vehicles With: Rear Parking Aid / Description and Operation - Parking Aid - System Operation and Component Description

System Operation

Parking Aid - Audible

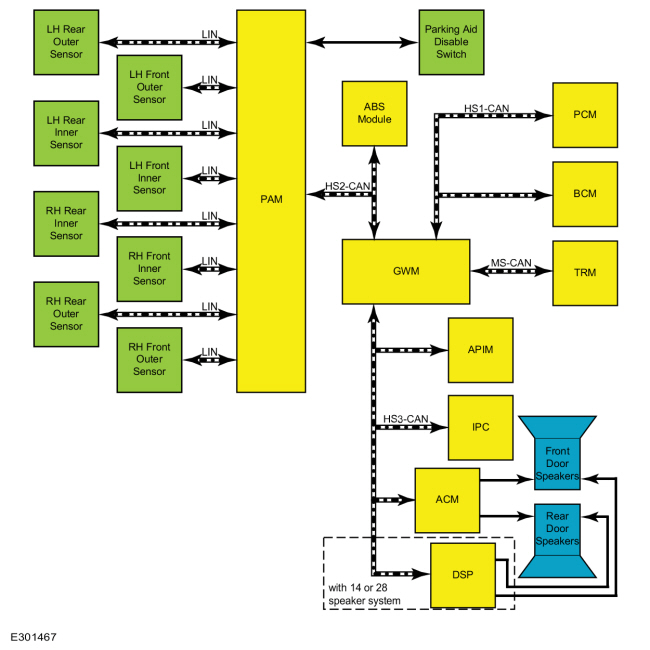

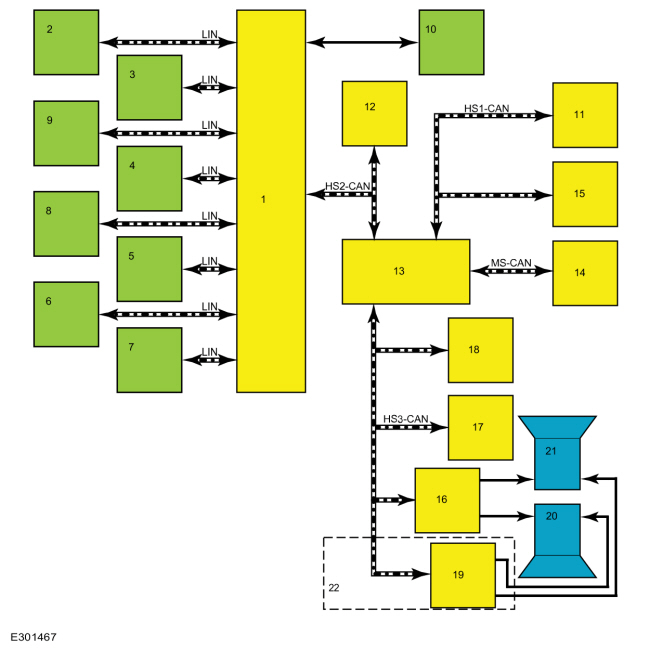

System Diagram - Without 360 Degree View Camera

Item	Description
1	PAM
2	LHR outer sensor
3	LHF outer sensor
4	LHF inner sensor
5	RHF inner sensor
6	RHR outer sensor
7	RHF outer sensor
8	RHR inner sensor
9	LHR inner sensor
10	Parking aid disable switch
11	PCM
12	ABS module
13	GWM
14	TRM
15	BCM
16	ACM
17	IPC
18	APIM
19	DSP
20	Rear door speakers
21	Front door speakers
22	with 14 or 28 speaker system

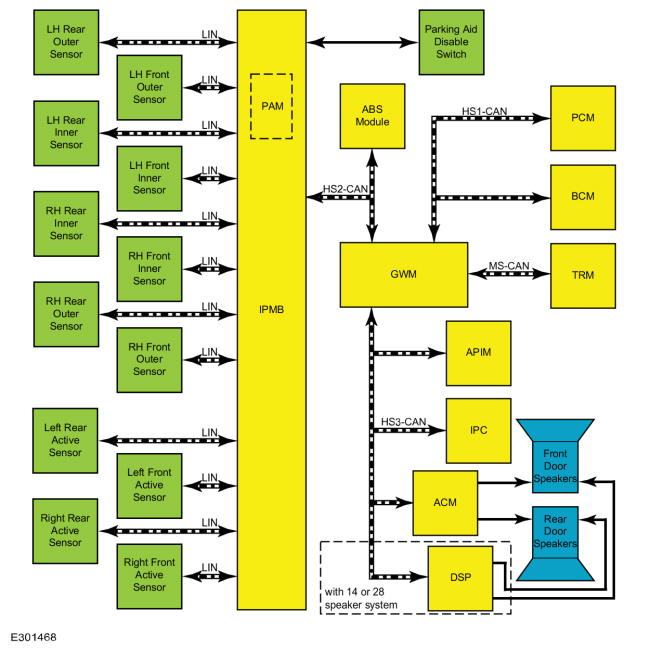

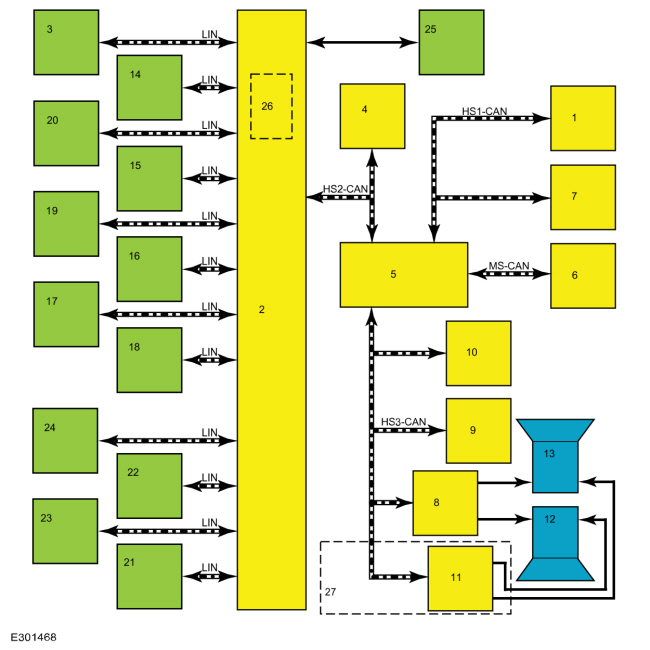

System Diagram - With 360 Degree View Camera

Item	Description
1	PCM
2	IPMB
3	LHR outer sensor
4	ABS module
5	GWM
6	TRM
7	BCM
8	ACM
9	IPC
10	APIM
11	DSP
12	Rear door speakers
13	Front door speakers
14	LHF outer sensor
15	LHF inner sensor
16	RHF inner sensor
17	RHR outer sensor
18	RHF outer sensor
19	RHR inner sensor
20	LHR inner sensor
21	Right front active sensor
22	Left front active sensor
23	Right rear active sensor
24	Left rear active sensor
25	Parking aid disable switch
26	PAM
27	with 14 or 28 speaker system

Network Message Chart

PAM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Gear position	PCM	Enables or disables the front or rear parking aid depending on the gear lever position.
Day/night status	BCM	Light compensates the parking aid sensors.
Ignition key type	BCM	Disables the parking aid switch when a MyKey® restricted key is in use.
Ignition status	BCM	Communicates the ignition switch state.
Outside air temperature	HVAC module	Temperature compensates the parking aid sensors.
Stability-traction control event in progress	ABS module	Disables the active park assist if a stability or traction control system activation occurs.
Stability-traction control indicator request	ABS module	Disables the active park assist if a stability or traction control system fault occurs.
Steering wheel angle	ABS module	Determines the current steering angle.
Trailer lamp connected	TRM	Deactivates the system if a trailer is connected.
Vehicle configuration data	BCM	Determines the vehicle configuration.
Vehicle speed	PCM	Disables the parking aid if the vehicle speed exceeds a preset threshold.
Wheel speed data	ABS module	Confirms vehicle movement and calculate distance traveled during active park assist maneuvers.
Wheel rotation data	ABS module	Confirms wheel rotation during active park assist maneuvers.
Wheel rotation direction	ABS module	Confirms wheel rotation direction during active park assist maneuvers.

IPMB Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Gear position	PCM	Enables or disables the front or rear parking aid depending on the gear lever position.
Day/night status	BCM	Light compensates the parking aid sensors.
Ignition key type	BCM	Disables the parking aid switch when a MyKey® is in use.
Ignition status	BCM	Communicates the ignition switch state.
Outside air temperature	HVAC module	Temperature compensates the parking aid sensors.
Stability-traction control event in progress	ABS module	Disables the active park assist if a stability or traction control system activation occurs.
Stability-traction control indicator request	ABS module	Disables the active park assist if a stability or traction control system fault occurs.
Steering wheel angle	ABS module	Determines the current steering angle.
Trailer lamp connected	TRM	Deactivates the system if a trailer is connected.
Vehicle configuration data	BCM	Determines the vehicle configuration.
Vehicle speed	PCM	Disables the parking aid if the vehicle speed exceeds a preset threshold.
Wheel speed data	ABS module	Used to confirm vehicle movement and calculate distance traveled during active park assist maneuvers.
Wheel rotation data	ABS module	Confirms wheel rotation during active park assist maneuvers.
Wheel rotation direction	ABS module	Confirms wheel rotation direction during active park assist maneuvers.

IPC Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Audio chime status	ACM	Provides audio chime status feedback to the IPC.
Parking aid chime request	PAM or IPMB	Commands parking aid warning tones through the IPC chime arbitrator.
Parking aid fault status	PAM or IPMB	Indicates a parking aid fault.
Parking aid front status	PAM or IPMB	Indicates the status of the front parking aid.
Parking aid rear status	PAM or IPMB	Indicates the status of the rear parking aid.
Parking aid sensor data	PAM or IPMB	Provides data on the parking aid sensors.
Parking aid text message	PAM or IPMB	Provides parking aid information for the message center.

APIM etwork Input Messages

Broadcast Message	Originating Module	Message Purpose
Parking aid chime request	PAM or IPMB	Commands parking aid warning tones through the IPC chime arbitrator.
Parking aid fault status	PAM or IPMB	Indicates a parking aid fault.
Parking aid front status	PAM or IPMB	Indicates the status of the front parking aid.
Parking aid rear status	PAM or IPMB	Indicates the status of the rear parking aid.
Parking aid sensor data	PAM or IPMB	Provides data on the parking aid sensors.
Parking aid text message	PAM or IPMB	Provides parking aid information for the message center.

ACM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
IPC chime request	IPC	The request to turn on the parking aid chime comes in this message.

DSP Network Input Messages

Broadcast Message	Originating Module	Message Purpose
IPC chime request	IPC	The request to turn on the parking aid chime comes in this message.

Audible Parking Aid System Operation

NOTE: Vehicles equipped with the 360 degree view camera have a PAM that is integral to the IPMB. Vehicles without the 360 degree view camera have a standalone PAM.

The rear parking aid system calculates the distance to an object around the rear of the vehicle using 4 ultrasonic sensors. The rear parking aid sensors detect objects approximately 180 cm (70 in) from the rear of the vehicle, 50 cm (20 in) from the rear side of the vehicle, and 30 cm (12 in) above the ground. To detect objects behind the vehicle, the PAM or IPMB supplies voltage and ground to the rear ultrasonic sensors while monitoring a signal return circuit from each sensor. The 4 rear sensors share common voltage and ground circuits.

The front parking aid system calculates the distance to an object around the front of the vehicle using 4 ultrasonic sensors. The front parking aid sensors detect objects approximately 70 cm (27 in) from the front of the vehicle, 50 cm (20 in) from the front side of the vehicle, 30 cm (12 in) above the ground. To detect objects in front of the vehicle, the PAM or IPMB supplies voltage and ground to the front ultrasonic sensors while monitoring a signal return circuit from each sensor. The 4 front sensors share common voltage and ground circuits. Vehicles equipped with active park assist must be equipped with the front parking aid system.

Only objects that reflect a sufficient amount of sound waves are detected by the parking aid sensors. The surface properties, size and composition of an object can affect the ability of the parking aid system to detect the object.

Parking aid operation may be affected by:

Improper sensor installation or alignment
Dirt or ice covered sensors
Heavy rain or snow

The parking aid system detects objects when the vehicle is in any of the following conditions:

REVERSE (rear parking aid).
Motion in any gear except NEUTRAL (front parking aid and side sensing system, if equipped).
Moving toward the object.
Stationary and the object is moving toward the vehicle.
The vehicle and object are both moving toward one another.

The following may trigger false detections when driving at slow/creeping speeds (could be decelerating or accelerating) less than 12 km/h (8 mph), but not at a stop:

Near another vehicle equipped with parking aid sensors. The other vehicle could be several meters away (it does not have to be within the detection zone of the host vehicle).
Near a semi truck or school bus with air brakes (while the bus/truck is applying their brake).
Near another signal with the same frequency.

NOTE: There is no false detection when the vehicle is at a standstill. Even if the sensors are detecting something, the system does not sound a warning when the vehicle is not moving.

As the distance to the obstacle decreases, the indicator blocks illuminate and move toward the vehicle icon as displayed on the audio system display. If there is no obstacle detected, the distance indicator blocks are greyed out.

Side Sensing (If Equipped with Active Park Assist)

The side sensing system calculates the distance to an object around the sides of the vehicle using the four active parking aid sensors used for the active park assist. The side sensors detect objects approximately 60 cm (24 in) from the side of the vehicle. A chime sounds when an object is approximately 30 cm (12 in) from the side of the vehicle. To detect objects on the sides of the vehicle, the PAM or IPMB supplies voltage and ground to the front ultrasonic sensors while monitoring a signal return circuit from each sensor. The 2 front side sensors share common voltage and ground circuits with the front parking aid sensors. The 2 rear side sensors share common voltage and ground circuits with the rear parking aid sensors.

Parking Aid Audible Alert

Audio system volume is automatically reduced when a parking aid alert tone is sounded. The alert tone frequency increases as the vehicle gets closer to an obstacle. When an object is detected within 30 cm (12 in) of the sensors, the warning tone becomes continuous. When the vehicle stops moving the continuous tone stops after 3 seconds until the vehicle moves again. Objects detected outside the continuous tone area to the side of the vehicle generate a warning tone for 3 seconds. The warning tones are prioritized to the closest object. If the front and rear objects are located the same distance from the vehicle, the rear object is prioritized.

Component Description

IPMB (With 360 Degree View Camera)

The IPMB calculates and reports (via audio system tones) the distance between the front or rear bumper of the vehicle and an object. The IPMB requires a PMI when replaced.

Parking Aid Sensors

NOTE: The operating temperature range for the parking aid sensors is -40°C (-40°F) to 85°C (176°F).

The parking aid sensors are wide beam ultrasonic sensors. The sensors continuously send out ultrasonic signals to detect objects and communicate the information back to the PAM or IPMB.

Only objects which reflect enough sound waves are detected by the sensors. This varies due to the shape, surface properties and size of objects being detected. Incorrect sensor alignment, dirt covered sensors, heavy rain or snow can cause objects not to be recognized.

PAM (Without 360 Degree View Camera)

The PAM calculates and reports (via audio system tones) the distance between the front or rear bumper of the vehicle and an object. The PAM is integral to the BCM and requires PMI when replaced.

Parking Aid Switch

The parking aid system is enabled or disabled using the parking aid switch. The parking aid system is only disabled for one key cycle. The parking aid system is enabled by default and cannot be disabled when a MyKey® restricted key is in use.
