Lincoln Aviator 2020-2024 Service Manual / Chassis / Brake System / Parking Brake and Actuation / Description and Operation - Parking Brake - Component Location

Lincoln Aviator: Parking Brake and Actuation / Description and Operation - Parking Brake - Component Location

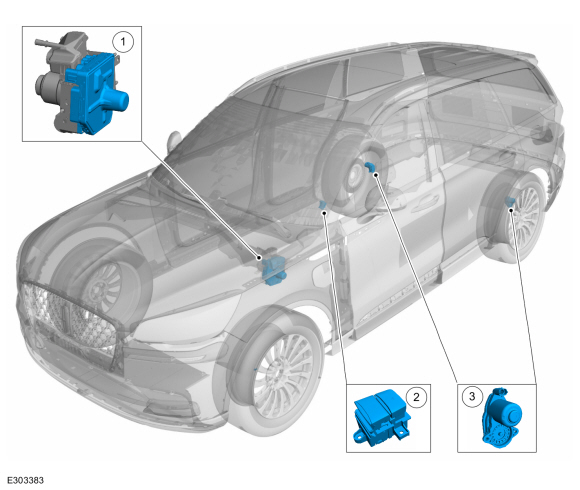

Item Description
1 ABS module
2 Parking brake switch
3 Parking brake actuator motor (2 required)

    Description and Operation - Parking Brake - Overview

    Overview The parking brake system uses 2 switch activated, Electronic Control Unit (ECU) controlled motors to apply and release the rear brake calipers...

    Description and Operation - Parking Brake - System Operation and Component Description

    System Operation System Diagram E338887 *.sttxt { visibility: hidden; } *.stcallout { visibility: visible; } 1 Parking Brake Control Switch 2 LH Parking Brake Actuator Motor 3 RH Parking Brake Actuator Motor 4 PCM 5 GSM 6 RCM 7 BCM 8 GWM 9 IPC 10 ABS HS-CAN 2 HS-CAN 1 FD-CAN HS-CAN 3 Item Description 1 Parking Brake Control Switch 2 LH Parking Brake Actuator Motor 3 RH Parking Brake Actuator Motor 4 PCM 5 GSM 6 RCM 7 BCM 8 GWM 9 IPC 10 ABS Network Message Chart   ABS Module Electronic Parking Brake Network Input Messages Broadcast Message Originating Module Message Purpose Accelerator pedal position   PCM This message is sent to the GWM and then to the ABS module...
