Lincoln Aviator: Transmission Cooling - 10-Speed Automatic Transmission – 10R80 MHT / Description and Operation - Transmission Cooling - Component Location
Transmission Cooling

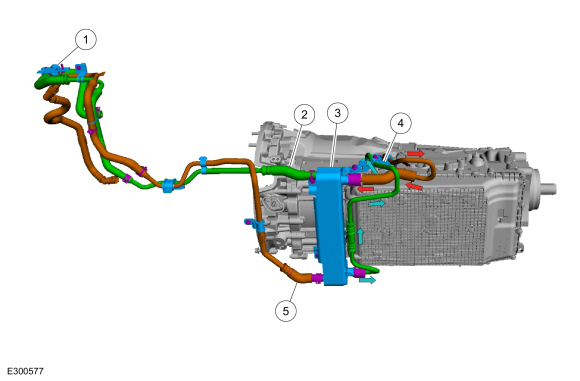

Item |
Description |
1 |
Transmission fluid cooler coolant control valve |
2 |
Transmission fluid cooler coolant outlet tube |
3 |
Transmission fluid cooler |
4 |
Transmission fluid cooler tube assembly |
5 |
Transmission fluid cooler coolant inlet tube |
Transmission Cooling
The
transmission fluid cooling system consists of a heat exchanger mounted
to the transmission. Transmission fluid cooler tubes connect the
transmission to the heat exchanger...
