Lincoln Aviator: Passive Anti-Theft System (PATS) / Removal and Installation - Passive Anti-Theft System (PATS) Center Antenna
Special Tool(s) /
General Equipment
Pick Hook |
Interior Trim Remover |
Removal
NOTE:
Front seats removed for clarity.
-
Remove the FCIMB.
Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).
-

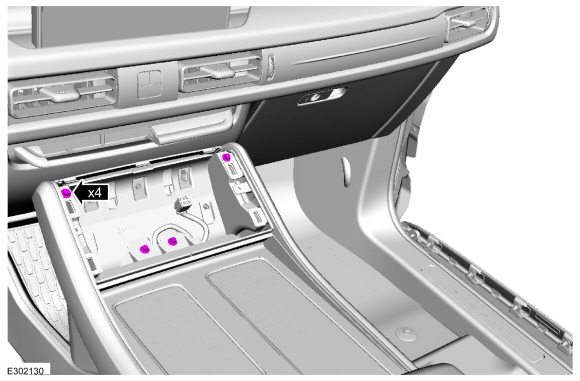

Remove the floor console top panel front bolts.
-
On LH side.

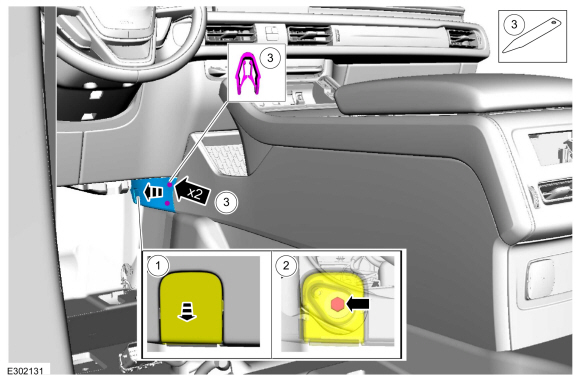

Remove the floor console front lower trim panel.
-
Position the floor console front lower trim panel cover aside.
Use the General Equipment: Pick Hook
-
Remove the floor console front lower trim panel bolt.
-
Release the clips.
Use the General Equipment: Interior Trim Remover
-

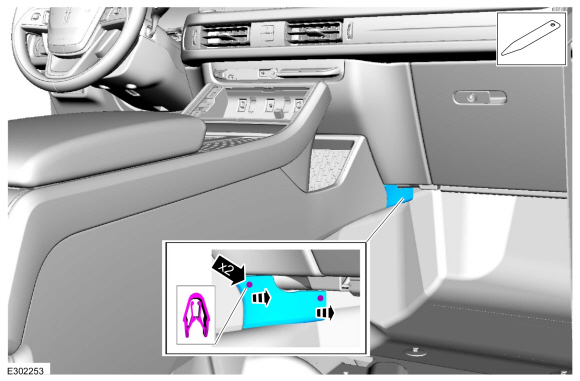

On RH side.
Release the clips and remove the floor console front lower trim panel.
Use the General Equipment: Interior Trim Remover
-
NOTE:
LH (left hand) shown, RH (right hand) similar.
On both sides.

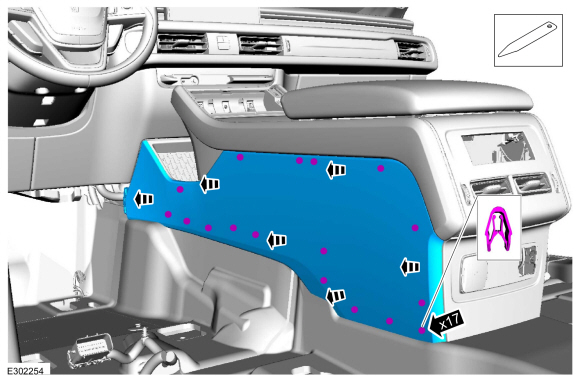

Release the clips and remove the floor console side trim panel.
-
NOTE:
LH (left hand) shown, RH (right hand) similar.
On both sides.

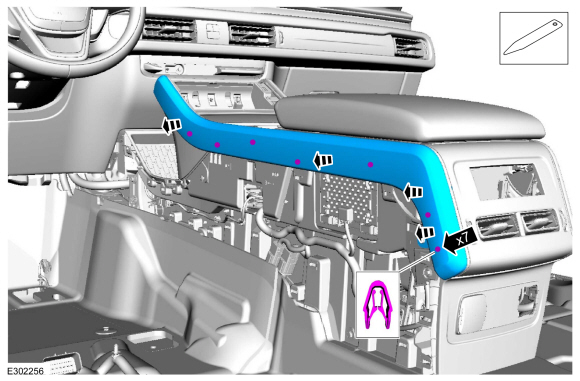

Release the clips and remove the floor console upper trim panel.
Use the General Equipment: Interior Trim Remover
-

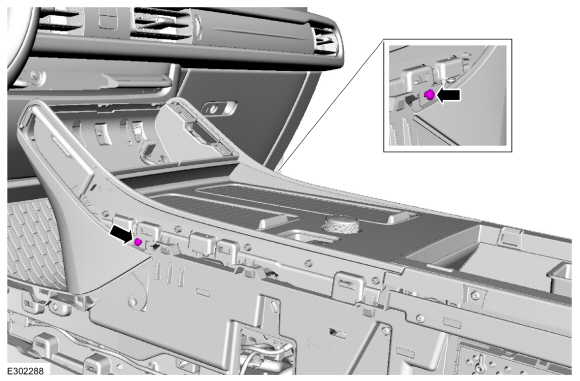

Remove the floor console side screws.
-
Remove the floor console upper trim panel.
-

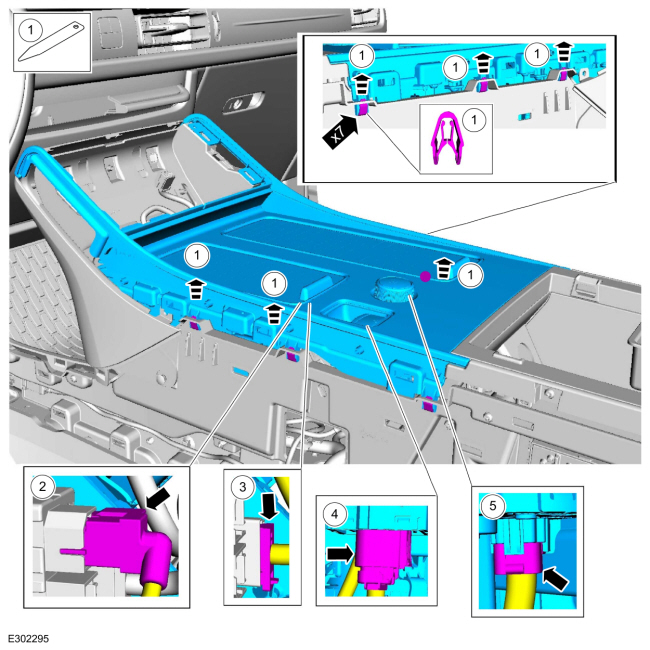

Release the clips.
Use the General Equipment: Interior Trim Remover
-
If equipped.
Disconnect the media hub electrical connector.
-
If equipped.
Disconnect the media hub electrical connector.
-
Disconnect the parking brake switch electrical connector.
-
If equipped.
Disconnect the ATCM electrical connector.
-

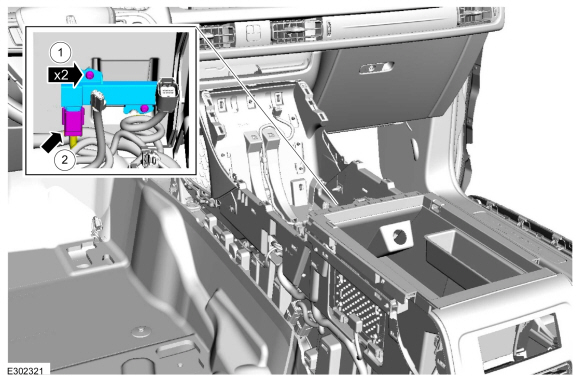

Remove the PATS center antenna.
-
Remove the PATS center antenna screws.
-
Disconnect the PATS center antenna electrical connector.
Installation
-
To install, reverse the removal procedure.
Programming
NOTE:
This procedure works only if the spare key programming is enabled.
NOTE:
Two previously programmed keys are required to perform this
procedure...
