Lincoln Aviator: Bumpers / Disassembly and Assembly - Rear Bumper Cover
DISASSEMBLY
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-
If equipped.

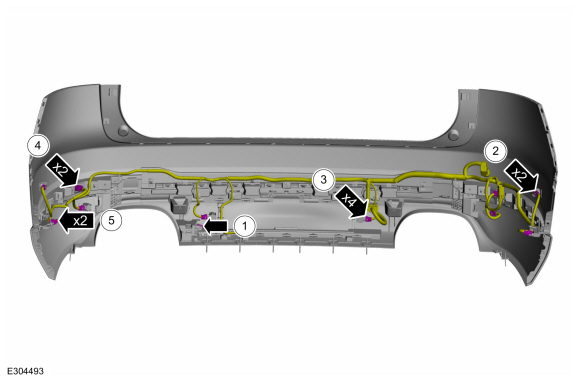

Position the connector shield aside.
-
-
Disconnect the hands-free liftgate module electrical connector.
-
Disconnect the rear active park assist sensor electrical connectors.
-
Disconnect the rear park aid sensor electrical connectors.
-
Disconnect the rear fog lamp electrical connectors.
-
Disconnect the front door keyless entry antenna electrical connectors.
-

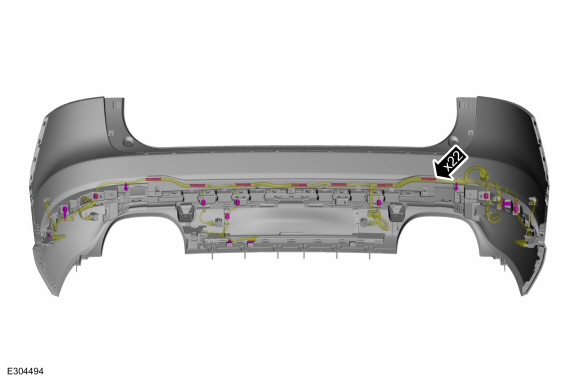

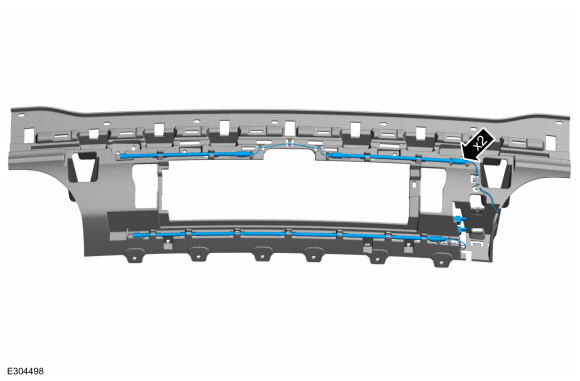

Separate the wiring harness retainers and remove the harness.
-
NOTE:
Make sure that the isolator rings are installed correctly while installing the sensors.
If equipped.

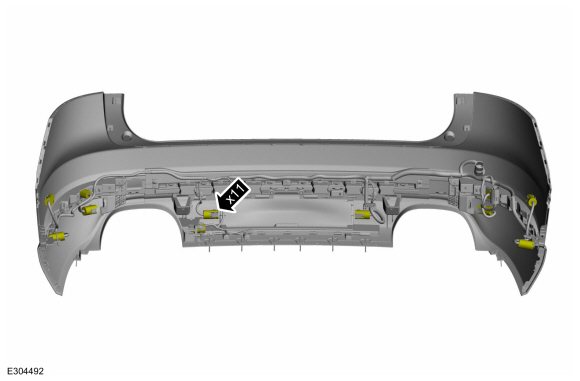

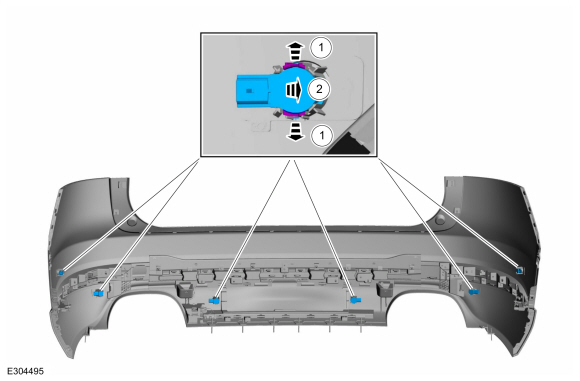

Remove the rear parking aid sensors and rear active park assist sensors.
-
Release the tabs.
-
Remove the rear parking aid sensors and rear active park assist sensors from the bracket.
-

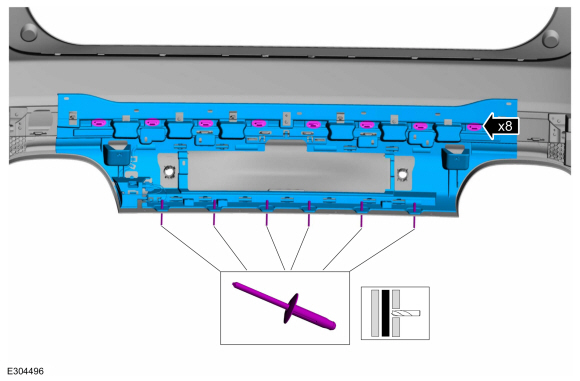

Drill the rivets, release the tabs and remove the rear bumper cover reinforcement.
-
If equipped.

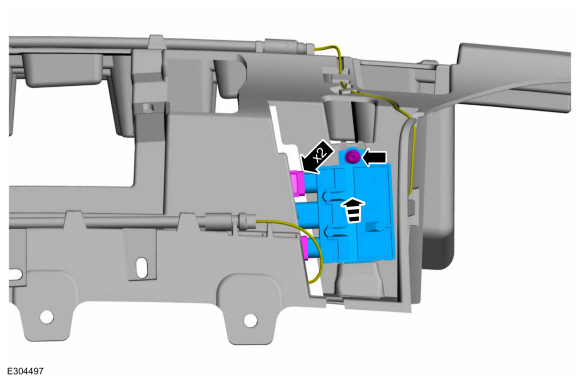

Disconnect the electrical connectors, remove the screw and remove the hands-free liftgate module.
-
If equipped.
Remove the hands-free liftgate antennas.
-
On both sides.

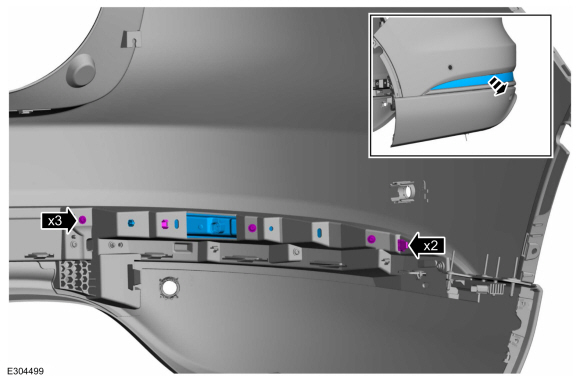

Remove the screws, release the tabs and remove the rear reflector or the rear fog lamp assembly.
-
On both sides.

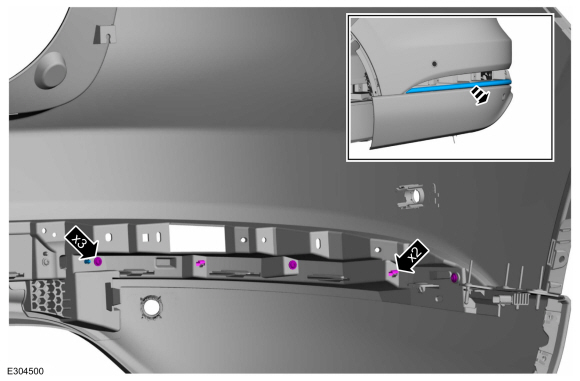

Remove the screws, release the tabs and remove the rear bumper moulding.
-
On both sides.
Remove the screws, release the tabs and remove the rear bumper step pad.
-
If equipped.

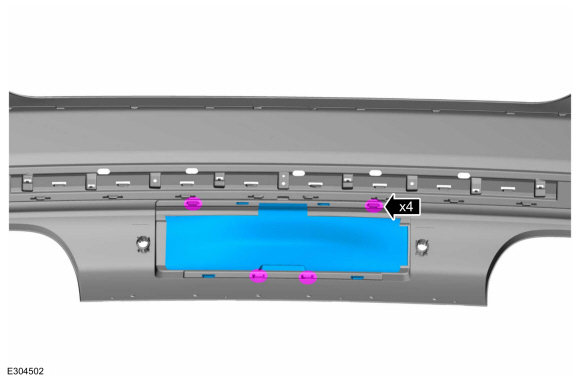

Release the tabs and remove the trailer hitch cover panel.
-
On both sides.

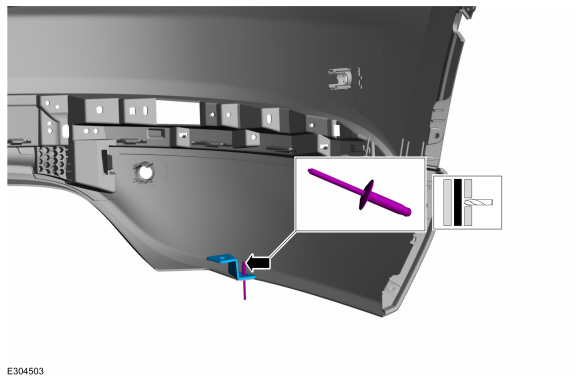

Drill the rivets and remove the exhaust mounting reinforcement bracket.
-
On both sides.

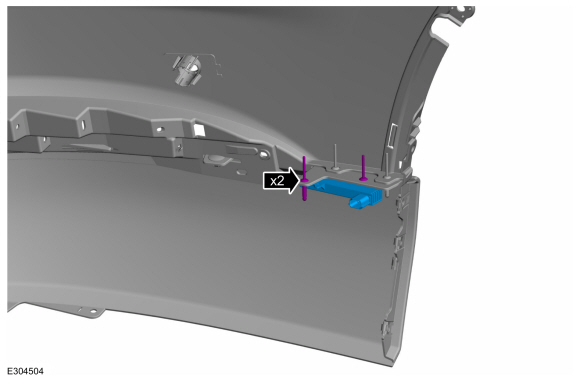

Remove the rivets and remove the front door keyless entry antenna.
-

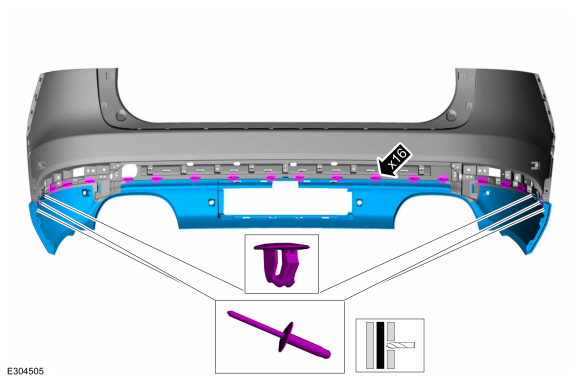

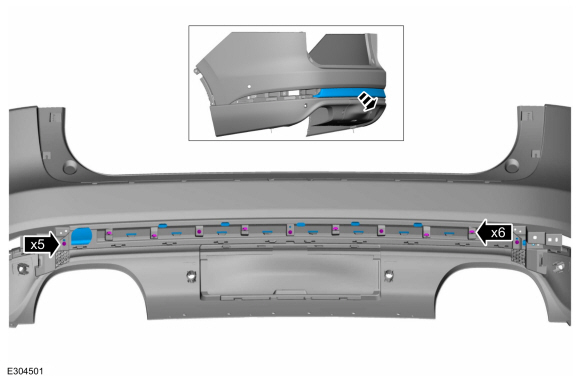

Drill the rivets, remove the clips, release the tabs and remove the lower bumper cover panel.
ASSEMBLY
-
To assemble, reverse the disassembly procedure.
-
If equipped.
Carry out the azimuth and elevation system checks.
Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
-
If equipped.
Carry out the azimuth system check.
Refer to: Azimuth System Check (413-13C Parking Aid - Vehicles With: Active Park Assist, General Procedures).
-
If equipped.
If any sensor fails the check, diagnose the sensor fault.
Refer to: Parking Aid (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Diagnosis and Testing).
-
If equipped.
If any sensor fails the check, diagnose the sensor fault.
Refer to: Parking Aid (413-13C Parking Aid - Vehicles With: Active Park Assist, Diagnosis and Testing).
