Lincoln Aviator: Capacities and Specifications - Plug-In Hybrid Electric Vehicle (PHEV) / Engine Oil
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.

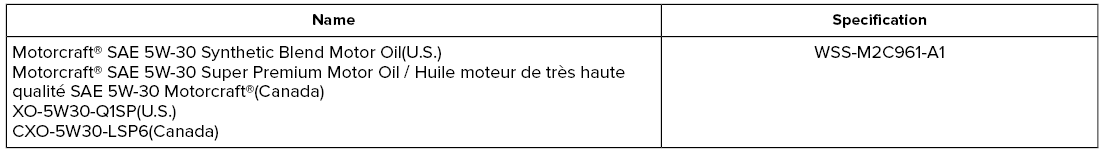

We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SP requirements and display the API Certification Mark for gasoline engines.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that your vehicle warranty does not cover.
Capacities
Materials
Engine Coolant
C..
Alternative Engine Oil for Extremely Cold Climates
To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22...
