Lincoln Aviator: Engine System - General Information / General Procedures - Cylinder Block Distortion

Special Tool(s) / General Equipment

Feeler Gauge

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

  1. NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

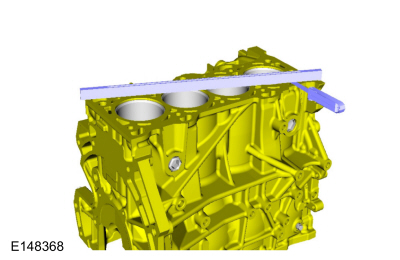

    Use a Straightedge and a Feeler Gauge Set to inspect the cylinder block for flatness.
    Use the General Equipment: Feeler Gauge

    General Procedures - Cylinder Block Core Plug Replacement

    Special Tool(s) / General Equipment 100-001 (T50T-100-A) Slide Hammer Materials Name Specification Motorcraft® Threadlock and SealerTA-25-B -  Repair All core plugs NOTE: Cylinder block core plug shown, cylinder head core plug similar...

    General Procedures - Cylinder Bore Taper

    Check NOTE: Refer to the appropriate Section 303-01 for the specification. Measure the cylinder bore at the top, middle and bottom of piston ring travel in 2 directions as indicated...

    Other information:

    Lincoln Aviator 2020-2025 Service Manual: General Procedures - Clockspring Adjustment


    Special Tool(s) / General Equipment Adhesive Tape   WARNING: If the clockspring is not correctly centralized, it may fail prematurely. If in doubt, repeat the centralizing procedure. Failure to follow these instructions may increase the risk of serious personal injury or death in a crash...

    Lincoln Aviator 2020-2025 Service Manual: Diagnosis and Testing - Glass, Frames and Mechanisms


    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   DDM B1088:83 LIN Bus "B": Value of Signal Protection Calculation Incorrect   GO to Pinpoint Test A   DDM B1088:87 LIN Bus "B": Missing Message   GO to Pinpoint Test A   DDM B1189:77 Front Window Position Sensor: Commanded Position Not Reachable   GO to Pinpoint Test A   DDM B118A:77 Rear Window Position Sensor: Commanded Position Not Reachable   GO to Pinpoint Test C   DDM B118E:01 Left Front Window: General Electrical Failure   GO to Pinpoint Test A   DDM B1190:01 Left Rear Window: General Electrical Failure   GO to Pinpoint Test C   DDM B12DC:01 Front Window Motion/Position Sensor: General Electrical Failure   GO to Pinpoint Test A   DDM B12DC:92 Front Window Motion/Position Sensor: Performance or Incorrect Operation   GO to Pinpoint Test A   DDM B12DD:01 Rear Window Motion/Position Sensor: General Electrical Failure   GO to Pinpoint Test C   DDM B12DD:92 Rear Window Motion/Position Sensor: Performance or Incorrect Operation   GO to Pinpoint Test C   DDM B12E9:23 Rear Window Local Up/Down Switch: Signal Stuck Low   GO to Pinpoint Test C   DDM B13F0:01 Left Rear Power Window Motor: General Electrical Failure   GO to Pinpoint Test C   DDM B13F0:64 Left Rear Power Window Motor: Signal Plausibility Failure   GO to Pinpoint Test C   DDM B13F1:01 Driver Power Window Motor: General Electrical Failure   GO to Pinpoint Test A   DDM B13F1:64 Driver Power Window Motor: Signal Plausibility Failure   GO to Pinpoint Test A   DDM U2013:24 Switch Pack: Signal Stuck High   GO to Pinpoint Test A   PDM B1189:77 Front Window Position Sensor: Commanded Position Not Reachable   GO to Pinpoint Test B   PDM B118A:77 Rear Window Position Sensor: Commanded Position Not Reachable   GO to Pinpoint Test D   PDM B118F:01 Right Front Window: General Electrical Failure   GO to Pinpoint Test B   PDM B1191:01 Right Rear Window: General Electrical Failure   GO to Pinpoint Test D   PDM B12DC:01 Front Window Motion/Position Sensor: General Electrical Failure   GO to Pinpoint Test B   PDM B12DC:92 Front Window Motion/Position Sensor: Performance or Incorrect Operation   GO to Pinpoint Test B   PDM B12DD:01 Rear Window Motion/Position Sensor: General Electrical Failure   GO to Pinpoint Test D   PDM B12DD:92 Rear Window Motion/Position Sensor: Performance or Incorrect Operation   GO to Pinpoint Test D   PDM B12E9:23 Rear Window Local Up/Down Switch: Signal Stuck Low   GO to Pinpoint Test D   PDM B13E5:23 Passenger Power Window Switch Up: Signal Stuck Low   GO to Pinpoint Test B   PDM B13E6:23 Passenger Power Window Switch Down: Signal Stuck Low   GO to Pinpoint Test B   PDM B13EF:01 Right Rear Power Window Motor: General Electrical Failure   GO to Pinpoint Test D   PDM B13EF:64 Right Rear Power Window Motor: Signal Plausibility Failure   GO to Pinpoint Test D   PDM B13F2:01 Passenger Power Window Motor: General Electrical Failure   GO to Pinpoint Test B   PDM B13F2:64 Passenger Power Window Motor: Signal Plausibility Failure   GO to Pinpoint Test B Symptom Chart(s) Symptom Chart: Glass, Frames and Mechanisms Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
